CHAPTER 5 PICK-UP/FEEDING SYSTEM
5-9 P
2.1.3 Pickup Retry Operation
If the retry sensor (PS19, PS20, PS21, PS22) detects a delay (as caused by wear on the
pickup roller), the machine executes pickup retry operation.
If a delay is detected once again after a retry, the machine will indicate the Jam message
in its control panel.

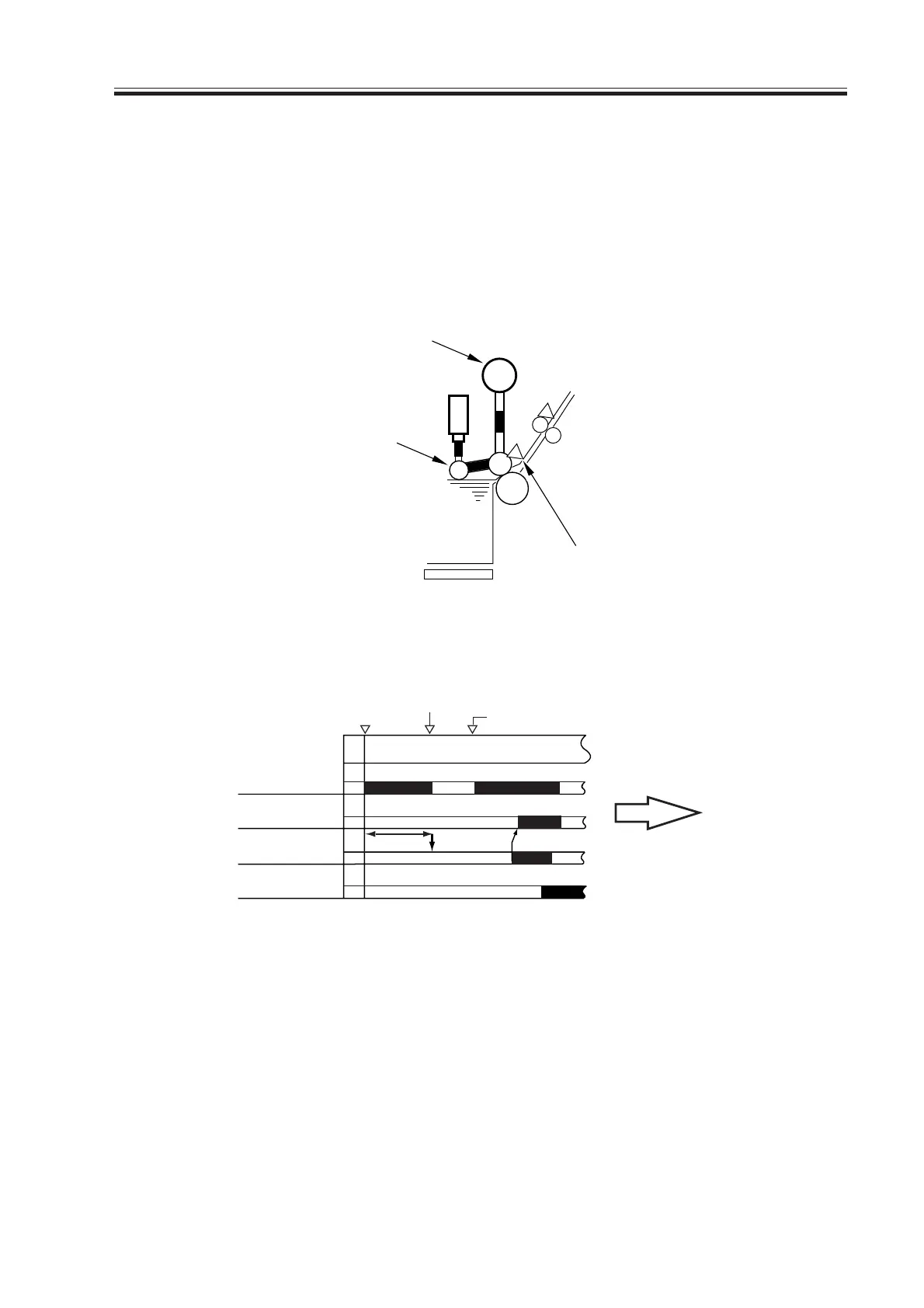

The following is the sequence of retry operations:
F05-201-06
F05-201-05
SL
M
Retry sensor
Pickup motor
Pickup roller
Pickup roller
DOWN solenoid
Pickup roller
Retry sensor
*1
Vertical path
sensor
Retry started
Delay detected
*1 : Period of detection, determined by the clock pulses from the motor.
Thereafter, same as normal
pickup sequence.
Start key ON
