COPYRIGHT
©
2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 3 INSTALLATION
3-12 S
Checks/remarks
Turn the developing cylinder
gear by hand and check to make
sure that the cylinder is free of
scratches.

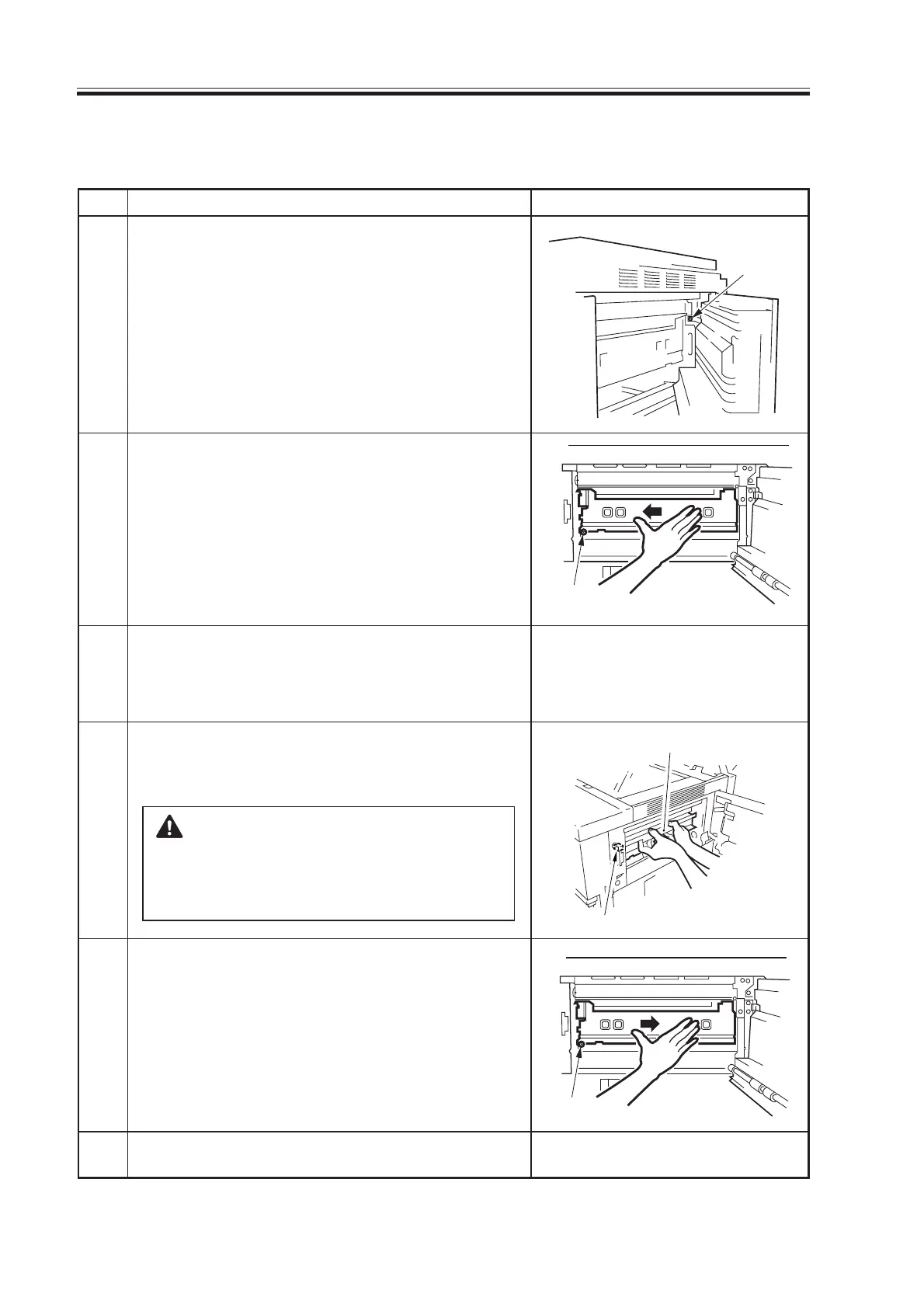

2.7 Mounting the Developing Assembly
Screw
Screw
Connector
Developing assembly
Screw
Step
1
2
3
4
5
6
Work
Open the manual feed tray cover and remove the
screw from the door tape.
Remove the screw and slide the developing as-
sembly locking unit in the direction of the arrow
(rear) to detach.
Take out the developing assembly from the card-
board box.
Hold the developing assembly in the middle
(pocket of the grip) and mount it to the machine.
Connect the connector.
When mounting the developing assem-
bly, take care not to bring the developing
cylinder into contact with the metal plate of
the developing assembly base.
Insert the developing assembly locking unit from
the right side (rear) while making sure to hold it
horizontally.
Secure the developing assembly locking unit in
place with a screw.
Mount the door tape of the manual feed tray
cover with a screw.
