COPYRIGHT
©
2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 5 PICK UP/FEEDING SYSTEM
5-70 P

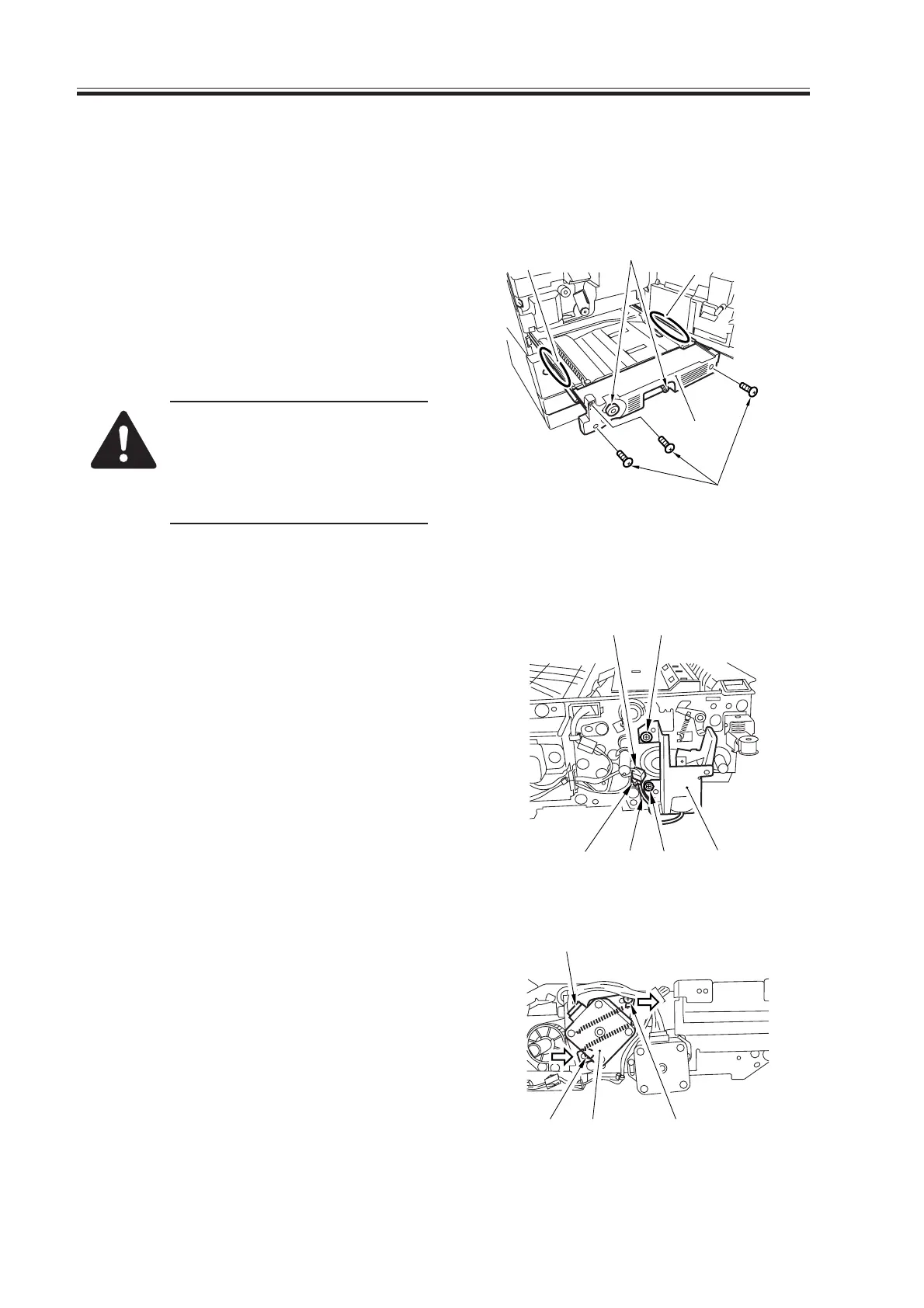

9.6 Duplex Unit
9.6.1 Removing the Duplex Unit
1) Slide the duplex unit out of the ma-
chine.
2) Remove the three screws [1] and two
knobs [2]; then, detach the front cover
[3].
3) Holding the left and right grips [4] of
the duplex unit, take it out of the ma-
chine.
Take care not to trap your hand
between the grip and the rail.
Further, do not place the duplex
unit where it may suffer dam-
age.
F05-906-01
9.6.2 Removing the Reversing Flapper Solenoid
1) Remove the duplex unit from the ma-
chine.
2) Disconnect the connector [1], and free
the harness [3] from the guide [2].
3) Remove the two mounting screws [4],
and detach the reversing flapper sole-
noid [5].
(The steps of installation refer to 9.6.17
“Mounting the Reversing Flapper
solenoid”.)
F05-906-02
9.6.3 Removing the Reversal Motor
1) Remove the front cover of the duplex
unit.
2) Disconnect the connector [1].
3) Remove the three mounting screws [2],
and detach the reversal motor [3] to-
gether with its support plate.
F05-906-03
[1]
[2]
[3]
[4]
[4]
[1]
[2] [3] [4] [5]
[4]
[2] [3] [2]
[1]
