CHAPTER 3 IMAGE PROCESSING SYSTEM
3-3 R
Decrease
Increase
Original
Vertical size plate
Read start position
2.3 Gain Correction and Offset Correction of the CCD Output
To correct discrepancies in the efficiency of photoconversion among pixels, the analog
video signals from the CCD are corrected: in gain correction, the rates of amplification are
standardized; in offset correction, on the other hand, the output voltage in the absence of in-
coming light is set to a specific level.
2.4 A/D Conversion of the CCD Output
The analog video signals of odd-number and even-number pixels after correction are con-
verted into 8-bit digital signals that correspond to specific pixel voltage levels by the A/D
converter.

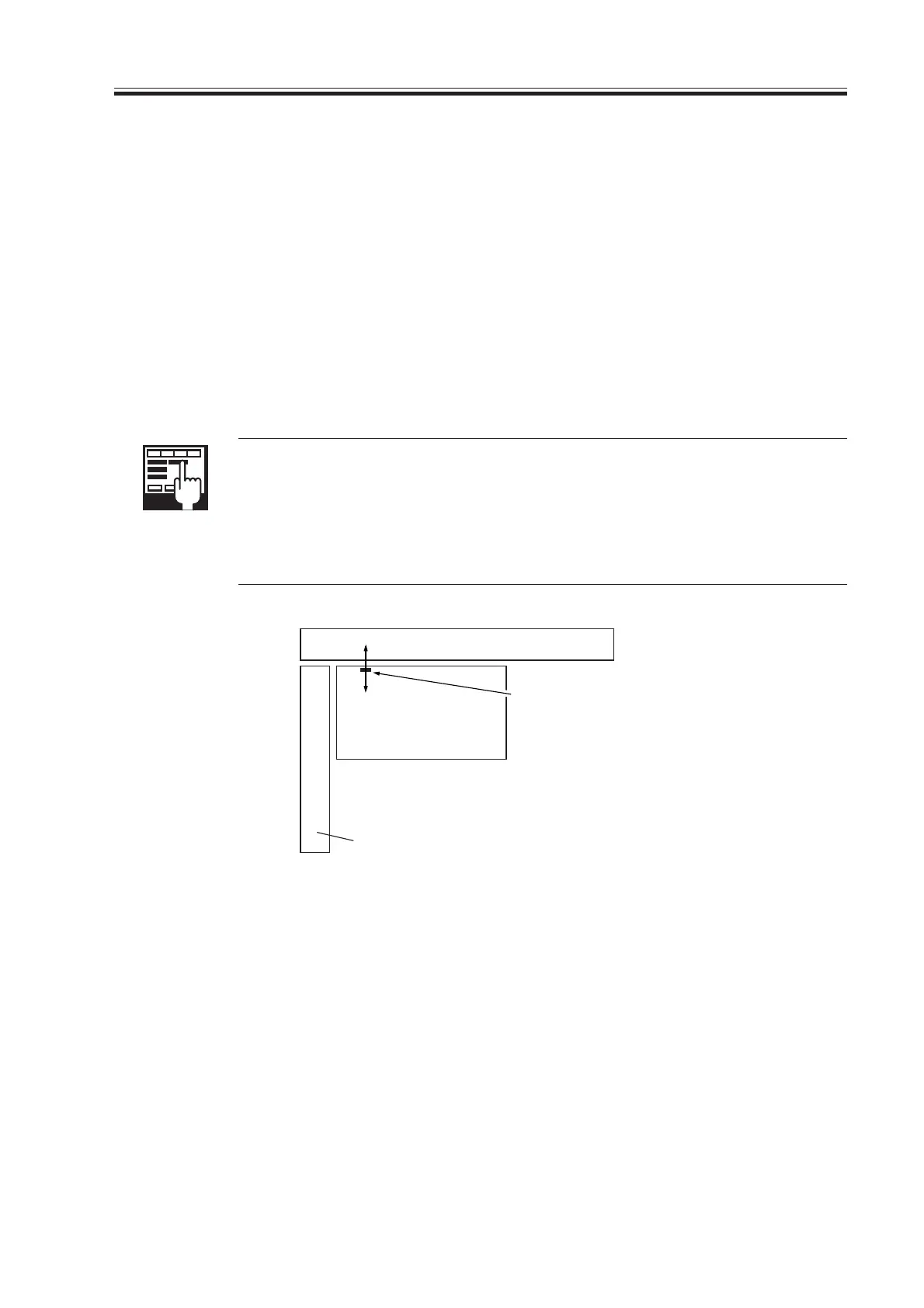

COPIER/ADJUST>ADJ-XY>ADJ-Y (CCD read start position adjust-
ment)
It is used to adjust the parameter used determining the read start position in
main scanning direction.
Range: 0 to 400
(A change by ‘12’ results in a shift of 1 mm.)
F03-205-01
