Canon iR5000 - Left Deck Lifter Drive Assembly

COPYRIGHT © 2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 7 EXTERNALS AND CONTROLS
7-35 P
[2] [1] [3] [1]
[1]

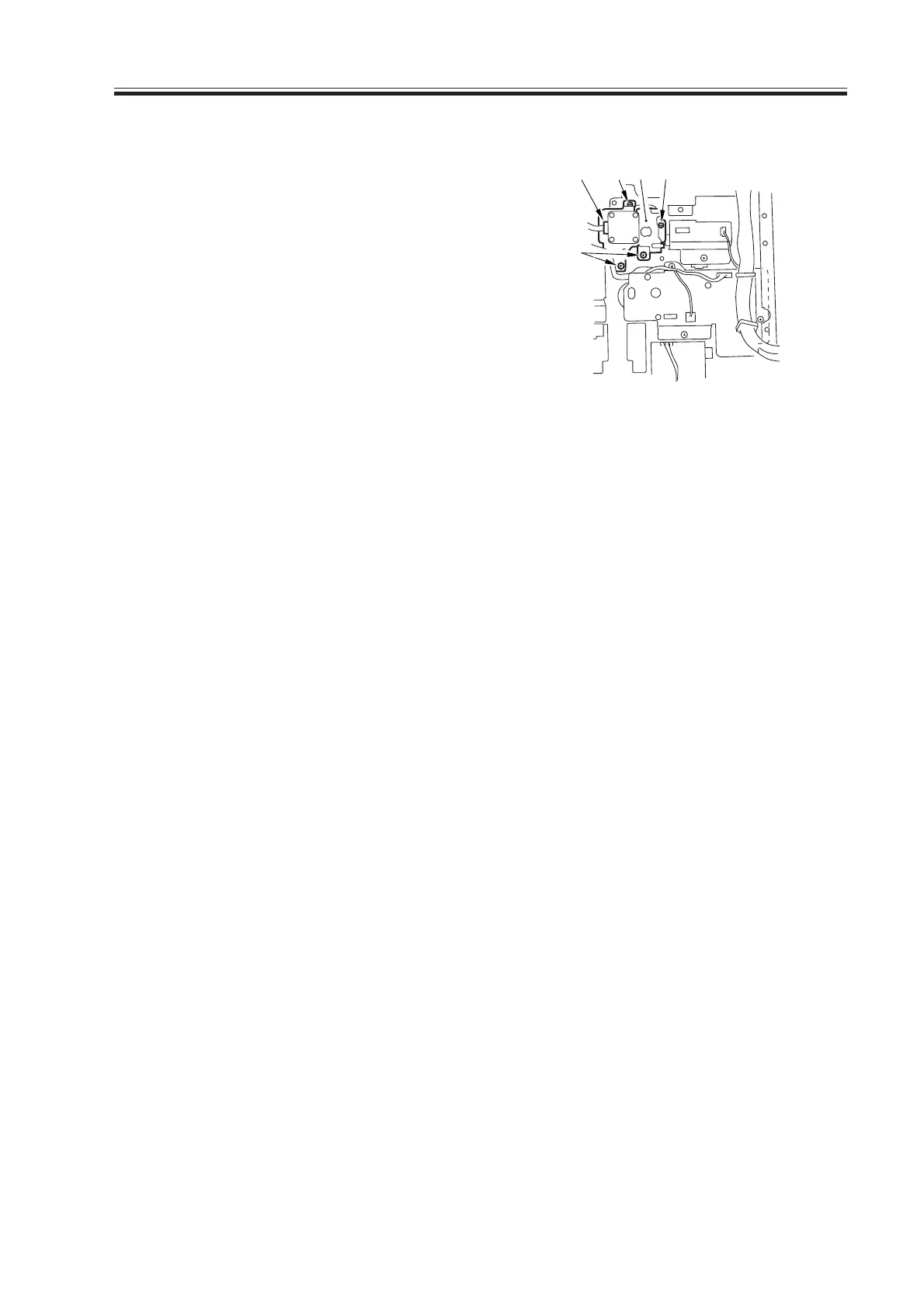

5.6.9 Left Deck Lifter Drive Assembly
1) Remove the high-voltage power supply
PCB.
2) Remove the three screws [1], and dis-
connect the two connectors [2]; then,
detach the left deck lifter drive assem-
bly [3].
F07-506-16
