4. External Covers
4.1 Removing the Reader Front Cover

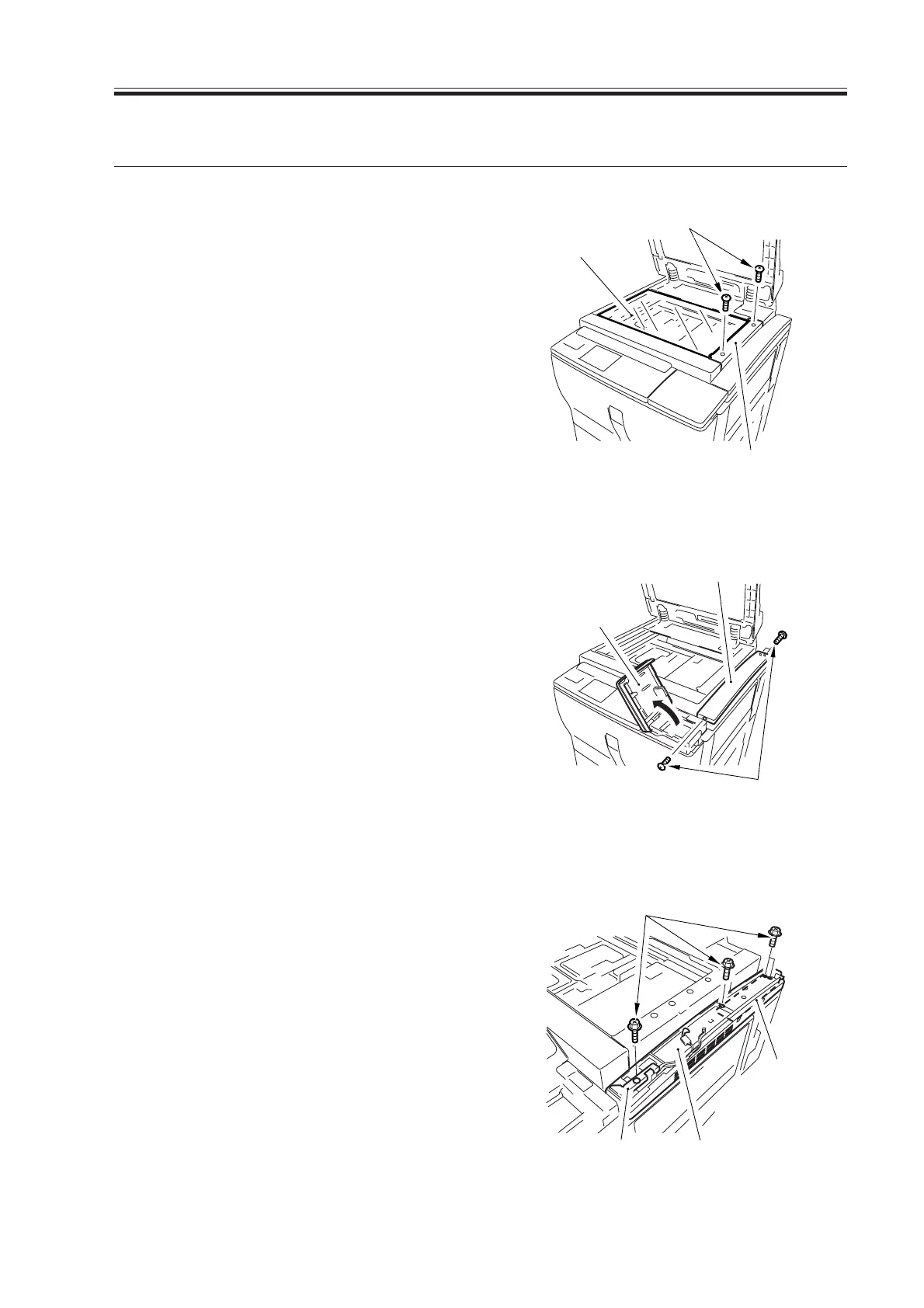

1) Remove the two screws [1], and remove
the reader right cover [2]; then, detach
the copyboard glass [3].
F03-401-01
2) Open the hopper cover [4], and remove
the three screws [5]; then, detach the
right upper cover [6].
F03-401-02
3) Remove the four screws [7], and detach
the right upper cover base [9] together
with the card controller base [9] and the
copyboard base [10].
F03-401-03
