CHAPTER 3 STANDARDS AND ADJUSTMENTS
3-10 T
4.2 Orientation of the Deck/Cassette Separation Roller

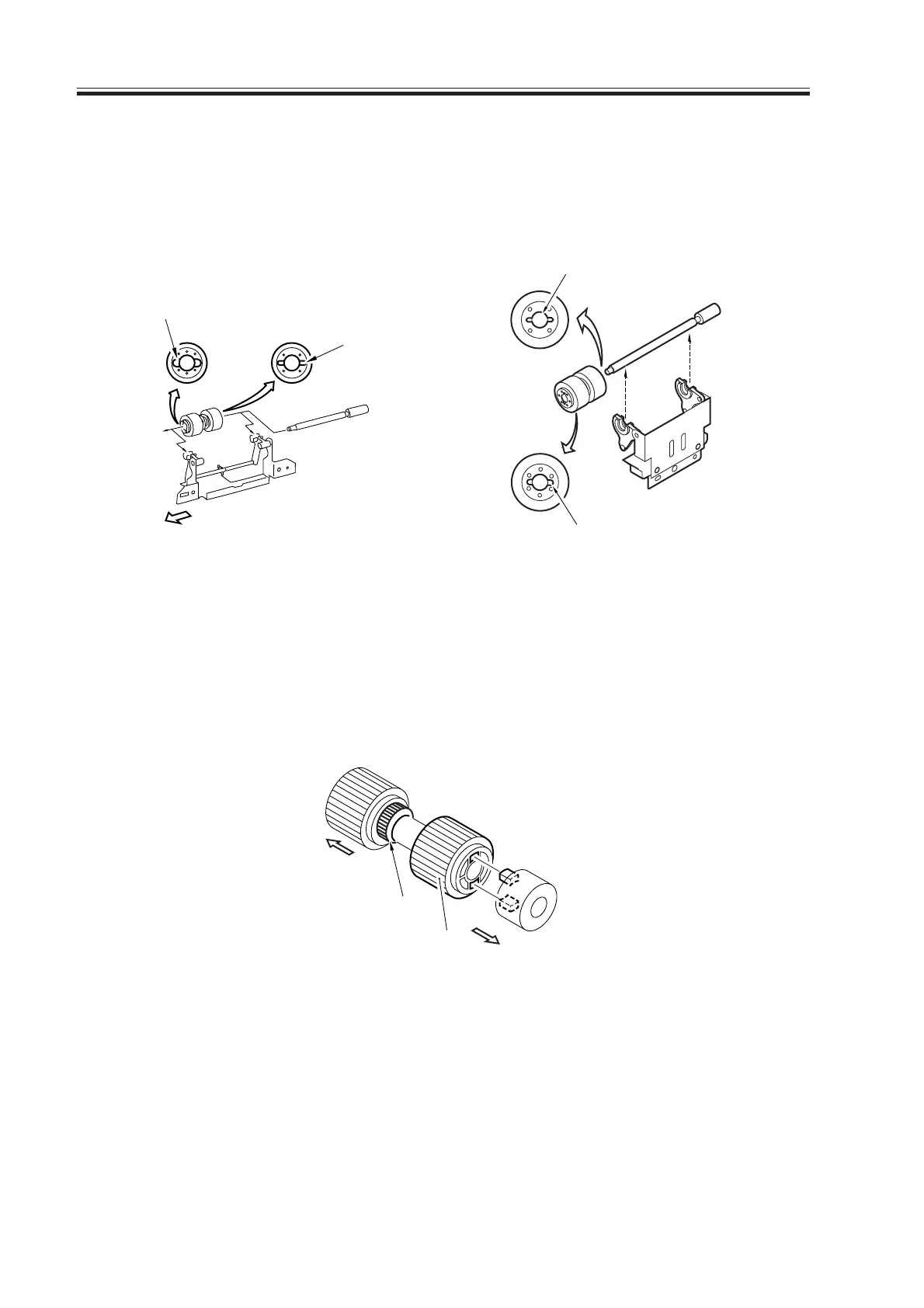

When replacing the separation roller, be sure it is oriented as follows:
Cassette 3/4, Right Pickup Assembly Left Deck Pickup Assembly
F03-402-01
4.3 Orientation of the Feeding Roller of the Deck/Cassette
Pickup Assembly
When mounting the feeding roller assembly of the deck/cassette pickup assembly, be sure
the belt pulley [2] is toward the front of the machine.
F03-403-01
Wider groove
Narrower groove
(front of machine)
(rear of machine)
Wider groove
Narrower groove
[1]
[2]
(rear)
(front)
