7.Others
7.1 Removing the Original Size Sensor
1) Remove the copyboard glass.
2) Move the No. 1 mirror base to the left
end.
3) Remove the screw [1], and disconnect
the connector [2]; then, free the cable
from the cable clamp [3], and detach the
original sensor unit [4].

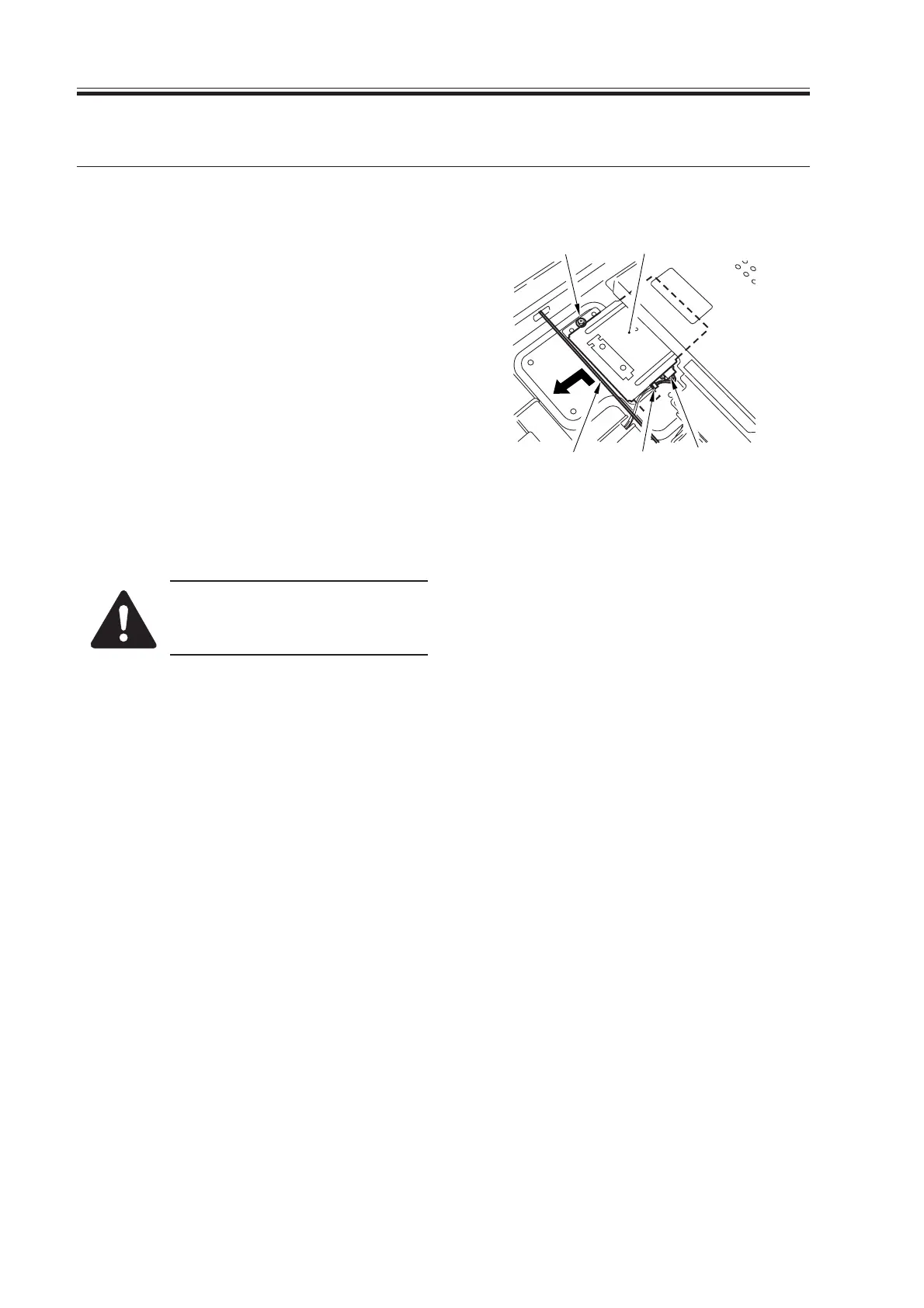

F02-701-01
When removing the original
sensor, take care not to damage
it against the cable [5].
