CHAPTER 3 STANDARDS AND ADJUSTMENTS
3-15 T

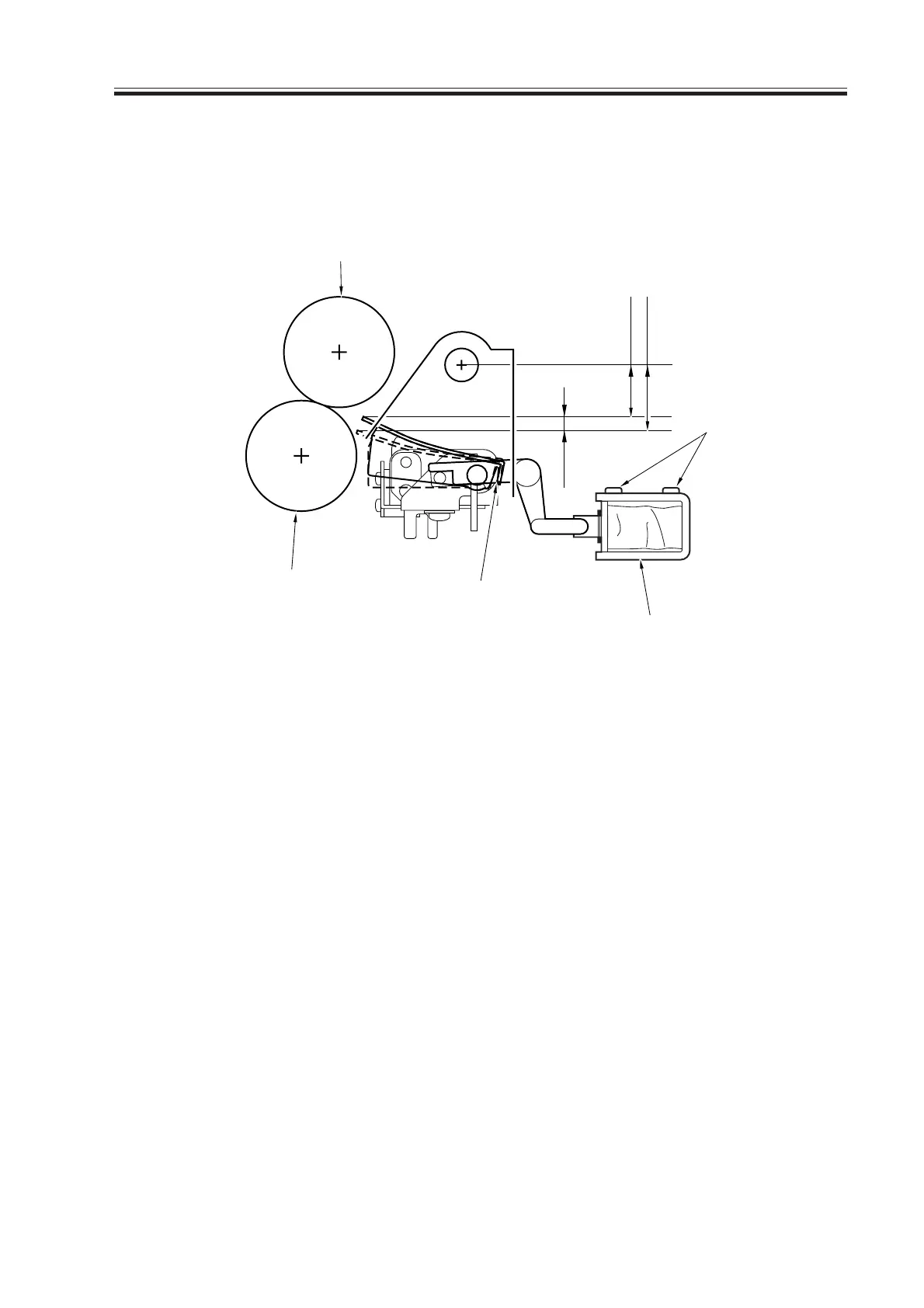

4.8 Adjusting the Fixing Inlet Guide Solenoid (SL1)
Adjust the position of the solenoid using the two screws [1] so that the guide will be posi-
tioned as indicated when the solenoid turns on.
F03-408-01
3.2mm
Upper roller
Lower roller
Solenoid
Inlet guide
9.5mm
12.7mm
[1]
