COPYRIGHT
©
2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 7 EXTERNALS AND CONTROLS
7-20 P
[1] [2][3]
[3][1][4]
[6] [7]
[7][8][6]
[5]

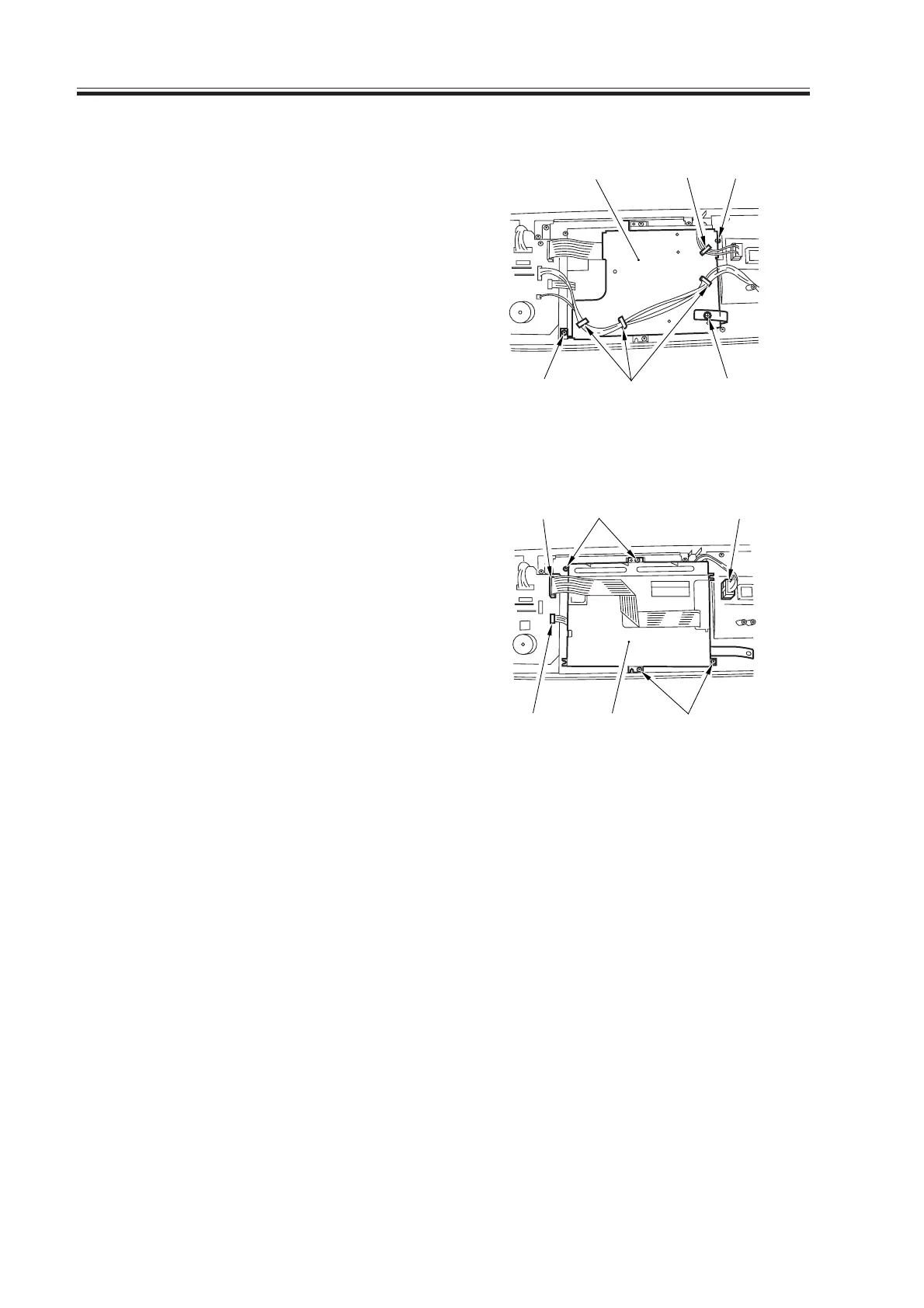

5.3.3 Removing the Touch Panel
1) Perform steps 1) through 3) used to re-
move the control panel control PCB to
detach the control panel shielding plate.
2) Remove the four cable clamps [1], the
grounding screw [2], and the two
screws [3]; then, detach the touch panel
shielding plate [4].
F07-503-07
3) Disconnect the connector [5], and re-
move the two flexible cables [6] and the
four screws [7]; then, detach the touch
panel unit [8].
F07-503-08
