COPYRIGHT
©
2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 4 TROUBLESHOOTING IMAGE FAULTS/MALFUNCTIONS
4-77 T

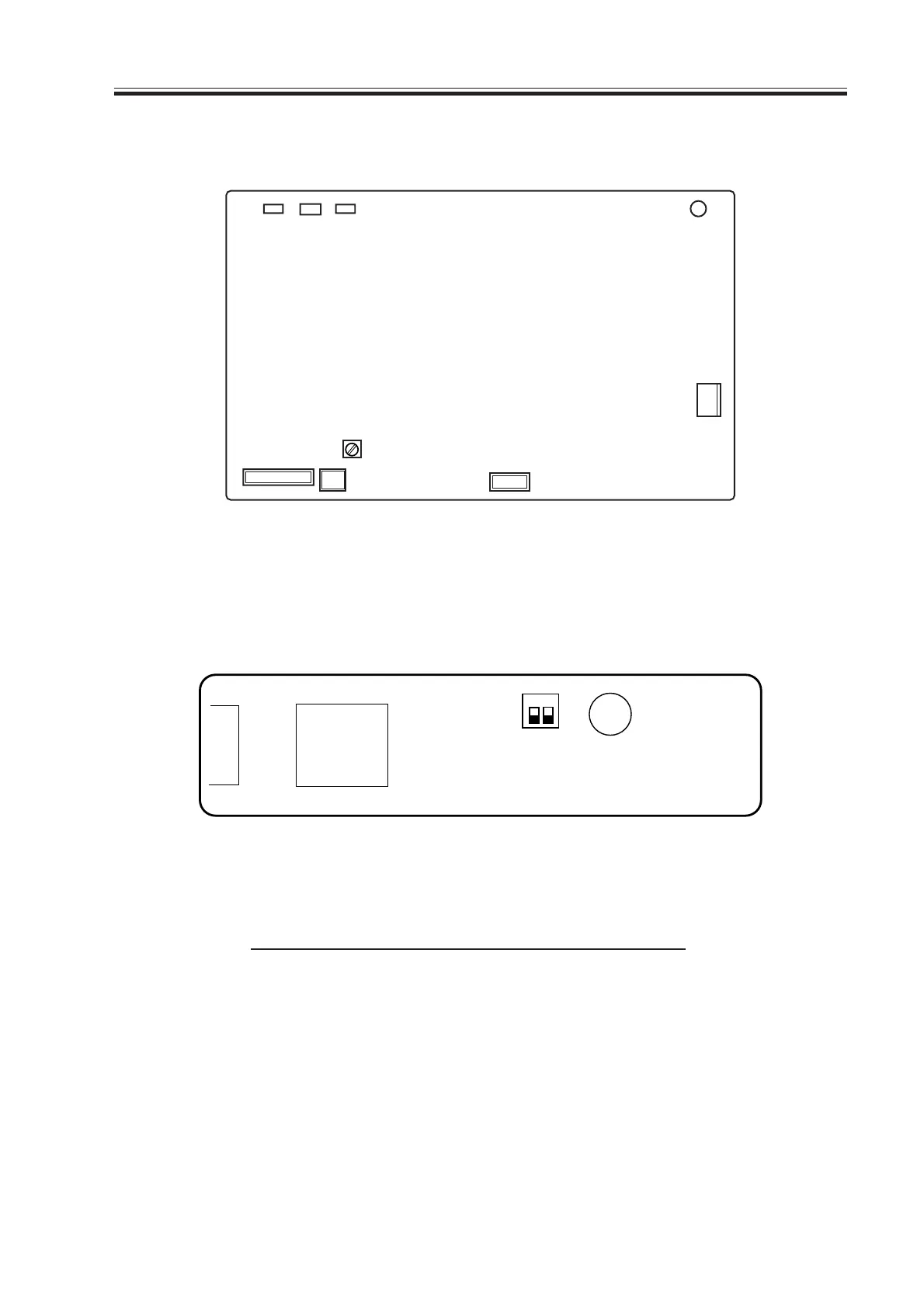

6.8.5 HVT PCB
F04-608-06
6.8.6 Drum Heater Control PCB
F04-608-07
SW2001-1 SW2001-2
ON: controlled to 47°C Not used.
OFF: controlled to 43°C (default) Not used
.
For details of drum heater control, see 6. “Controlling the Drum Heater” in Chapter 4.
J4502
J4501
VR4501
J4503
J4505
J4508
J4507J4506J4504
11312
15
13
SW2001
ON
1 2
J2001
