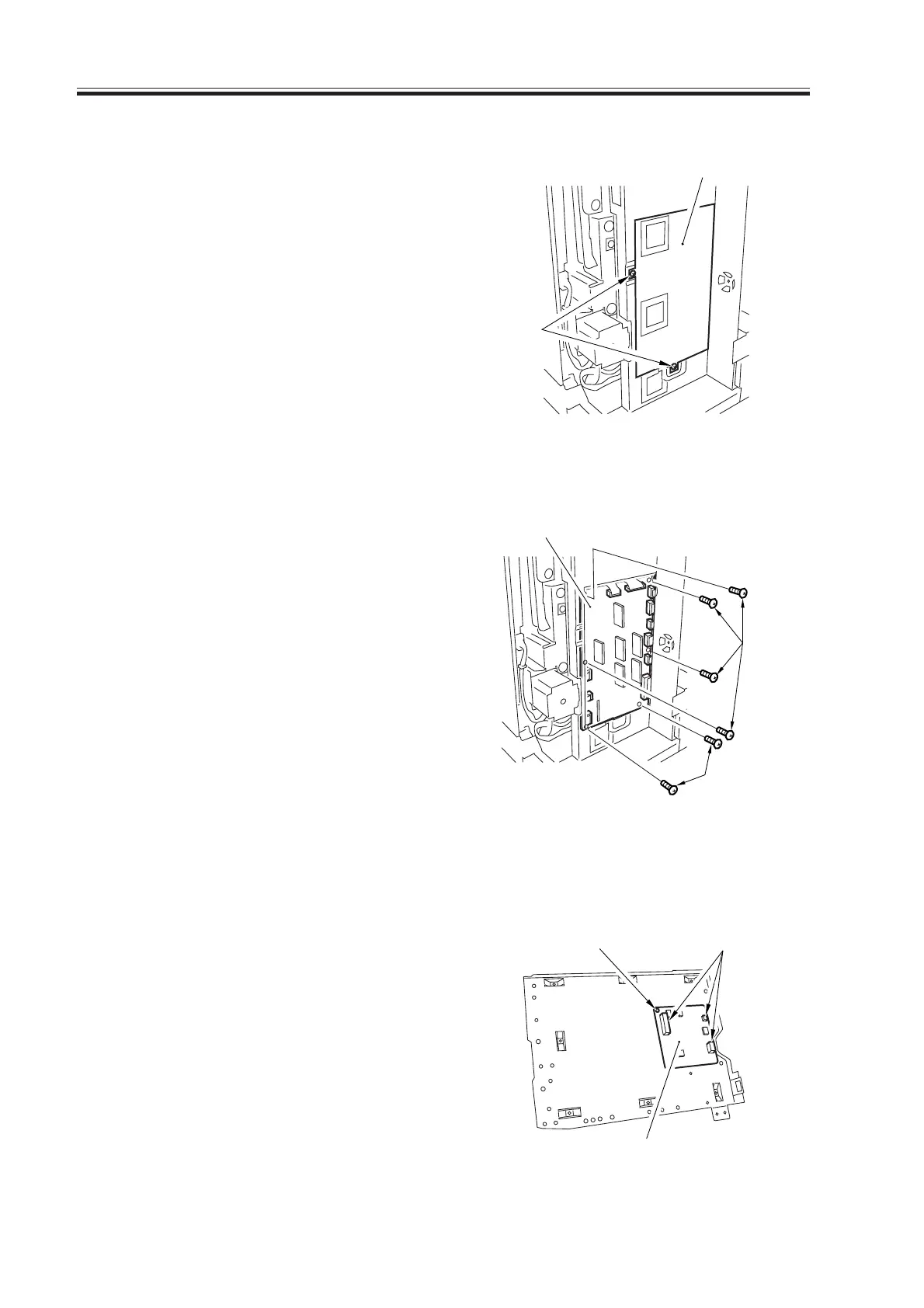

5.4.7 Motor Driver PCB
1) Remove the right rear lower cover/rear
lower cover, and detach the waste toner
bottle.
2) Remove the two screws [1], and detach
the PCB cover [2].
F07-504-13
3) Remove the six screws [3], and discon-
nect the 11 connectors; detach the mo-
tor driver PCB [4].
F07-504-14
5.4.8 Anti-Rush Current PCB
1) Remove the DC controller PCB.
2) Remove the screw [1], and disconnect
the three connectors [2]; then, detach
the anti-rush current PCB [3] from the
printer controller mounting base.
F07-504-15
[1]
[2]
[1]
[3]
[2]
[3]
[3]
[4]
