2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 7 EXTERNALS AND CONTROLS
7-37 P
[1]
[3]
[2]
[4]
[4]
[5]
[6][8]
[6]
[7]
[9]
[11][10][12] [14] [13]
[12]

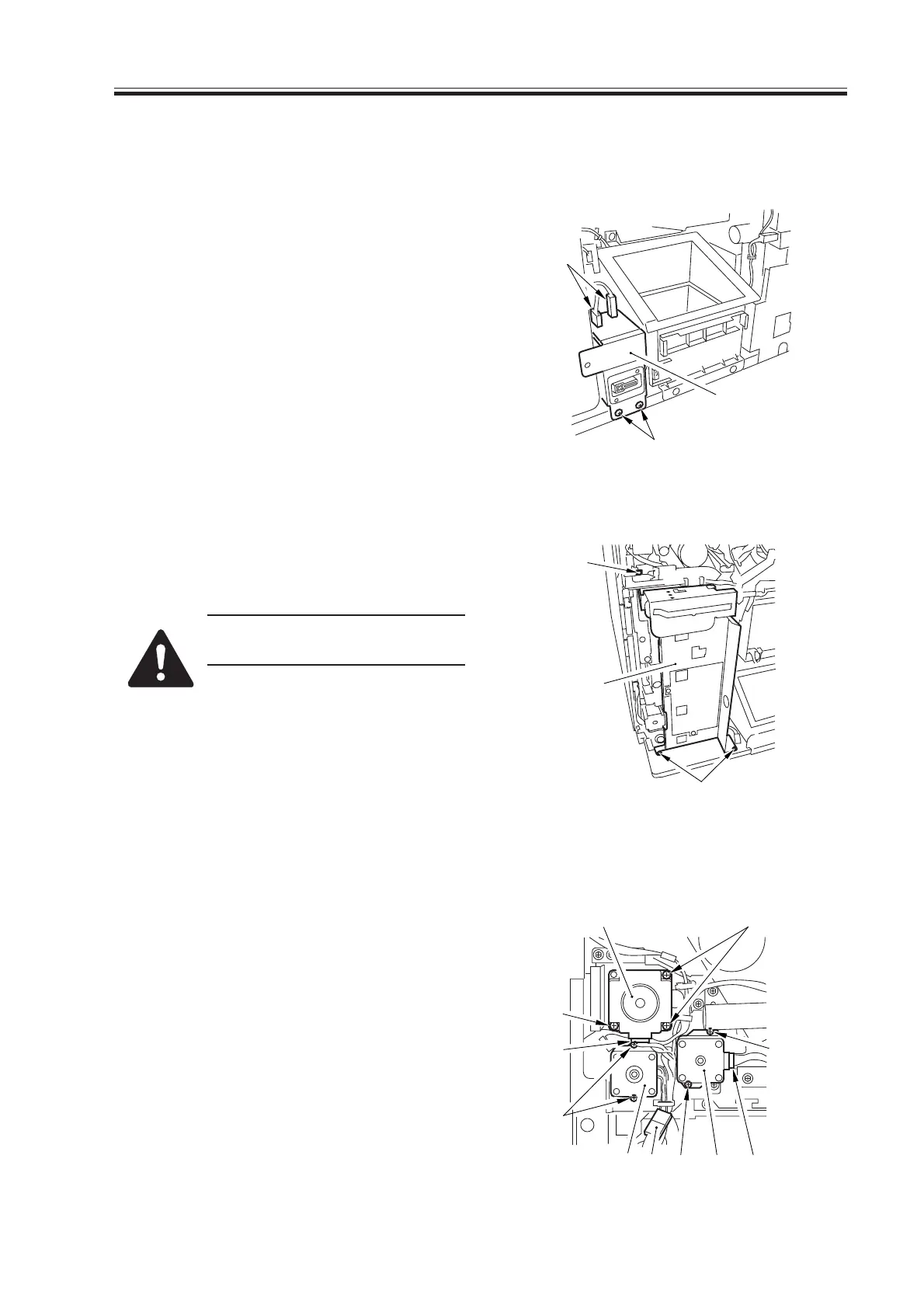

5.7.3 Vertical Path Duplex Motor (M25), Vertical Path Upper Motor (M26),
Deck Right Motor (M11), Lifter Right Motor (M5), and Cassette
Pickup Motor (M12)
1) Remove the main controller box.
2) Remove the right rear lower cover, rear
lower cover, an waste toner bottle.
3) By referring to step 3) for the main mo-
tor, remove the main power switch base
out of the way.
4) Remove the two screws [1], and discon-
nect the two connectors [2]; then, de-
tach the connector base [3].
F07-507-04
5) Remove the three screws [4], and detach
the waste toner bottle holder [5].
Take care not to let the waste
toner go astray.
F07-507-05
6) Remove the three screws [6], and dis-
connect the connector [7]; then, detach
the vertical path duplex motor [8].
7) Remove the two screws [9], an discon-
nect the connector [10]; then, detach the
vertical path upper motor [11].
8) Remove the two screws [12], and dis-
connect the connector [13]; then, detach
the deck right motor [14].
F07-507-06
