CHAPTER 5 PICK UP/FEEDING SYSTEM
5-74 P
4) Disconnect the connector [5], and re-
move the sensor [6].
F05-906-13

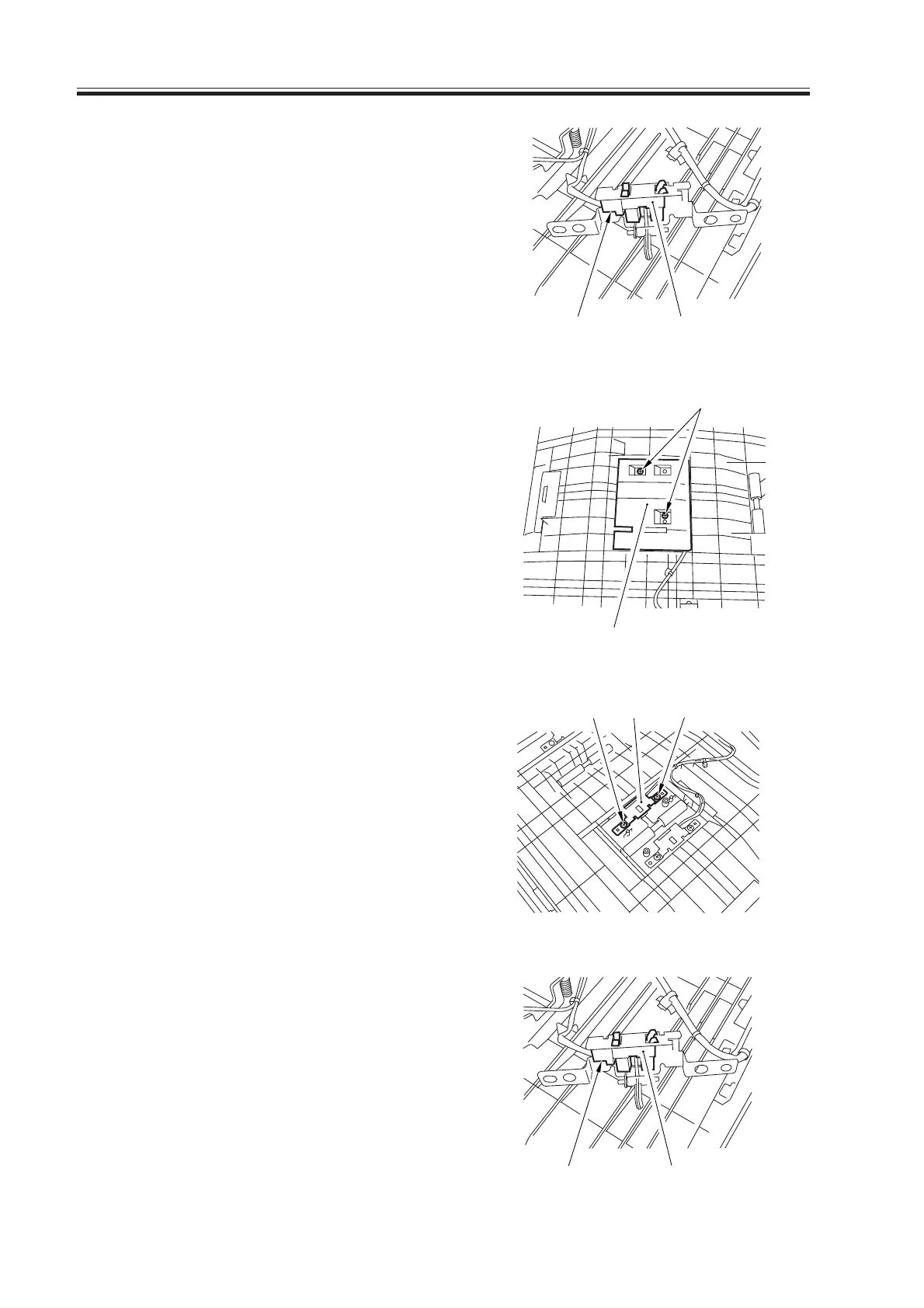

9.6.9 Removing the Duplex Paper Sensor
1) Slide the duplex unit out of the duplex
unit.
2) Remove the two mounting screws [1],
and detach the cover [2].
F05-906-14
3) Remove the two mounting screws [3],
and detach the sensor together with its
base [4].
F05-906-15
4) Disconnect the connector [5], and re-
move the sensor [6].
F05-906-16
[5] [6]
[2]
[1]
[3] [3][4]
[5] [6]
