COPYRIGHT
©
2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 4 IMAGE FORMATION SYSTEM
4-63 P

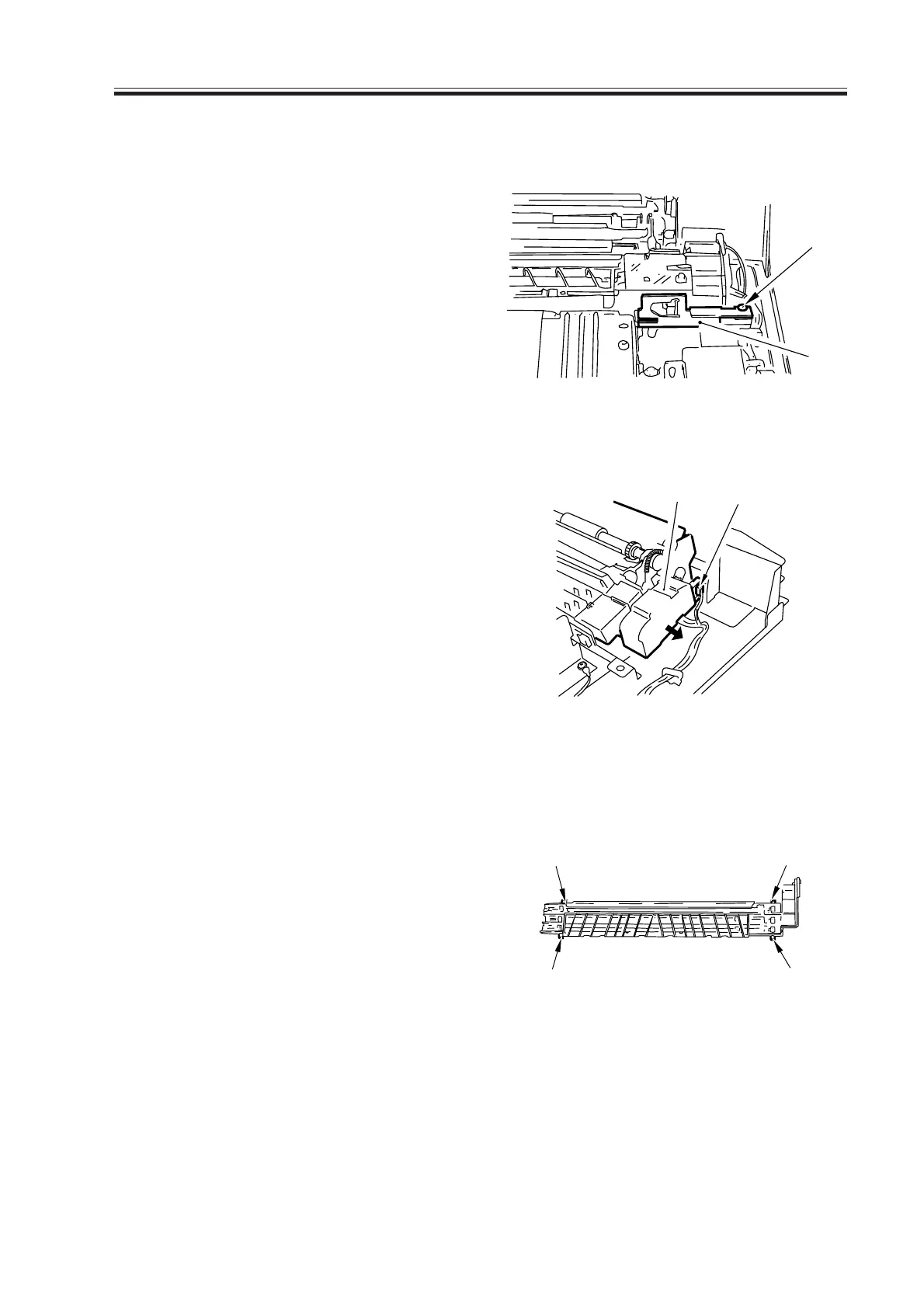

7.7 Transfer/Separation Charging Assembly
7.7.1 Removing the Transfer/Separation Charging Assembly
1) Open the front cover, and slide out the
fixing/feeding unit.
2) Remove the feeding right front cover.
3) Remove the mounting screw [1], and
detach the fixing guide [2].
F04-707-01
4) Disconnect the connector [3], and slide
out the transfer/separation charging as-
sembly [4] to the front; then, detach it
by pulling it up at an angle.
F04-707-02
7.7.2 Mounting the Transfer/Separation Charging Assembly
Mount the transfer/separation charging assembly by reversing the steps used to remove it
while keeping the following in mind.
1) Make sure that the four protrusions [1]
on the transfer/separation charging as-
sembly are correctly fitted into the cut-
offs [2] in the fixing/feeding unit.
F04-707-03
[1]
[2]
[3]
[4]
[1]
[1]
[1]
[1]
