CHAPTER 5 PICK-UP/FEEDING SYSTEM
5-35 P
4.4 Detecting Horizontal Registration Position
4.4.1 Outline
Paper position: detected by the duplexing horizontal registration sensor (PS31).
Detection: started when the duplexing paper sensor (PS34) turns on.
Drive: from the duplexing horizontal registration motor (M16).
Position: measured with reference to pulses from the duplexing horizontal
registration motor (1 pulse = 0.16 mm, approx.).
Related service mode: COPIER>ADJUST>FEED-ADJ>ADJ-REFE
Related error code: E051 (home position not detected within specific time)
T05-404-01

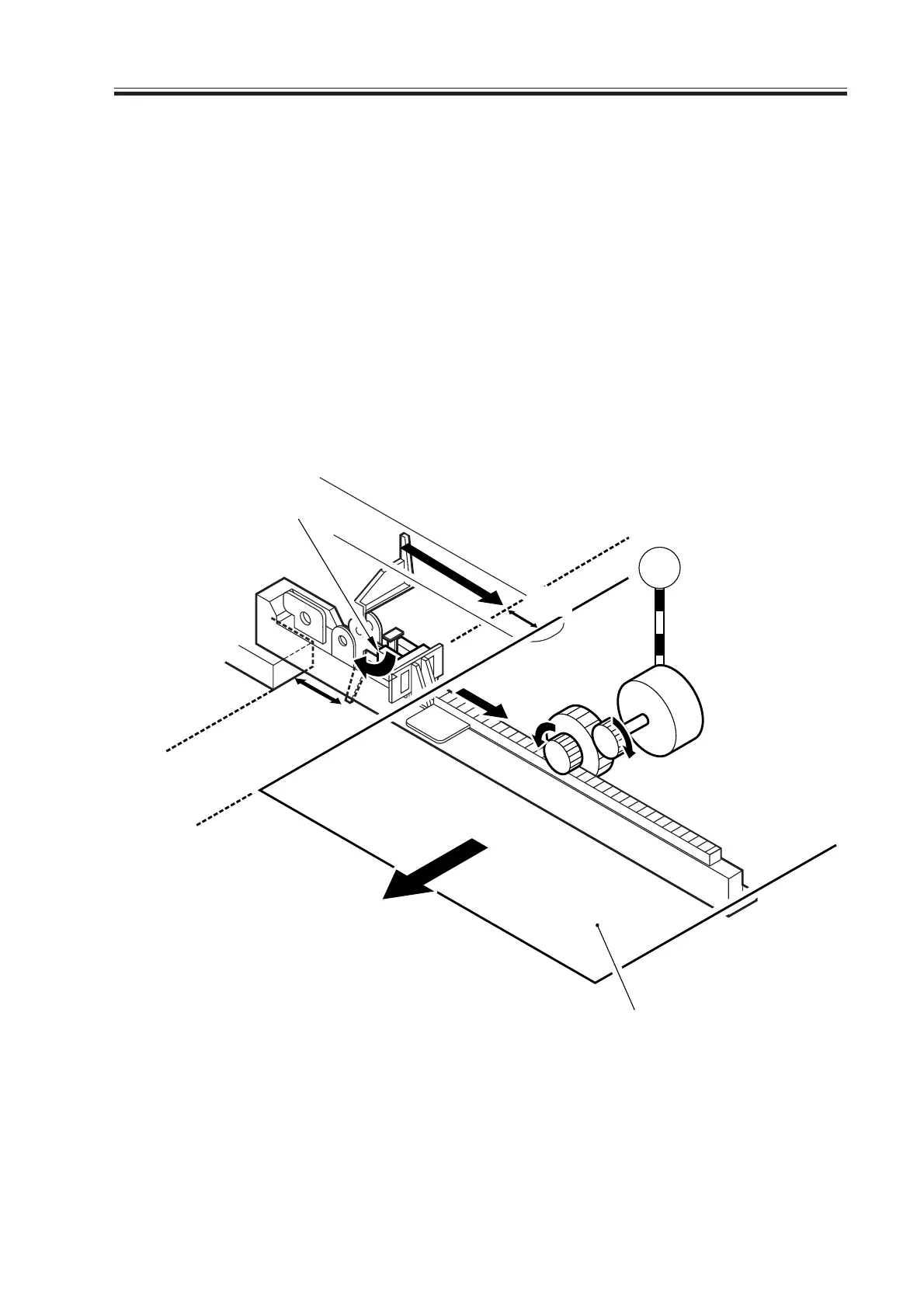

F05-404-01
M16
PS31
Home position
Detection start position
Edge of paper
Paper
10mm
