Canon iR5000 - Names of Parts; External View

COPYRIGHT © 2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 1 GENERAL DESCRIPTION
1-13 S
[1]
[16]
[4]
[3]
[14]
[15]
[2]
[5]
[7]
[6]
[8]
[11]
[10]
[9]
[12]
[13]
3. Names of Parts
3.1 External View

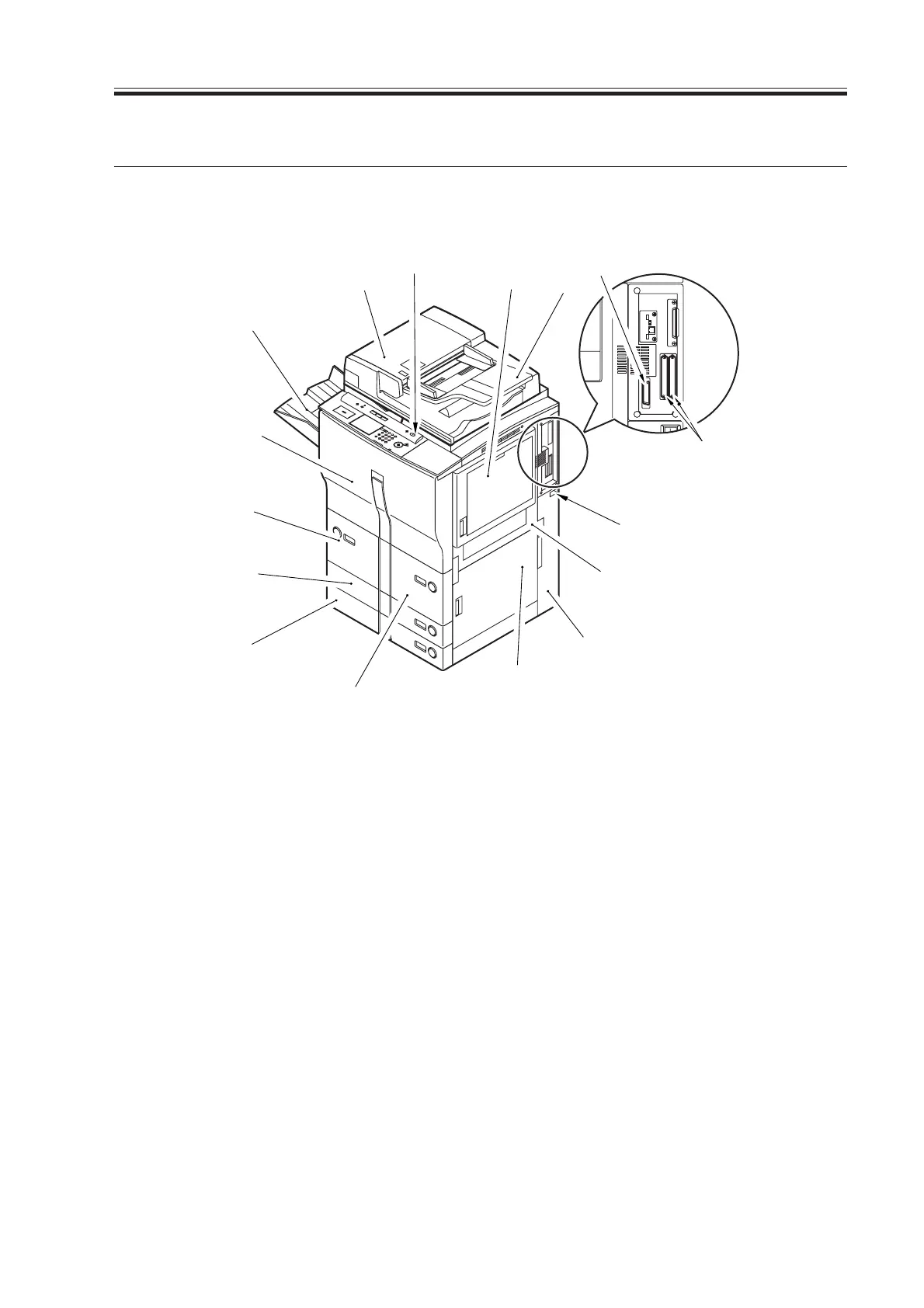

F01-301-01 External View 1
[1] ADF
[2] Main power switch
[3] Original pickup tray
[4] Manual feed tray
[5] Right upper cover
[6] Right lower cover
[7] Waste toner box, grip,
drum protection sheet case
[8] Right front paper deck
[9] Left front paper deck
[10] Cassette 3
[11] Cassette 4
[12] Front cover
[13] Delivery tray
[14] Parallel connector for downloading
[15] Slot for expansion board
[16] Control panel power switch
