COPYRIGHT
©
2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 4 IMAGE FORMATION SYSTEM
4-56 P

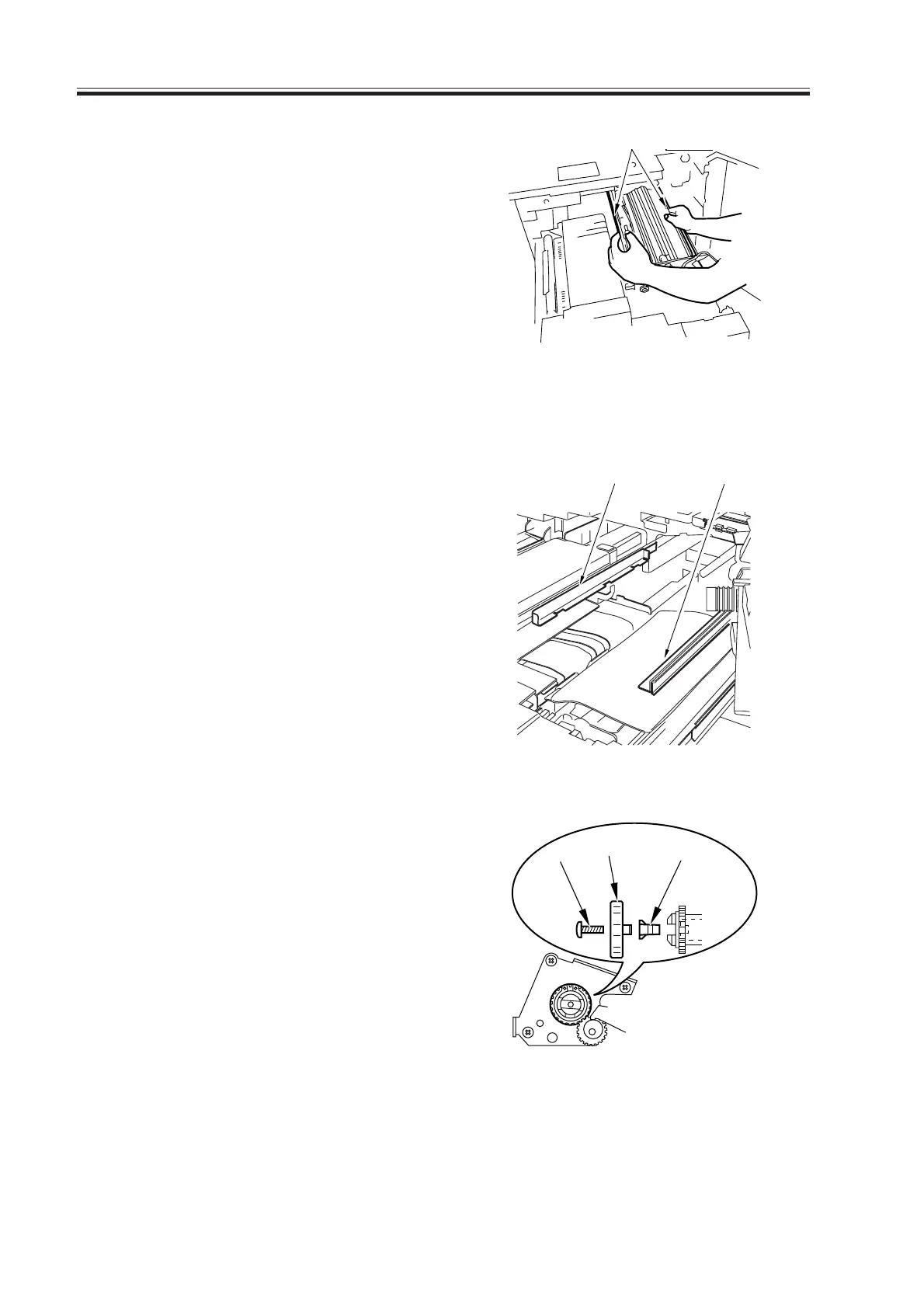

9) Holding the grip [8] of the process unit
as indicated, take it out.
F04-703-04
7.3.2 Mounting the Process Unit
Mount the process unit by reversing the steps used to remove it with the following in
mind:
1) On the left rail, place the process rail
along the guide plate [1] at the front/
rear of the rail.
On the right rail [2], place the process
unit on the L-shaped stay.
F04-703-05
2) After sliding the process unit into the
machine, match the slot in the drum
shaft and the slot in the drum using the
drum rotating tool [3]. Then, insert the
drum fixing tool [4], and fit the mount-
ing screw [5] into the center opening of
the drum rotating tool; then, tighten the
mounting screw.
F04-703-06
[1] [2]
[3]
[4]
[5]
[8]
