COPYRIGHT
©
2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 5 PICK UP/FEEDING SYSTEM
5-52 P

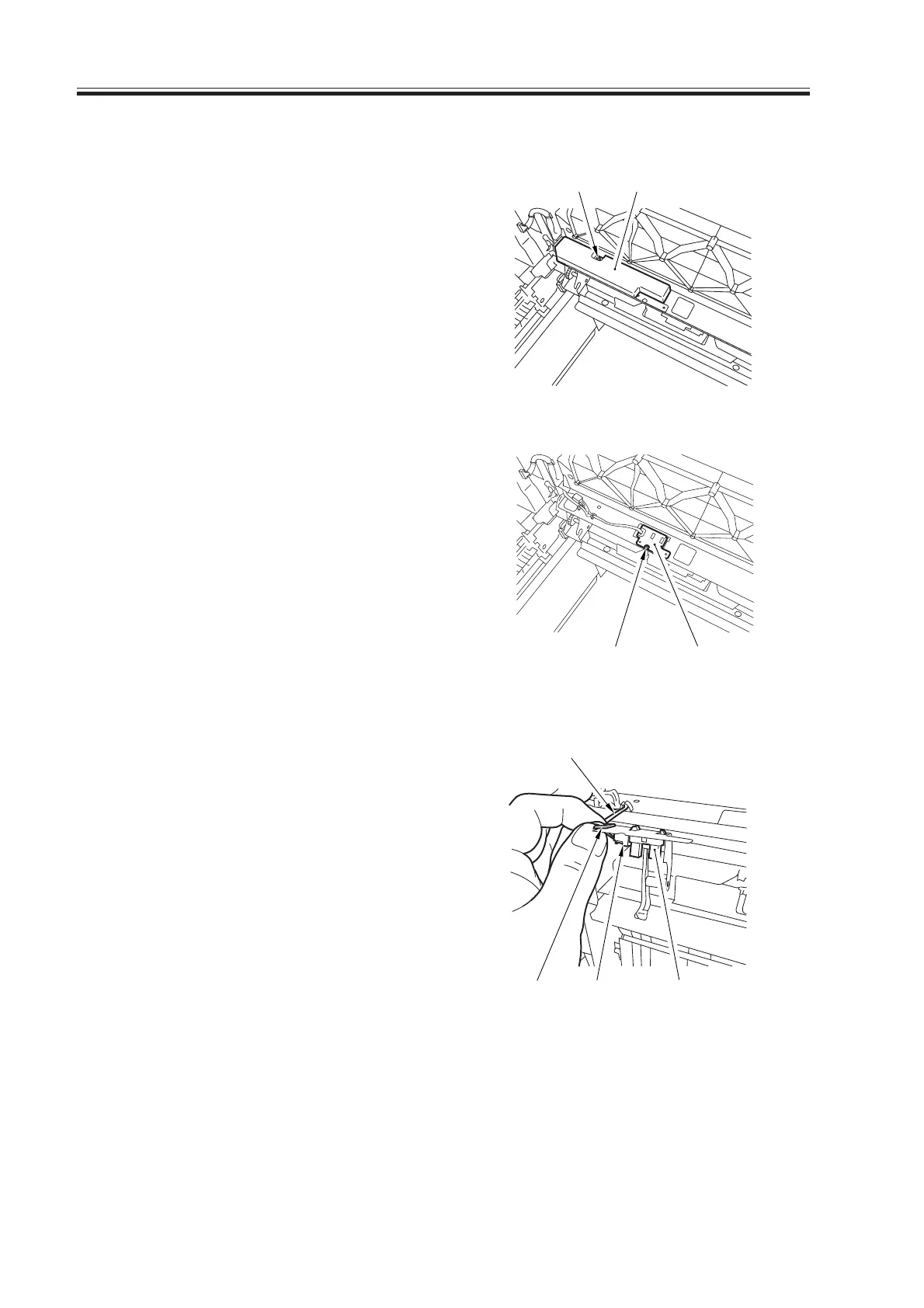

9.1.7 Removing the Manual feed Tray Paper Sensor
1) Open the right upper cover. (See p. 5-
49P.)
2) Remove the mounting screw [1], and
detach the cover [2].
F05-901-10
3) Remove the mounting screw [3], and
detach the sensor unit [4].
F05-901-11
4) Free the harness [5] from the harness
guide [6], and disconnect the connector
[7].
5) Remove the sensor [8].
F05-901-12
[1] [2]
[3] [4]
[5]
[6] [7] [8]
