COPYRIGHT
©
2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 5 PICK-UP/FEEDING SYSTEM
5-29 P

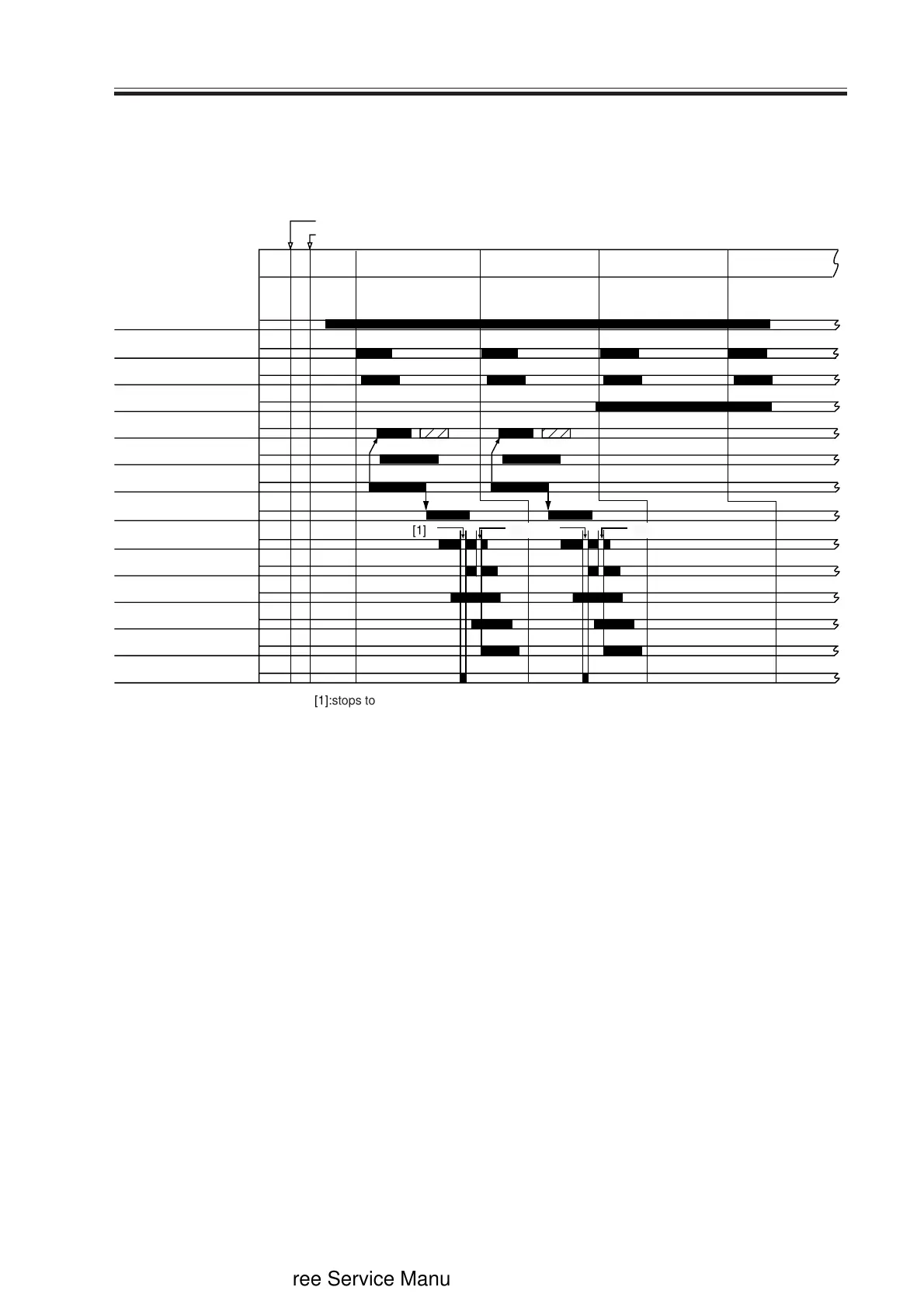

4.2 Sequence of Operations (printing)
• A4, 4Sheets→Double-Sided Prints
F05-402-01
Pull in
Discharge
Start key ON or print count set
Originals set in ADF
Printing on face of
1st sheet
Printing on face of
2nd sheet
Printing on back of
1st sheet
Printing on back of
2nd sheet
Pickup motor (M2)
Claw jam sensor (PS4)
Delivery flapper
solenoid (SL5)
Reversal motor (M14)
Duplexing feed left
motor (M29)
Duplexing feed right
motor (M18)
Vertical path duplexing
feed motor (M25)
Duplexing pre-registration
sensor (PS30)
Duplexing paper
sensor (PS34)
Reversal sensor 1
(S37)
Reversal sensor 2
(PS38)
Reversal flapper
solenoid (SL8)
Internal delivery sensor
(PS35)
[1]
[1]:stops to arch against the duplexing feed right roller.
[2]:stops for control of the sheet-to-sheet distance in duplexing wait
Horizontal registration
sensor (PS31)
[2]
Pull in
Discharge
[1]
[2]
