CHAPTER 5 PICK UP/FEEDING SYSTEM
5-64 P
9.3 Vertical Path Roller Assembly

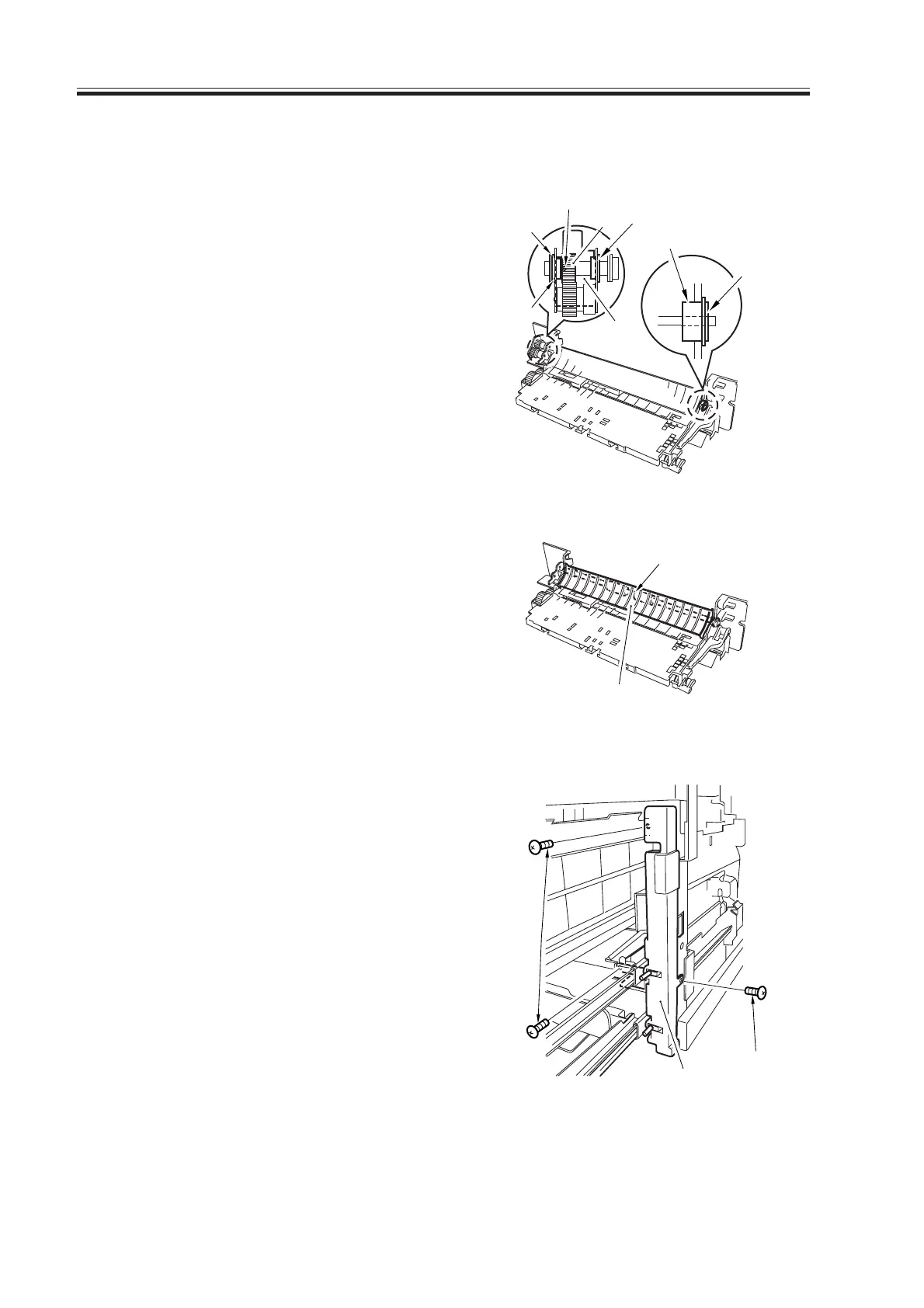

9.3.1 Removing the Vertical Path Roller 1
1) Remove the right deck pickup assembly.
2) Remove the following from the front:
E-ring [1], 1 pc.
bushing [2], 1 pc.
3) Remove the following from the rear:
E-ring [3], 1 pc.
bushing [4], 2 pc.
roller base [5]
blue gear [6]
parallel pin [7]
F05-903-01
4) Remove the guide plate [8], and detach
the vertical path roller 1 [9].
F05-903-02
9.3.2 Removing the Vertical Path Roller 2
1) Slide out the right deck and the cassette
3/4.
2) Remove the three screws [1], and detach
the cassette holder right cover [2].
F05-903-03
[1]
[2]
[7]
[6]
[3]
[4]
[5]
[4]
[9]
[8]
[1]
[2]
[1]
