CHAPTER 6 FIXING SYSTEM
6-24 P

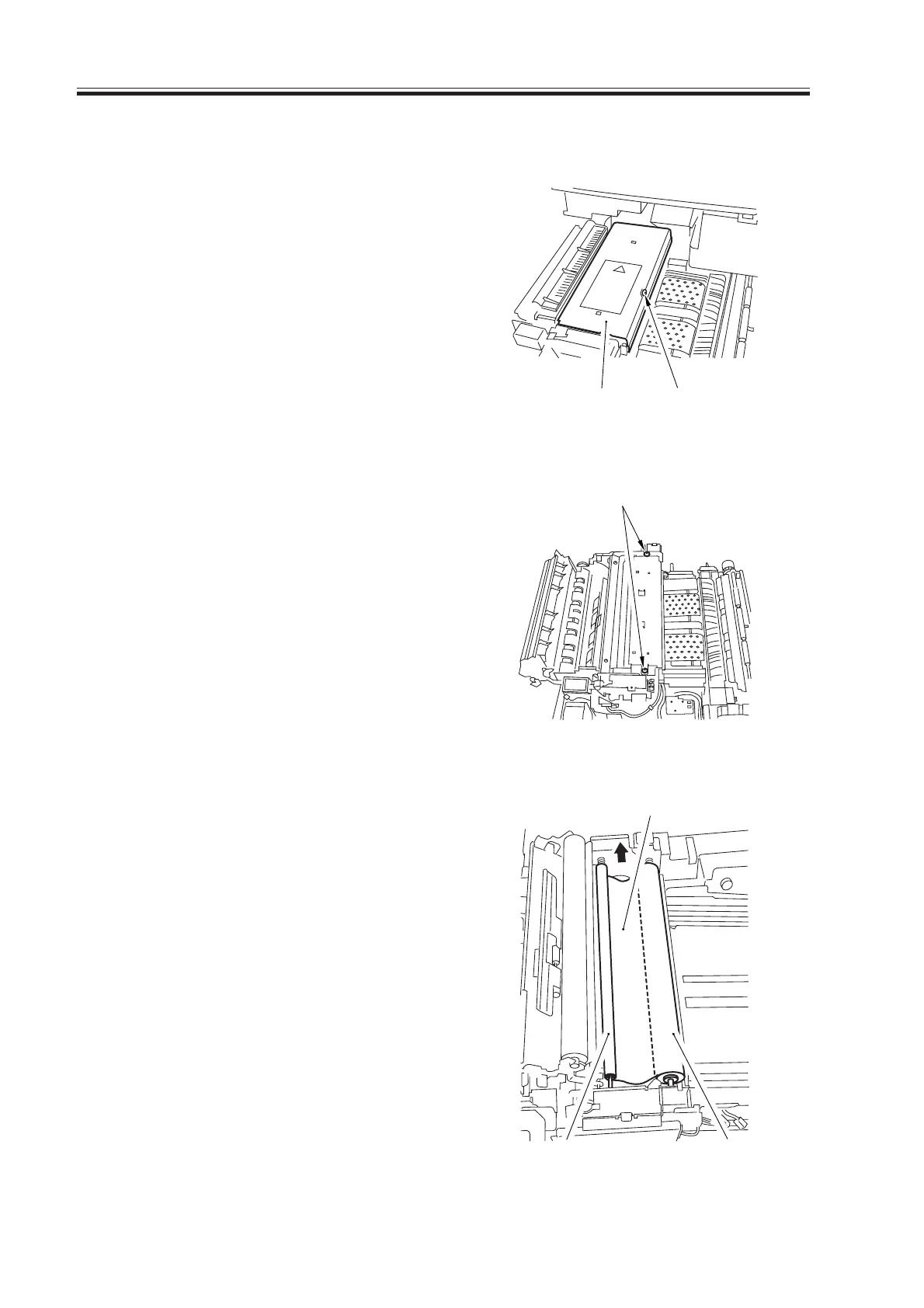

4.2 Fixing Roller Cleaning Assembly
4.2.1 Removing the Fixing Web
1) Slide out the fixing/feeding unit.
2) Remove the screw [1], and detach the
fixing assembly upper cover [2].
F06-402-01
3) Remove the two screws [3] used to hold
the fixing web assembly in place, and
open the fixing web upper assembly.
F06-402-02
4) While pushing the web feed roller [4]
and the web take-up roller [5] toward
the rear, remove the web [6].
F06-402-03
[2]
[1]
[3]
[5]
[6]
[4]
