CHAPTER 8 PAPER DECK
8-24 P

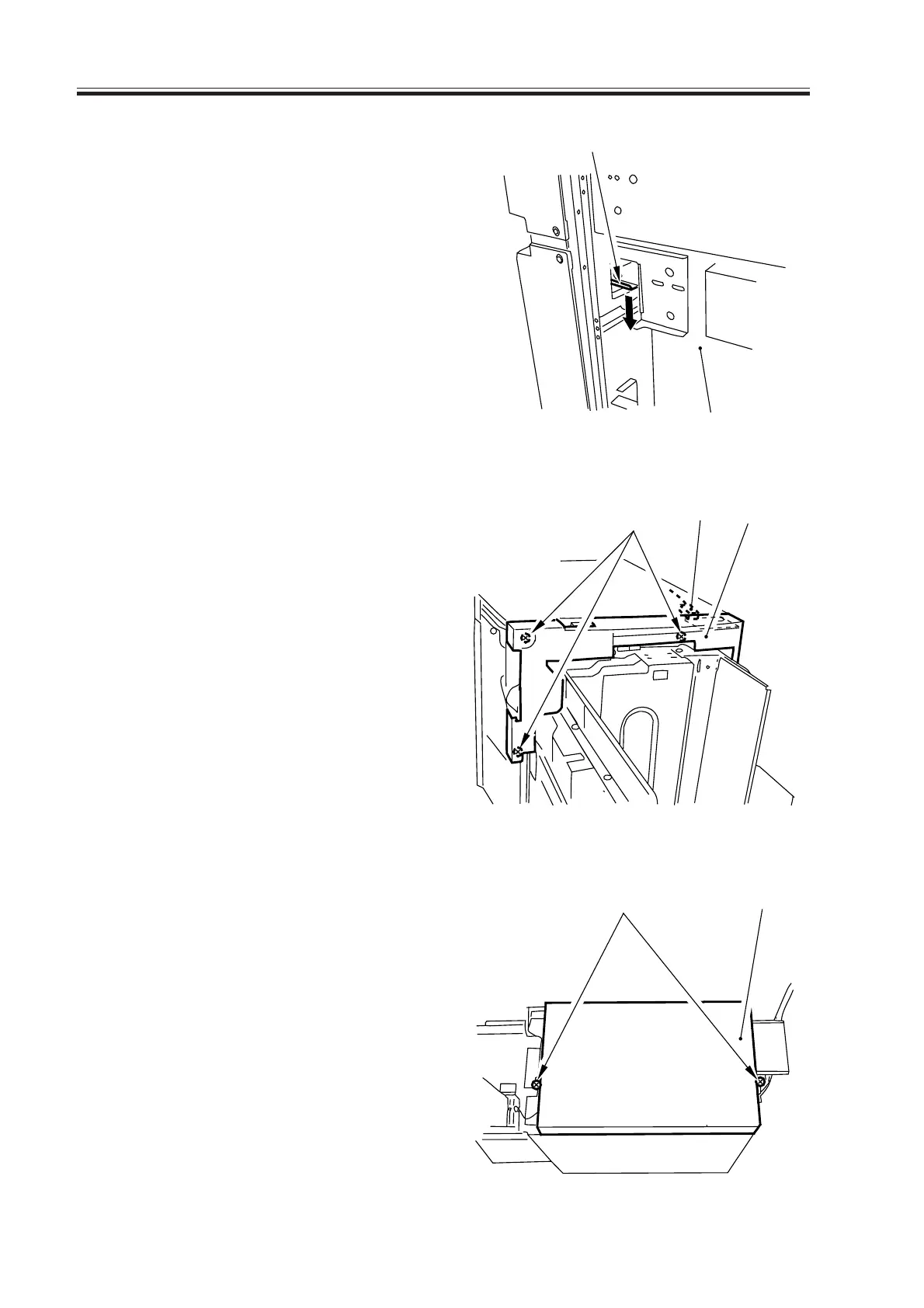

3.1.4 Removing the Upper Cover
1) Remove the rear cover. (See p. 8-23P.)
2) Push down the latch plate [2] of the
compartment [1] with your finger to
open the compartment [1].
F08-301-09
3) Remove the three screws [3], and dis-
connect the connector [4]; then, remove
the front upper cover [5].
F08-301-10
4) Close the deck vertical path assembly,
and remove the two screws [6]; then,
detach the upper cover [7].
F08-301-11
(rear)
[1]
[2]
[3]
[4]
[5]
[7]
[6]
