Canon iR5000 - Fans; Exhaust Fan; Feeding Fan

COPYRIGHT © 2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 7 EXTERNALS AND CONTROLS
7-28 P

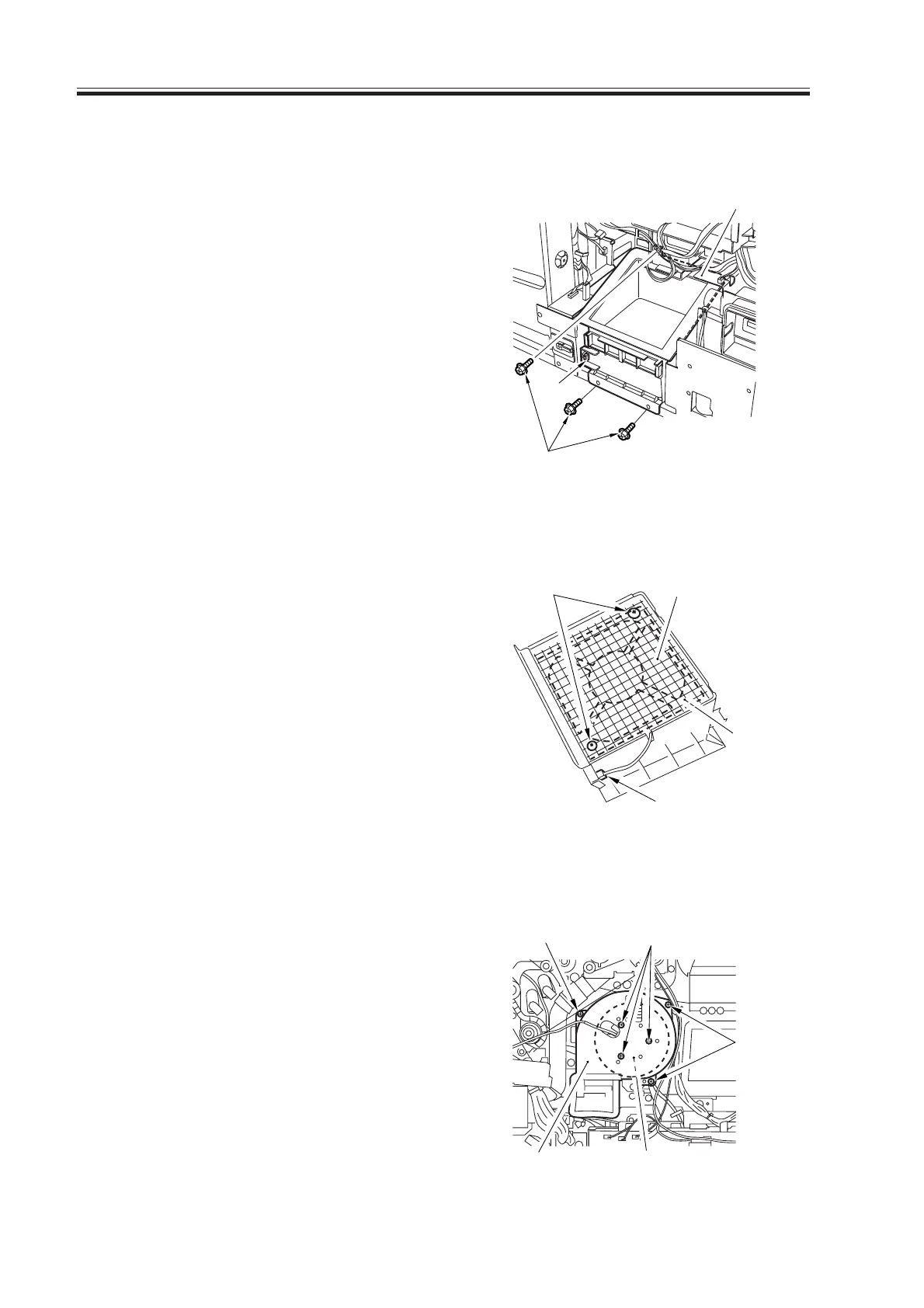

5.5 Fans
5.5.1 Exhaust Fan
1) Remove the rear lower cover.
2) Remove the three screws [1], and dis-
connect the connector [2]; then, detach
the exhaust fan duct [3].
F07-505-01
3) Remove the two screws [4], and discon-
nect the connector [5]; then, detach the
fan grille [6] to detach the exhaust fan
[7].
F07-505-02
5.5.2 Feeding Fan
1) Remove the DC controller PCB.
2) Remove the three screws [1], and detach
the primary fan cover [2].
3) Remove the three screws [3], and detach
the primary fan [4].
F07-505-03
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[1] [3]
[1]
[2] [4]
