COPYRIGHT
©
2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 7 EXTERNALS AND CONTROLS
7-18 P

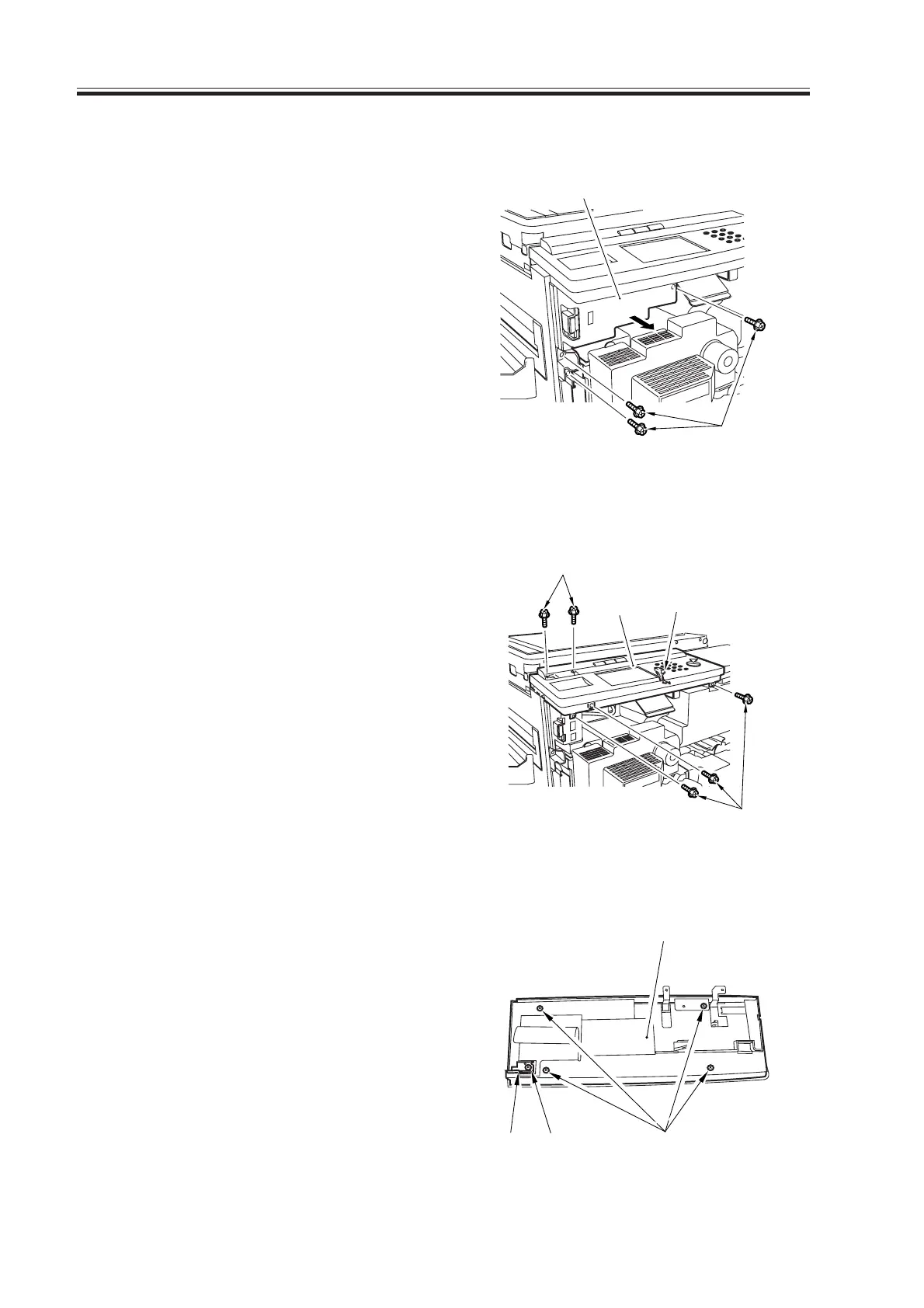

5.3 Control Panel
5.3.1 Removing the Control Panel
1) Remove the reader left/right/front cover.
2) Open the front cover, and slide out the
pickup feeding unit to the front.
3) Remove the three screws [1], and detach
the front door switch cover [2].
F07-503-01
4) Remove the five screws [3], and discon-
nect the connector [4]; then, detach the
control panel [5].
F07-503-02
5.3.2 Removing the Control Panel Control PCB and Keypad PCB
1) Remove the control panel.
2) Remove the screw [1], and detach the
control panel base [2]; then, remove the
four screws [3], and detach the base
cover [4].
F07-503-03
[1]
[2]
[3]
[5]
[4]
[3]
[2] [3]
[4]
[1]
