COPYRIGHT
©
2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 5 PICK-UP/FEEDING SYSTEM
5-38 P
6. Controlling the Delivery Assembly
6.1 Reversal Delivery Operation
The machine delivers its output using a face-up or face down method.
T05-601-01
The following takes place when the output is delivered face-down:

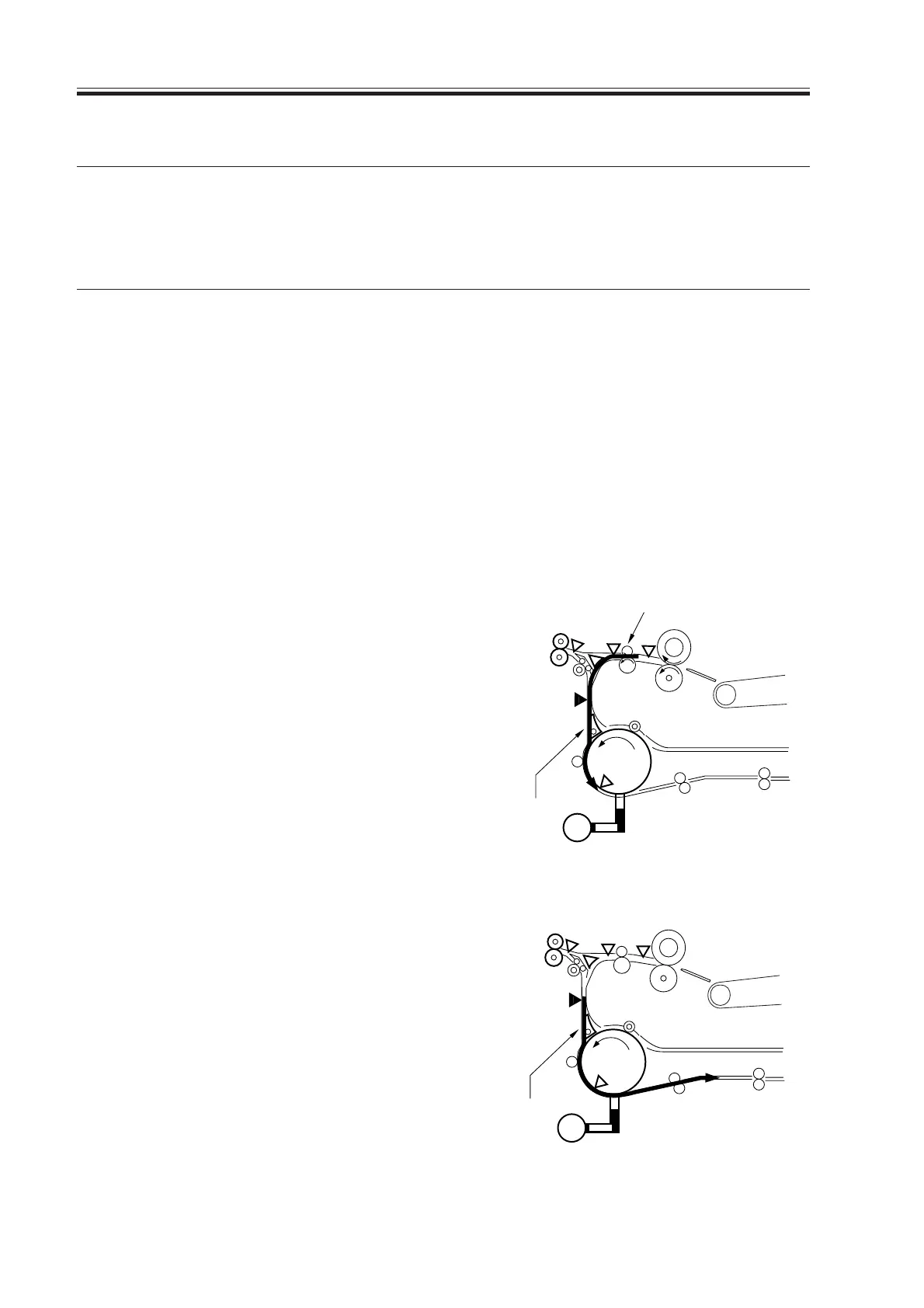

1) The paper is moved to the duplexing
feeding assembly.
F05-601-01
2) The internal delivery sensor (PS35)
turns on, and the paper is moved over a
specific distance; then, the reversal mo-
tor (M14) turns on to stop the paper
when its trailing edge turns on the re-
versal sensor 1 (PS37).
F05-601-02
Method of delivery
Face-up
Face-down
Mode of operation
• Prints multiple copies of a single original
• In manual feed mode, when a default size is selected while
the selected paper type is not plain paper
• Other than above
PS37
PS35
PS4
M14
Internal
delivery roller
Reversing flapper
Point of reversal
PS37
PS35
PS4
M14
Reversing flapper
Point of reversal
PS37
