CHAPTER 3 INSTALLATION
3-15 S

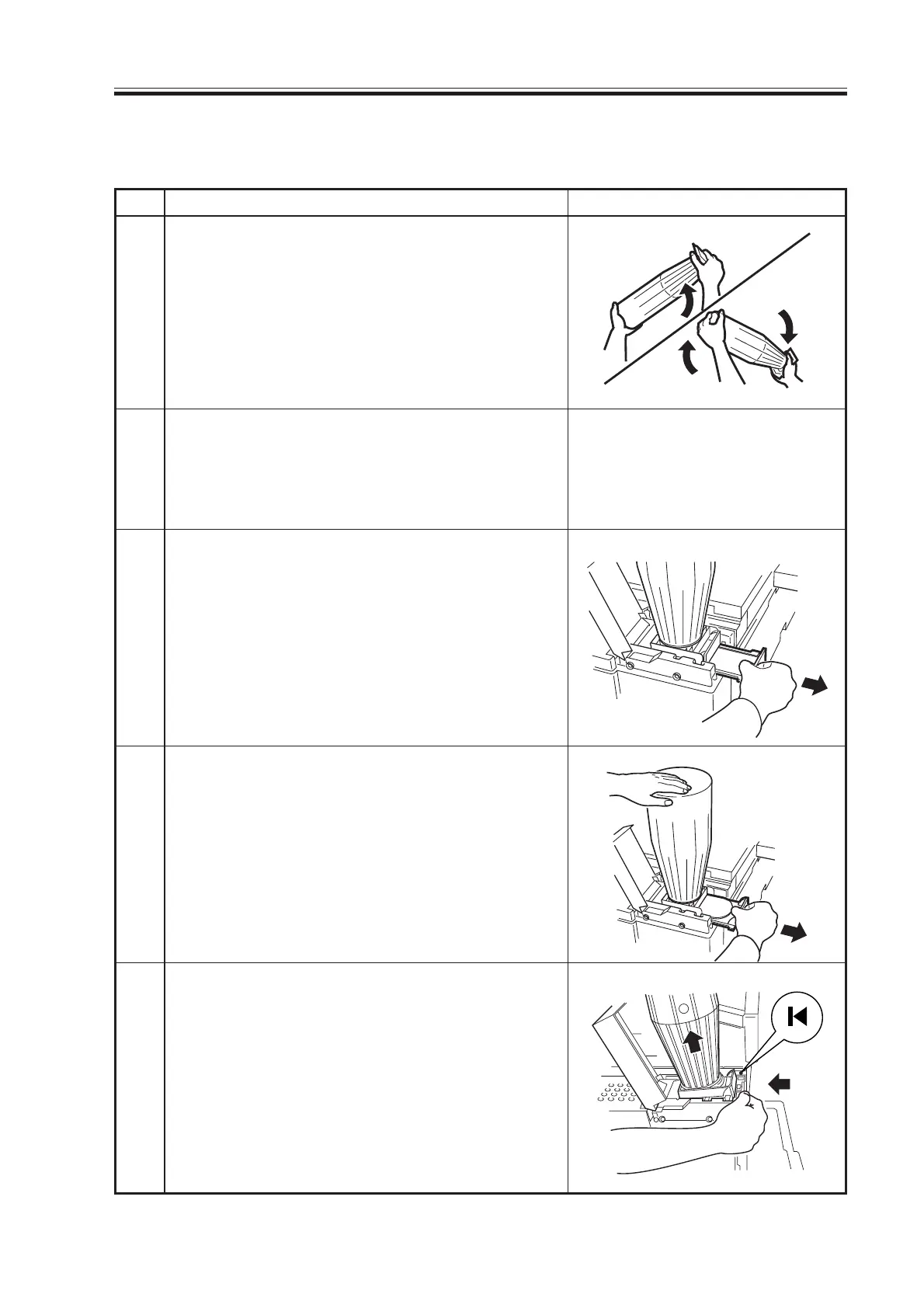

2.10 Supplying Toner
Checks/remarks
Check to make sure that the toner
bottle is locked to the toner sup-
ply mouth.
Step
1
2
3
4
5
Work
Rotate the toner bottom as shown ten times or
more.
Open the hopper cover and fit the boss on the tip
of the toner bottle in the groove of the toner sup-
ply mouth.
At this time, be sure to push it in until a click is
heard.
Pull the shutter (black) of the body (found on the
right of the toner supply mouth of the hopper) to
the right.
Keep pulling until the shutter stops.
Pull the shutter of the toner bottle to the right.
Toner will be supplied from the toner bottle to
the hopper. Tap on the bottom of the toner bottle
to make sure that all toner has moved to the hop-
per.
Push the shutter of the toner bottle to the left to
close.
Push the machine’s shutter to the left until it
stops.
Push the machine’s shutter farther to the marking
on the hopper, thus freeing the toner bottle.
Pull the toner bottle in left upper direction to de-
tach; then close the hopper cover.
