4.6 Delivery Assembly
4.6.1 Removing the External Delivery Roller

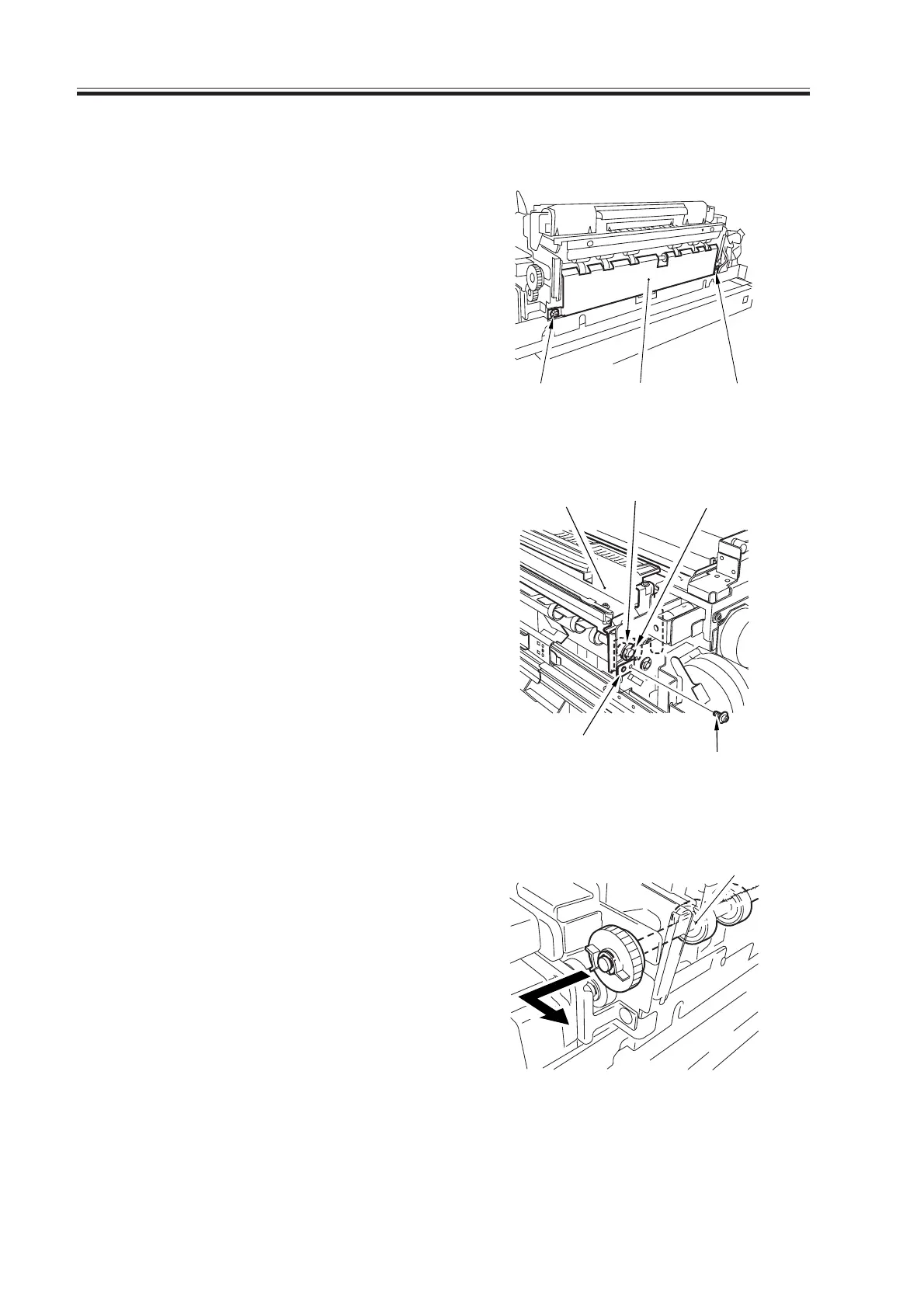

1) Remove the fixing/feeding unit out of
the machine. Remove the two screws
[1], and detach the delivery roller guide
[2].
F06-406-01
2) Remove the screw [3] and the bushing
[4]; then, detach the delivery unit [5].
3) Remove the E-ring [6] at the front, and
detach the bearing [7].
F06-406-02
4) Slide the external delivery roller assem-
bly [8] toward the rear to detach.
F06-406-03
[1] [2] [1]
[3]
[4]
[5]
[7]
[6]
[8]
