COPYRIGHT
©
2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 3 STANDARDS AND ADJUSTMENTS
3-9 T
4. Pickup/Feeding System
4.1 Orientation of the Deck/Cassette Pickup Roller
The pickup roller may be mounted by reversing the steps used to remove it; however, be
sure to keep the following in mind:
• The pickup rollers used at the front and the rear of the machine are not interchangeable.
• The collar of the pickup roller used at the front of the machine is gold-colored.

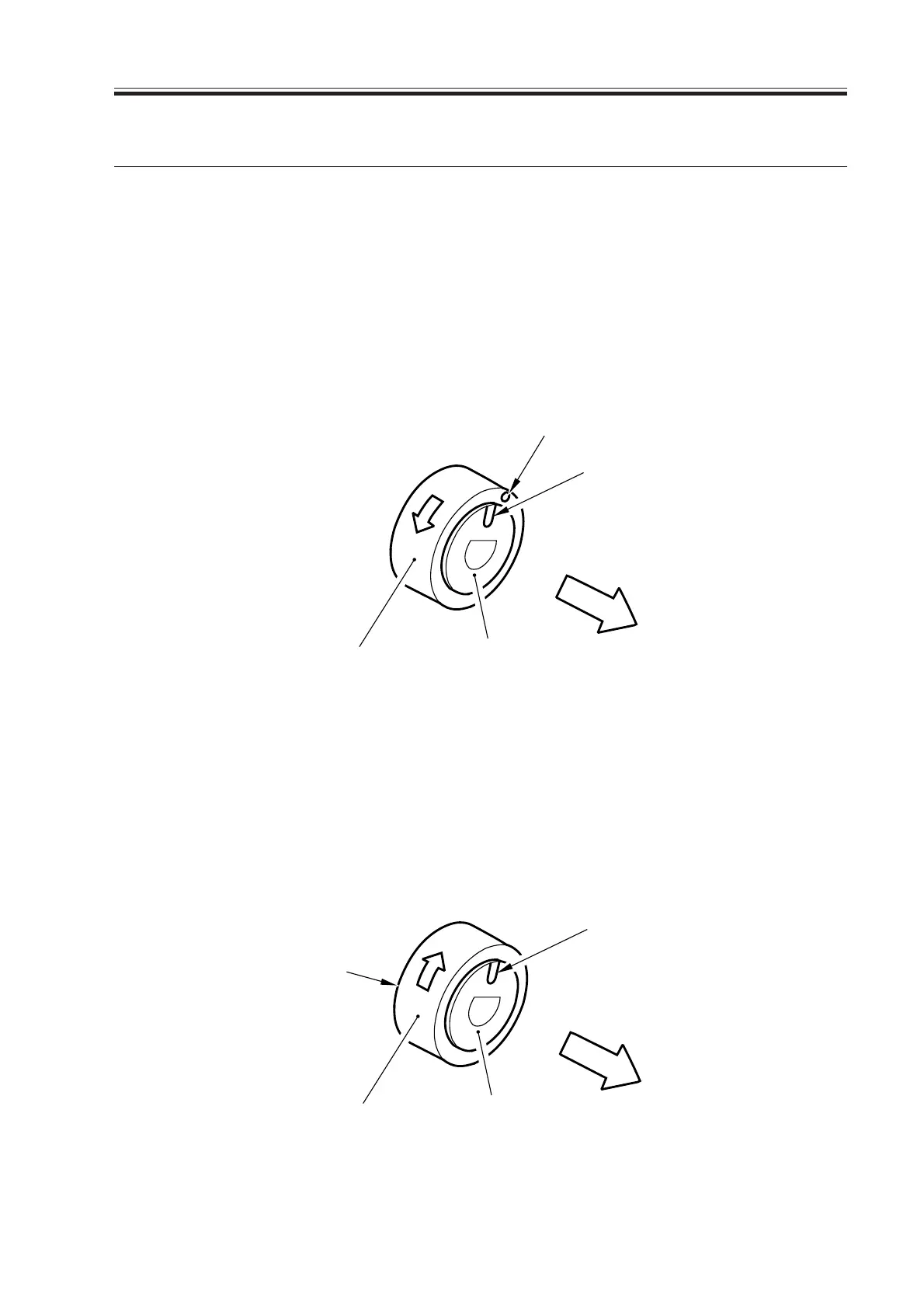

When mounting the pickup roller [1] to the pickup assembly, make sure that the round
marking [2] found on the side of the roller and the round marking [3] found on the collar
(gold-colored) are toward the front of the machine.
F03-401-01
• The collar of the pickup roller used at the rear of the machine is silver-colored. When
mounting the pickup roller [4] to the pickup assembly, make sure that the round mark-
ing [5] found on the side o the roller is toward the front of the machine while the round
marking on the collar (silver-colored) is toward the rear of the machine.
F03-401-02
(direction of rotation)
[1]
Collar (gold-colored) (front of machine)
[2]
[3]
[4]
[5]
[6]
(direction of rotation)
Collar (silver-colored) (rear of machine)
