CHAPTER 5 PICK UP/FEEDING SYSTEM
5-78 P

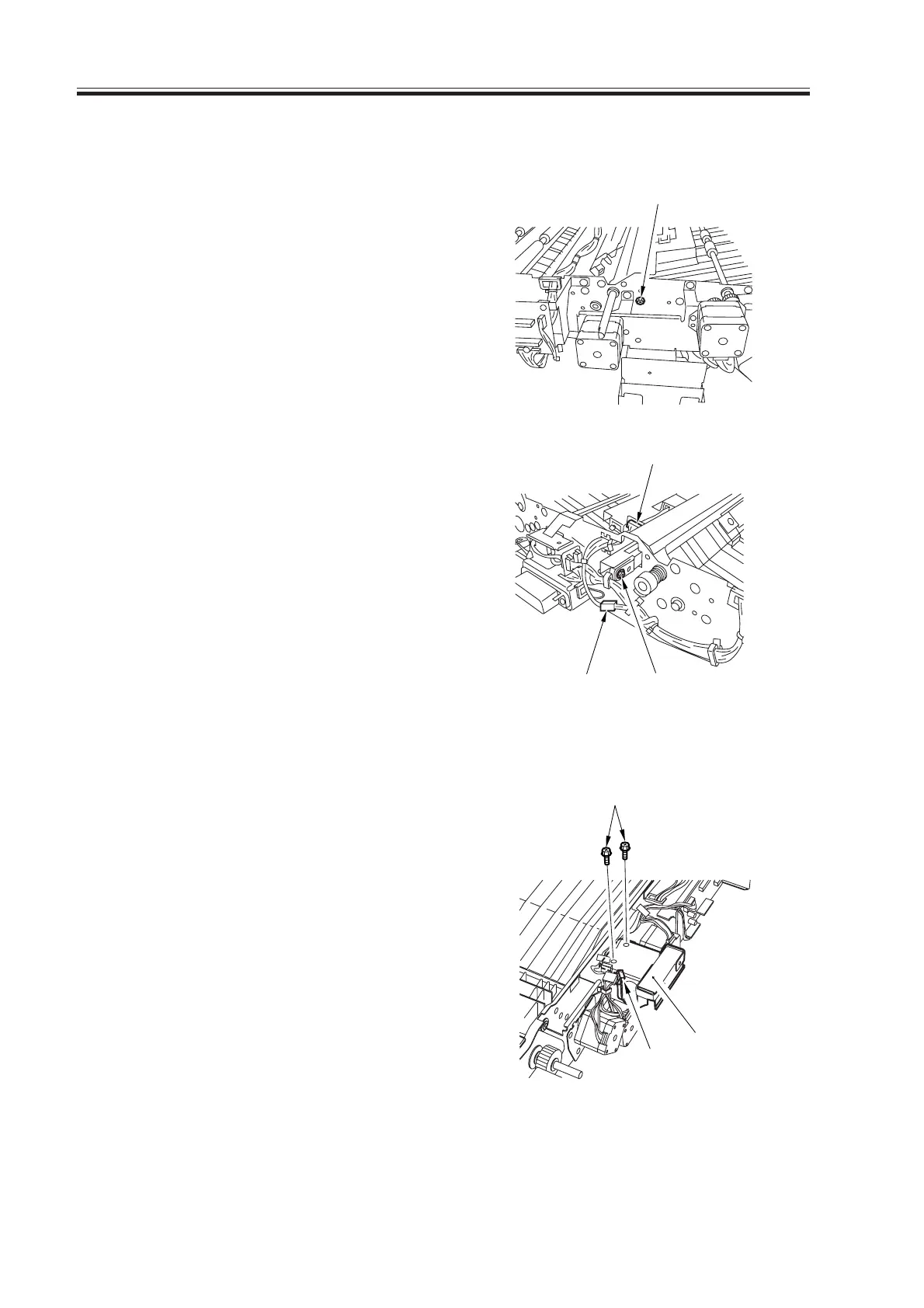

9.6.15 Removing the Horizontal Registration Unit
1) Remove the duplex unit from the ma-
chine.
2) Remove the front cover of the duplex
unit.
3) Turn over the duplex unit.
4) Remove the mounting screw [1] from
the front.
5) Remove the mounting screw [2] and
disconnect the connector [3] from the
rear; then, detach the horizontal regis-
tration unit [4].
F05-906-25
9.6.16 Removing the Duplex Feeding Fan
1) Slide out the duplex unit, and detach the
front cover of the duplex unit.
2) Remove the two mounting screws [1],
and disconnect the connector [2]; then,
detach the fan together with its base [3].
F05-906-26
(front)
[1]
[4]
(rear)
[2][3]
[3]
[1]
[2]
