COPYRIGHT
©
2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 4 IMAGE FORMATION SYSTEM
4-82 P
7.11.4 Mounting the Side Seal
1) Mount the side seal [1] to the cleaner
housing where indicated (both ends).
AT this time, be sure that the edge of
the side seal is positioned as follows:
• When replacing the side seal [1] at
the front, push the magnet roller [2]
toward the rear and then make sure
that the inner end of the side seal is
within the area [3] of the washer.
• When replacing the side seal [1] at
the rear, push the magnet roller [2]
toward the front and then make sure
that the inner end of the side seal is
within the area [3] of the washer.
2) The bottom end of each side seal [1]
must be 0 to 0.5 mm from the corner of
the cleaner hosing; i.e., point of refer-
ence [3].
3) Attach the side seal [1] at the front and
the rear to the cleaner housing while
making sure its position is as indicated.

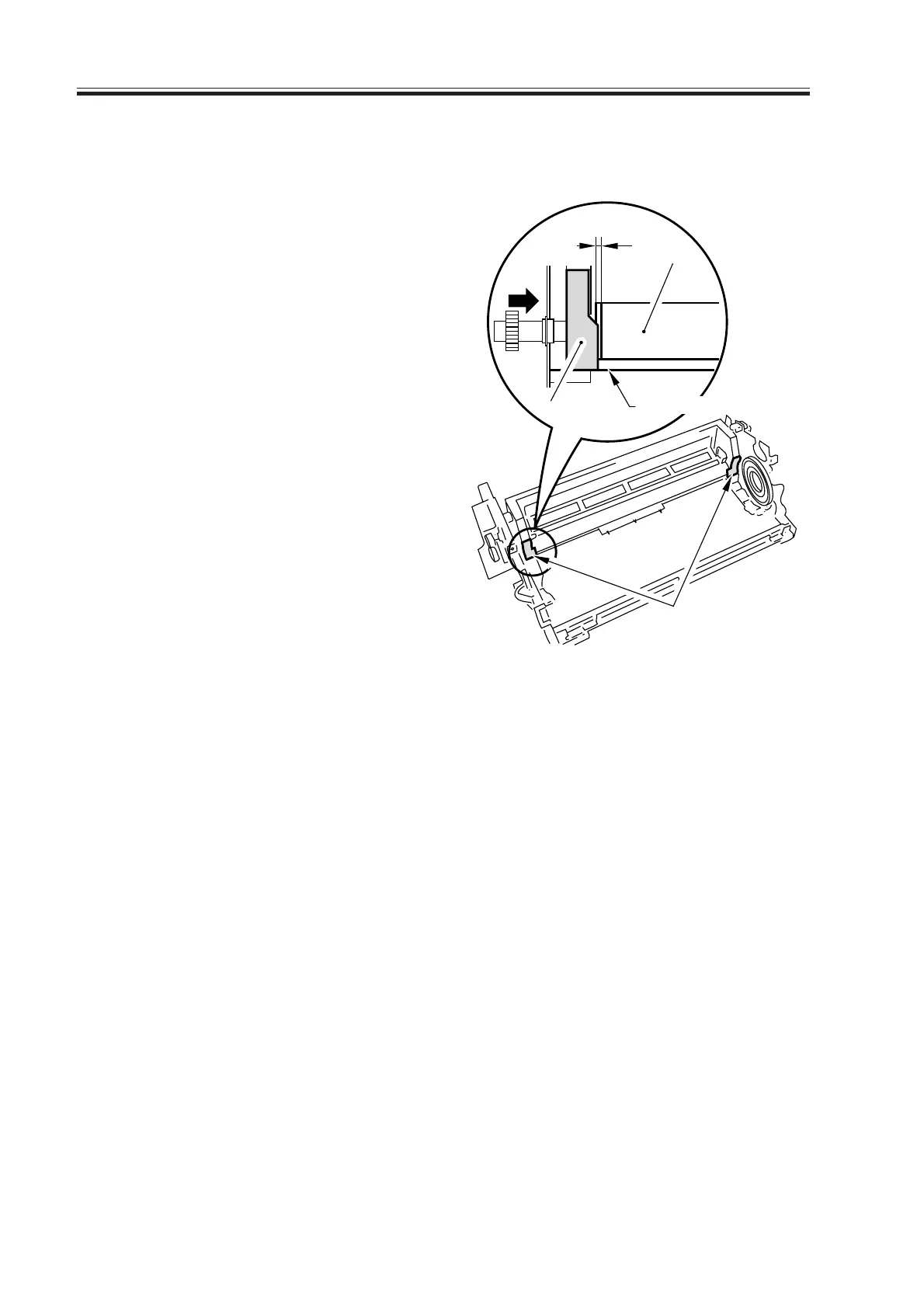

F04-711-08
:0 to 0.5mm
[3]
[2]
[1]
[4]
[1]
