COPYRIGHT
©
2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 6 FIXING SYSTEM
6-27 P
[2]
[3]
[1]
[1]
[6]
[5]
[4]
[7]
[8]

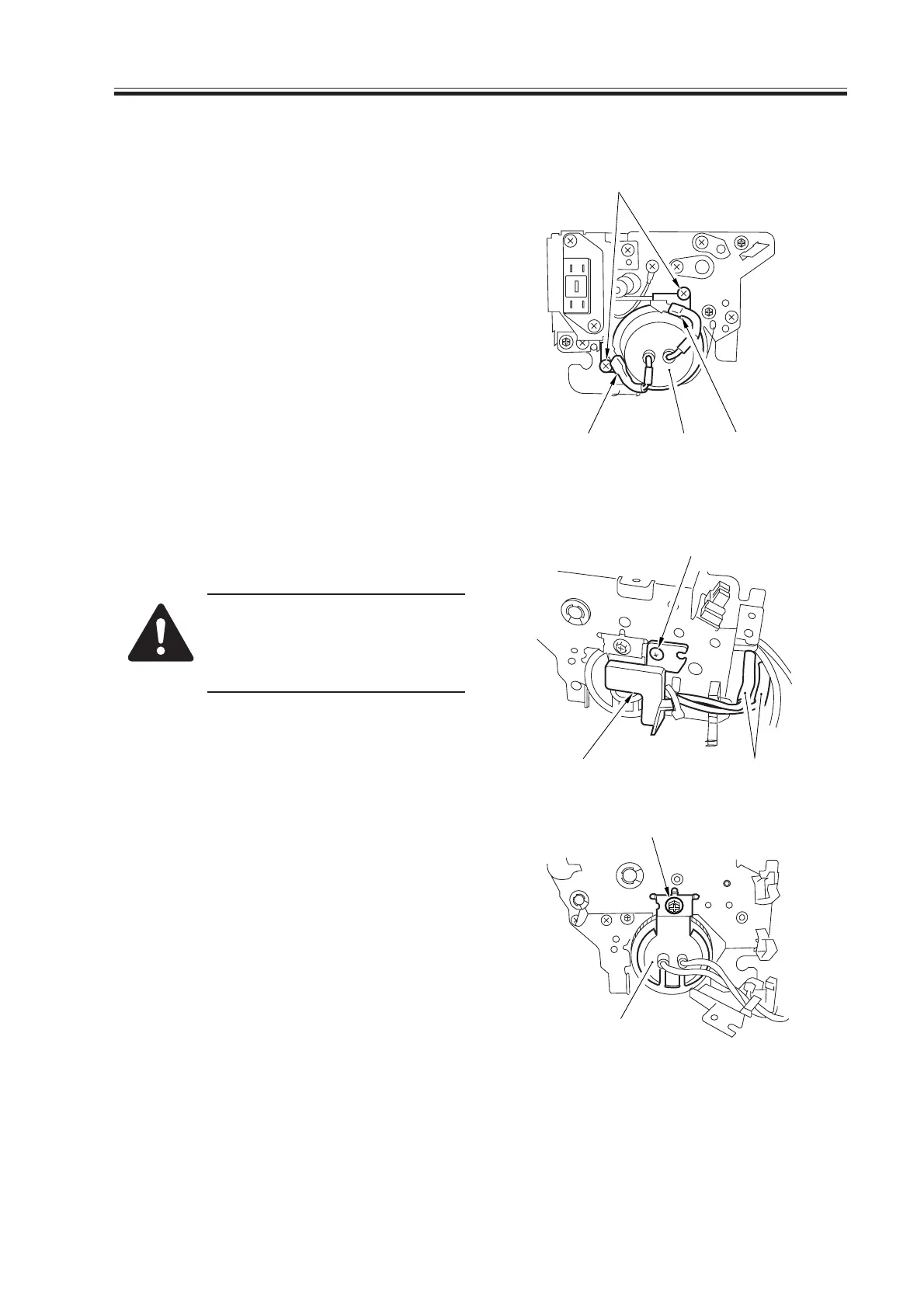

4.3 Fixing Heater and the Control Parts
4.3.1 Removing the Main/Sub Heater
1) Remove the fixing assembly from the
machine.
2) Remove the two fastons [1] and the two
screws [2] at the rear; then, detach the
heater positioning plate (rear) [3].
F06-403-01
3) Remove the screw [4] and the faston [5]
at the front, and detach the harness
cover [6].
The harness is equipped with a
tie-wrap. Be sure to use a new
tie-wrap if you have cut the tie-
wrap.
F06-403-02
4) Remove the screw [7], and detach the
heater positioning plate (front) [8].
5) Remove the main heater and the sub
heater.
F06-403-03
