CHAPTER 5 PICK-UP/FEEDING SYSTEM
5-42 P
8.
Detecting J
ams
8.1
Outline
8.1.1

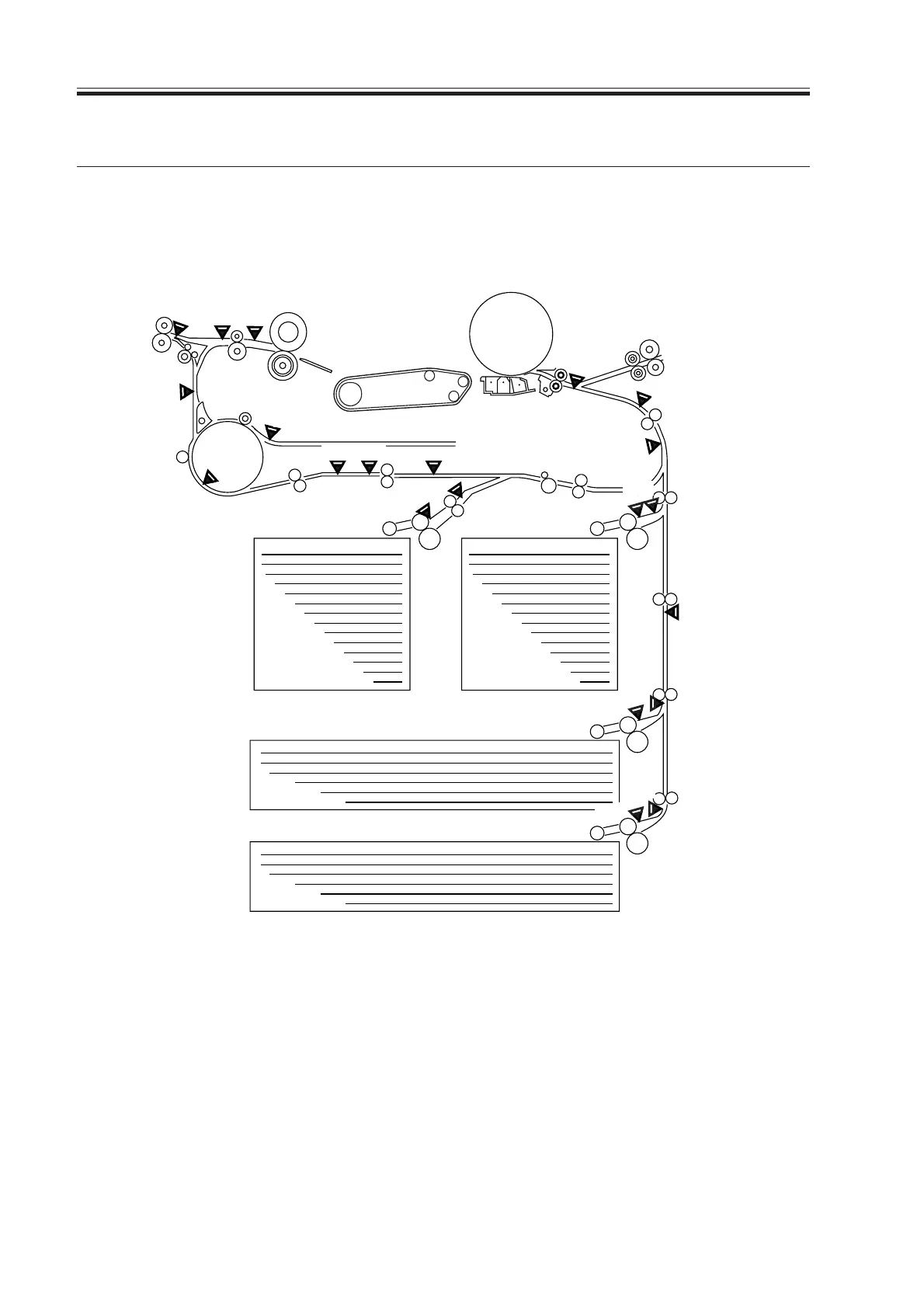

Arrangement of Jam Sensors
F05-801-01
PS36
PS38
PS37
PS33
PS20
PS25
PS24
PS19
PS35
PS29
PS32
PS21
PS26
PS22
PS27
PS30
PS4
PS46
PS31
PS34
PS28
