CHAPTER 6 FIXING SYSTEM
6-13 P
3.2.1 Normal Sequence
In normal sequence, the control will be as follows:
• If the surface of the fixing upper roller is 75°C or lower (60 min from power-on).
Wait indicator Red RedGreen
Fixing motor
(M3)
Main heater
(H1)
100V
Sub heater (H2)
SLEEP WMUP WMUPR*1 STBY INTR PSTBY PRINT LSTR STBY
Main power
switch ON
Control panel
power switch ON
205 ˚C
200 ˚C
195 ˚C
Start key
ON
210 ˚C
120/230V
Sub heater (H2)
*1:WMUPR in H mode is longer by 1 min.
215 ˚C
H mode
M/L mode

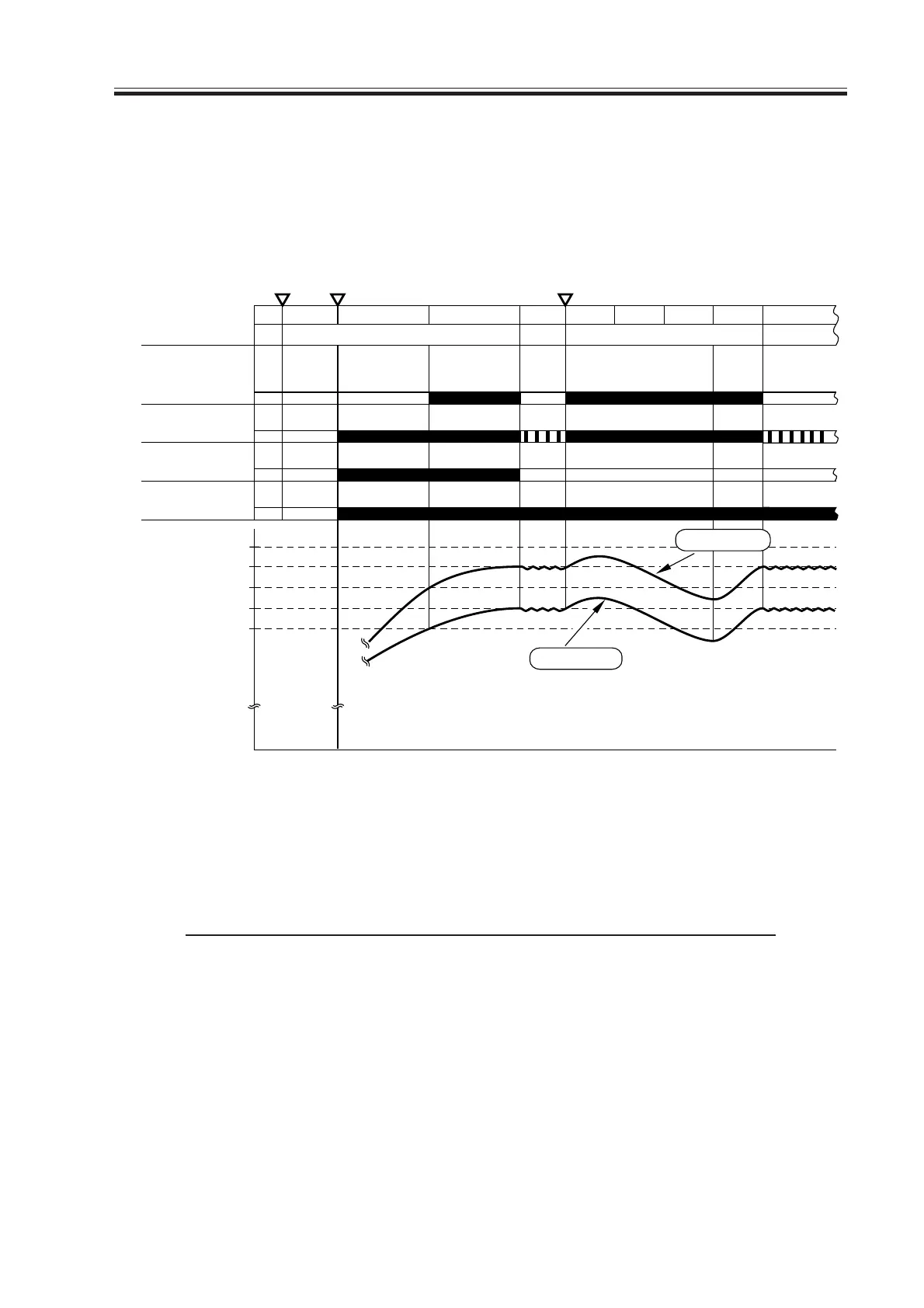

F06-302-01
T06-302-02
Control
temperature
Ambient temperature
Initial multiple rotation
Standby
Start of printing
During printing
H mode
195°C
200°C
200°C
203°C
M/L mode
205°C
210°C
210°C
212°C
