CHAPTER 5 PICK UP/FEEDING SYSTEM

5-73 P

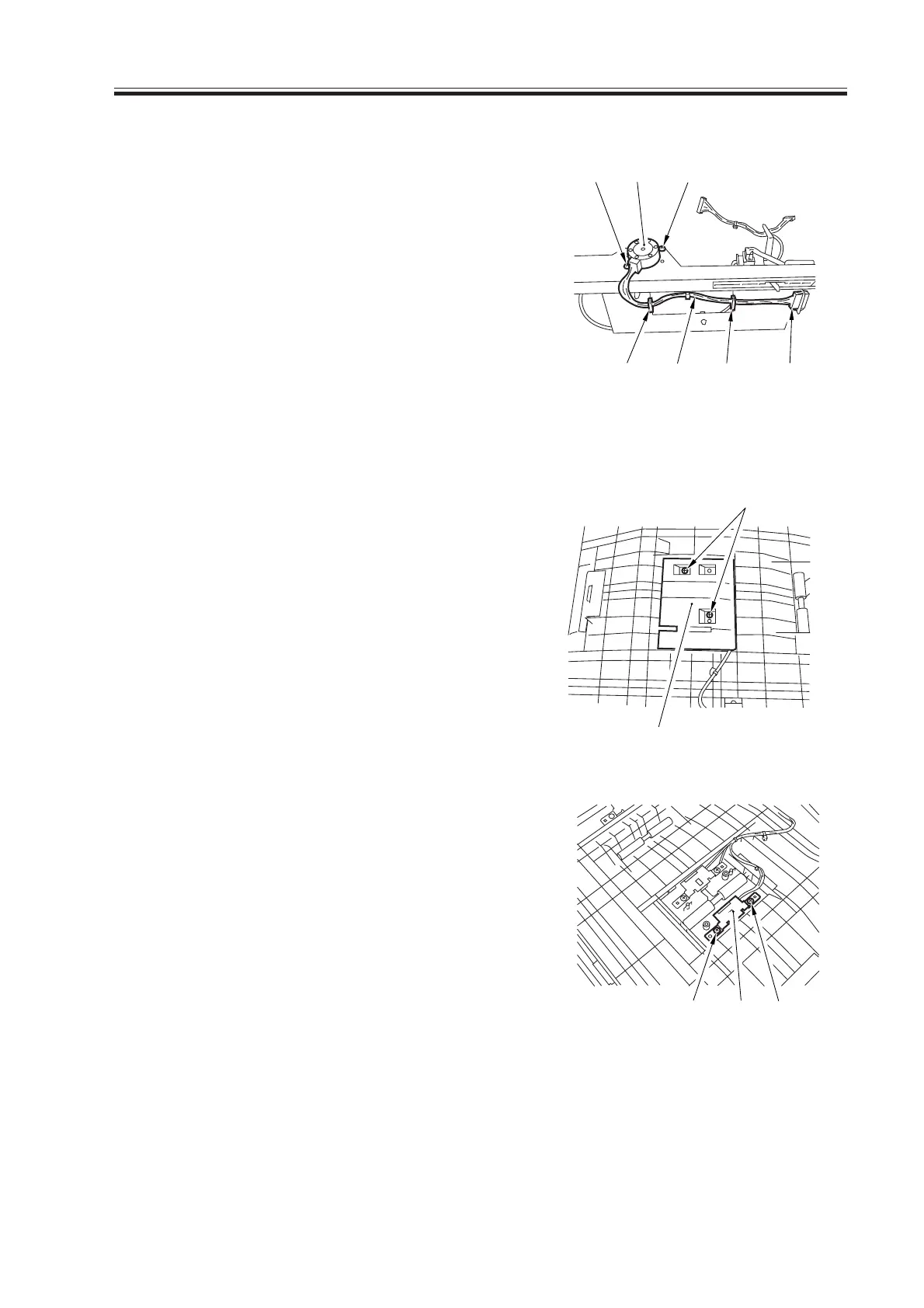

9.6.7 Removing the Horizontal Registration Motor

1) Remove the duplex unit from the ma-

chine.

2) Remove the horizontal registration unit.

3) Disconnect the connector [1], and free

the harness [2] from the harness guide

[3].

4) Remove the two mounting screws [4],

and detach the horizontal registration

motor [5].

F05-906-10

9.6.8 Removing the Duplex Pre-Registration Sensor

1) Slide the duplex unit out the machine.

2) Remove the two mounting screws [1],

and detach the cover [2].

F05-906-11

3) Remove the two mounting screws [3],

and detach the sensor together with its

base [4].

F05-906-12

[3]

[4] [4][5]

[2] [3] [1]

[2]

[1]

[3] [3][4]
