COPYRIGHT
©
2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 3 INSTALLATION
3-9 S
Checks/remarks

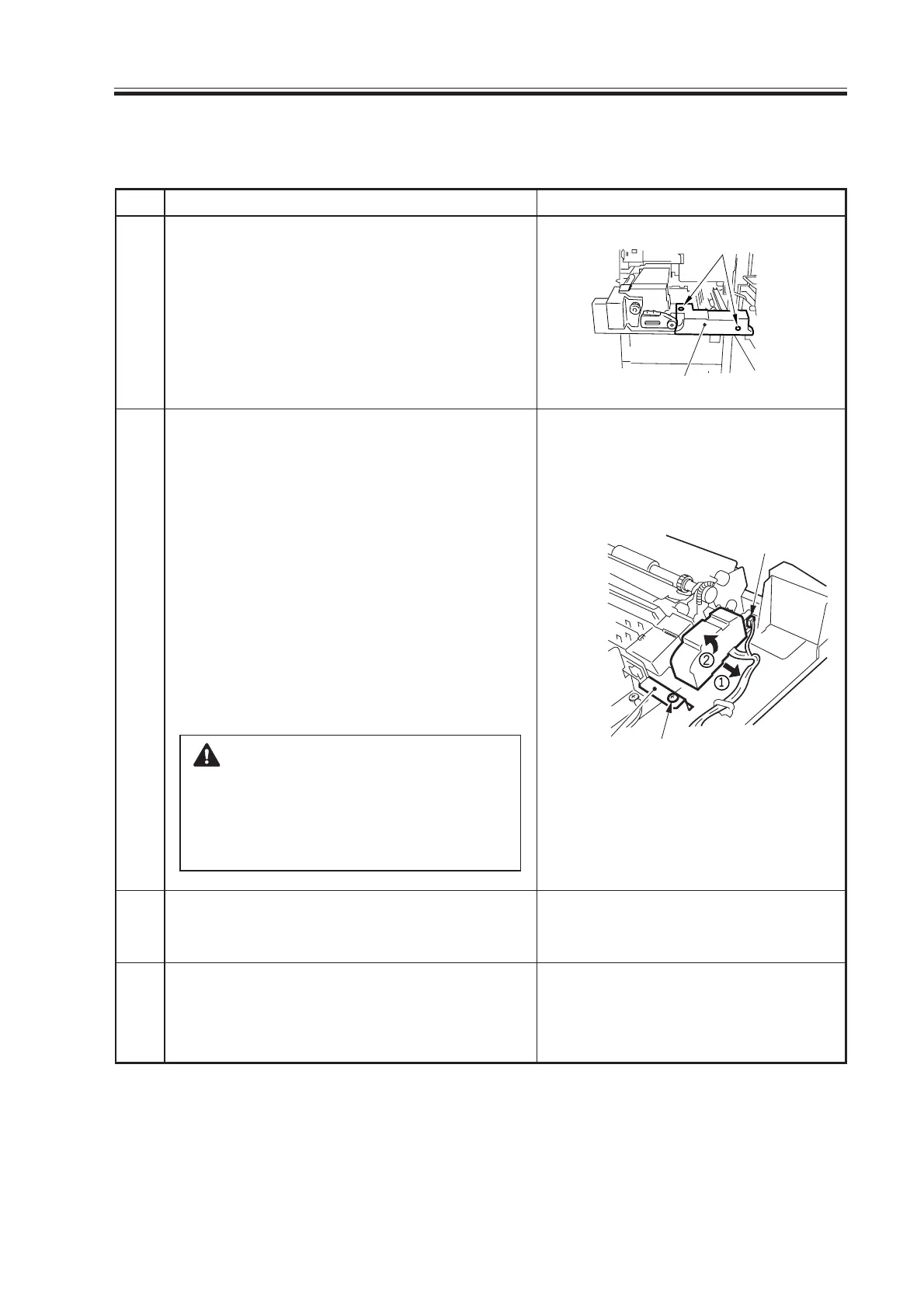

2.6 Checking the Charging Assemblies
Screws
Feeding assembly front cover
Connector
ScrewMetal fixing
Step
1
2
3
4
Work
Remove the two screws, and detach the feed-
ing assembly front cover (right).
Remove the screw, and detach the metal fix-
ing; then disconnect the connector.
While holding the front and the rear of the
transfer/separation charging assembly at the
same time, pull it to the front to detach in the
left upper direction.
Check the transfer/separation charging as-
sembly; if dirt or paper lint is found, clean
with alcohol.
Mount the transfer/separation charging as-
sembly.
Connect the connector, and fit the metal fix-
ing.
Do not bring the transfer/separation
charging assembly into contact with the
transfer guide to avoid cutting the gut
wire. Further, be sure that the solvent has
evaporated completely.
Mount the feeding assembly front cover
(right) with two screws, and insert the fixing/
feeding assembly into the machine.
Remove the screw from the door tape (door
stopper) of the front door. (This is to keep
the hopper open, which otherwise may close
when the hopper is opened.)
