TRAY 1/2 PAPER FEED UNIT (7255/7272)
2-J-8
J UNIT EXPLANATION
TRAY 1/2 PAPER FEED UNIT (7255/7272)
[1] Composition
Caution: Trays 1/2 have the same mechanism.
[2] Mechanisms
*1 Paper lift-up
a) Hoisting of up/down plate
Paper feed trays are driven by wires. When a
paper tray is loaded, the tray up drive motor/
1(M16)/2(M17) rotates to wind the wires
around the drive pulleys and consequently
the up/down plate in the tray moves up. When
the tray upper limit PS/1(PS2)/2(PS8) detects
the actuator of the roller that has been moved
up by paper, the tray up drive motor/1(M16)/
2 (M17) stops.
7272ma2004

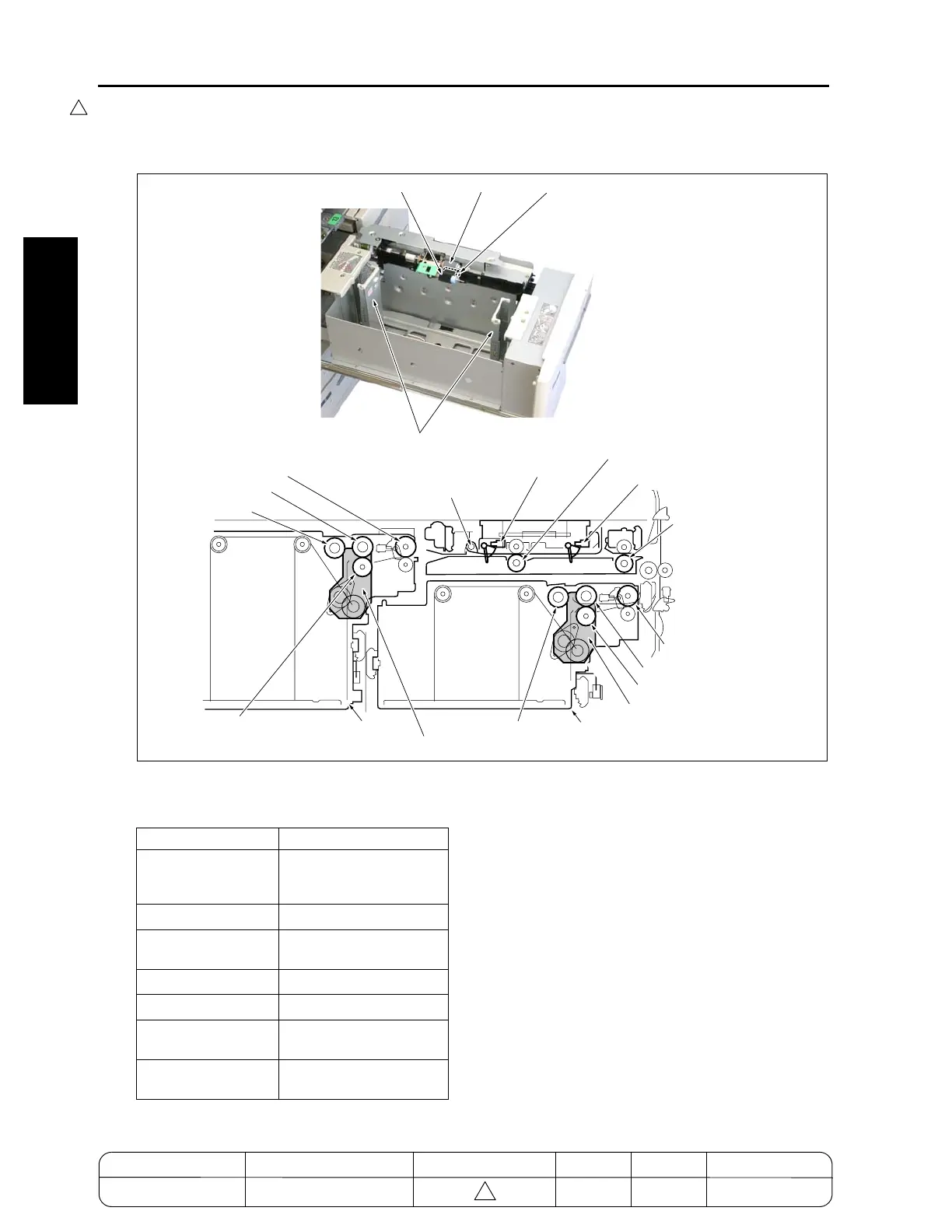

Double feed prevention rollerPaper feed rollerFeed roller
Side guide
Horizontal conveyance section
Horizontal conveyance PS/L (PS5)
Tray 1
Feed roller
Horizontal conveyance roller/L
Pre-registration roller
Paper feed roller
Feed roller
Double feed prevention roller
Tray up drive motor /1 (M16)
Horizontal conveyance
roller/R
Horizontal conveyance PS/R (PS6)
Pre - registration roller
Paper feed roller
Double feed prevention roller
Tray up drive motor /2(M17)
Tray 2
Mechanism Method
Paper lift-up *1 Up: Driven by wires
Down: Falls down by its
own weight
Tray loading Front loading
Double feed preven-
tion
Torque limiter
1st paper feed Paper feed roller
No paper detection Photosensor + Actuator
1st paper feed paper
loop mechanism*2
Photosensor + Actuator
+ clutch
Horizontal convey-
ance (Tray 1)
Horizontal conveyance
roller /L, /R
4
MODEL MANUAL REVISED EDITION DATE PAGE METHOD
SERVICE MANUAL Dec. 2003
7155/7165/7255/7272
2-J-8 ADDITION
