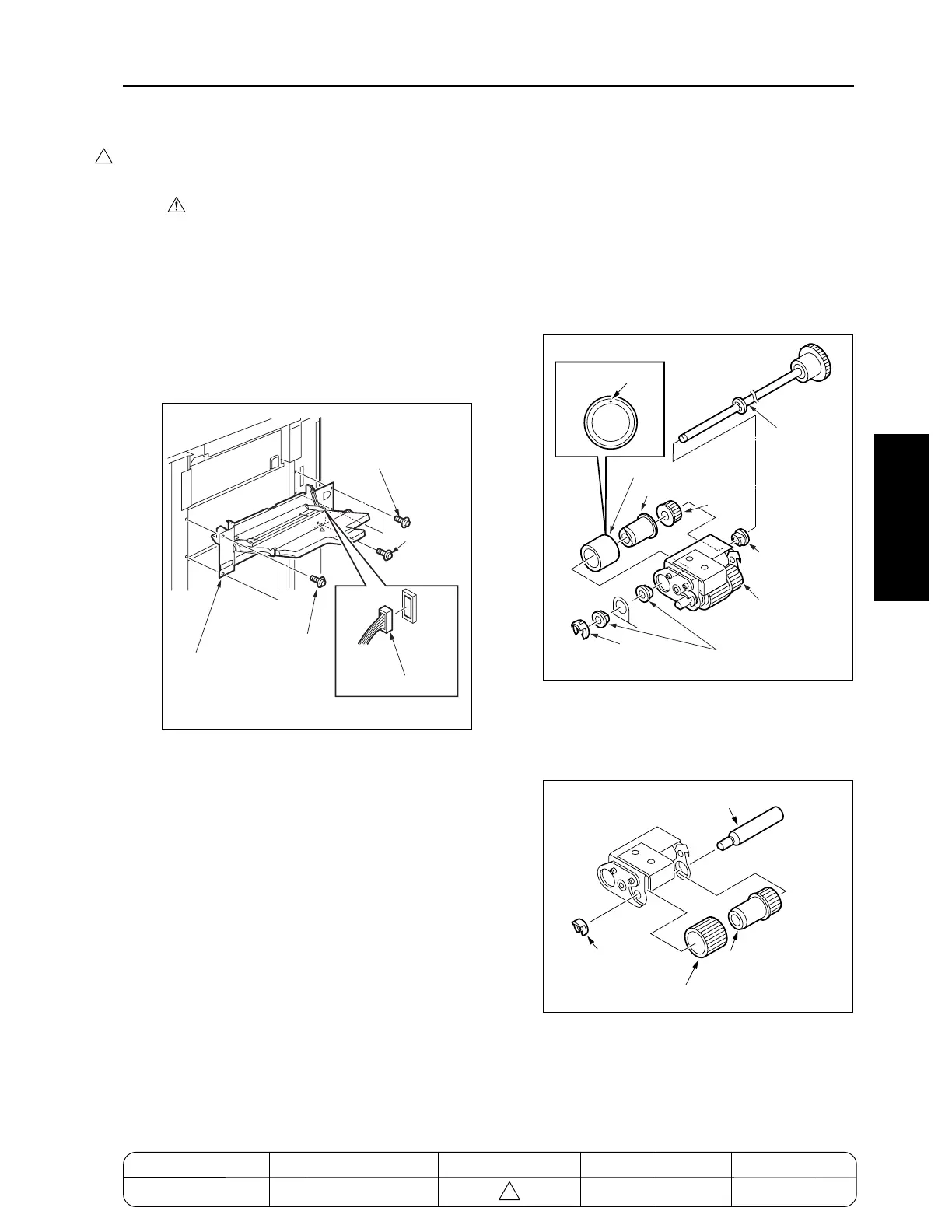

BYPASS FEED TRAY
3-L-1
3 DIS./ASSEMBLY
BYPASS FEED TRAY
[1] Removing and Reinstalling the
Bypass Feed Tray
Caution:
Be sure the power cord has been
unplugged from the wall outlet.
a. Procedure
(1) Remove the developing suction filter cover and
right side cover (upper). (See "EXTERNAL SEC-
TION.")
(2) Remove the connector (CN214).
(3) Remove five screws to remove the bypass feed
tray.
(4) Reinstall the above parts following the removal
steps in reverse.
[2] Replacing the Paper Feed Roller/
Paper Feed Roller Rubber
a. Procedure
(1) Remove the bypass feed tray.
(2) Remove the stop ring and bearing and pull out
the shaft from the paper feed roller.
(3) Remove the two bearings and one gear and
remove the paper feed roller rubber from the
paper feed roller.
(4) Remove the stop ring from the paper feed roller
assembly to pull out the shaft and remove the
paper feed roller rubber from the paper feed
roller.
(5) Reinstall the above parts following the removal
steps in reverse.
Caution1: Check that the orientation of the
roller is correct when installing.
Caution2: Check that no grease or the like
remains on the roller.
7272ma3021
Connector (CN214)
Screws (2)
Screws (2)
By-pass feed tray
Screw
Paper feed roller
Gear
Bearing
Stop ring Bearing
Paper feed roller
assembly
Paint mark
Shaft
Paper feed roller rubber
Shaft
Stop ring
Paper feed roller
Paper feed roller rubber
MODEL MANUAL REVISED EDITION DATE PAGE METHOD
SERVICE MANUAL Dec. 2003
7155/7165/7255/7272
3-L-1 REPLACEMENT
4
4
