PARTS LAYOUT DRAWING
5 ELECTRIC PARTS LIST
4

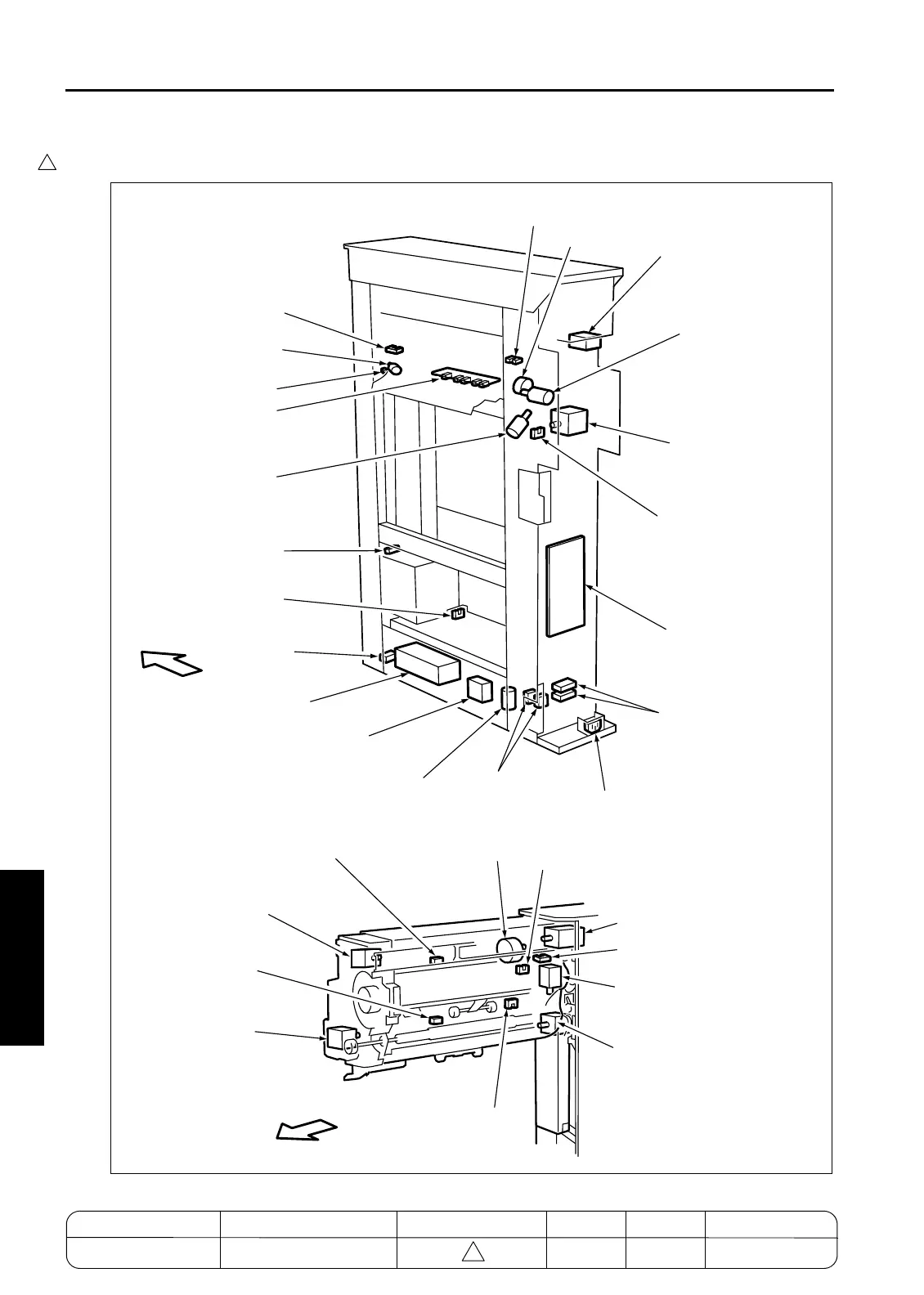

[7] PZ-108/PZ-109 Parts Layout Drawing
7272fs5032
Inlet
FRONT
FRONT
PS5 (for PZ-109)
Punch HP PS
PS1
Passage PS
M6
Conveyance motor
M10
Conveyance motor
cooling fan
SD1
Gate SD/L
MC1
Punch clutch
M4
Punch motor
M5
Punch shift motor
PS4
Puncher HP PS
M7
Punch scraps
conveyance motor
PZCB
PZ Control board
CBR
Circuit breaker
RELAY
Power source relay
NF
Noise filter
DCPS
DC power unit
PS6
Punch scraps box PS
PS7
Punch scraps full PS
Paper edge PS
MS1
Front door MS
PS8
Exit PS
SD2
Gate SD/U
M3
2nd stopper motor
COIL
Coil
M1
Registration motor
PS2
2nd stopper HP PS
PS9
Conveyance encoder PS
M2
1st stopper motor
PS3
1st stopper HP PS
MS2 (for PZ-109)
Punch switching MS
PS5 (for PZ-108)
Punch HP PS
M8 (for PZ-109)
Punch switching motor
MODEL MANUAL REVISED EDITION DATE PAGE METHOD
SERVICE MANUAL Dec. 2003
7155/7165/7255/7272
5-15-1 ADDITION
4
