EXTERNAL SECTION
3-A-8
3 DIS./ASSEMBLY
[5] Resetting the Circuit Breaker
Caution:
Be sure the power cord has been
unplugged from the wall outlet.
Caution:
Connection of cables to circuit breaker 1
and 2 (CBR1, 2) must not be changed.
a. Procedure
(1) Remove the rear cover.
(2) Remove two screws and loosen the circuit
breaker assembly.
(3) Turn over the circuit breaker assemblies and
press the reset button at the center of each circuit
breaker.
(4) Reinstall the above parts following the removal
steps in reverse.

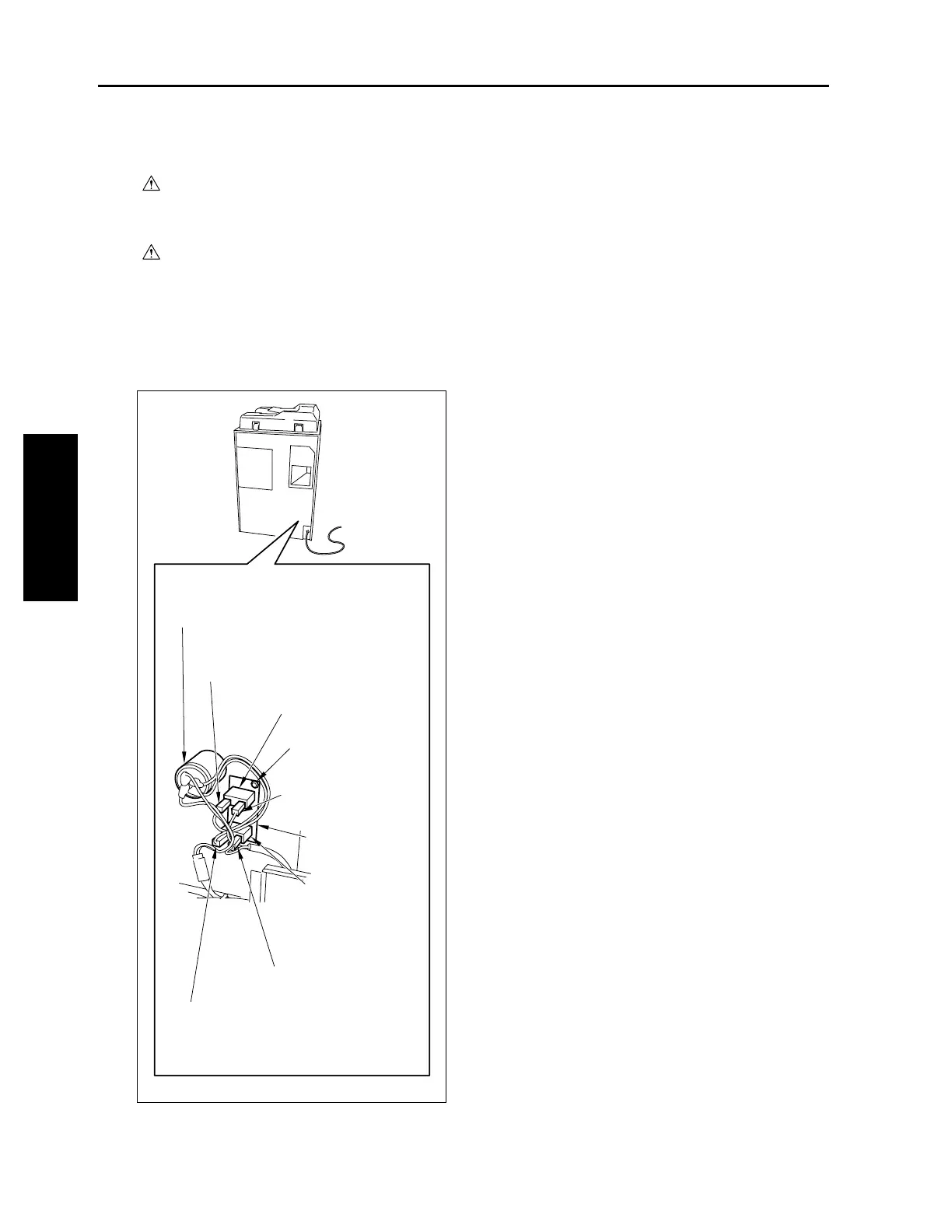

Noise filter (NF)
Circuit breaker 1 (CBR1)
Faston
(FT3: noise filter side/
black cable)
Screws (2)
Faston (FT1:
wall outlet side/
black cable)
Circuit breaker
assembly
Faston (FT4:
noise filter side/
white cable)
Circuit breaker 2
(CBR2)
Faston (FT2:
wall outlet side/
white cable)
