PAPER FEED UNITS OF TRAYS 1 AND 2 (7255/7272)
3-J-12
3 DIS./ASSEMBLY
[8] Replacing the Wires
Caution1: After replacing or reinstalling the wires, manually rotate the up/down drive shaft to check that the
tray moves up and down smoothly.
Caution2: Be sure to install the wires so that they do not cross or ride over each other.
Removing Wires
(1) Remove the paper feed unit.
(2) Remove two screws for each to remove the wire cover (front) and wire cover (rear).

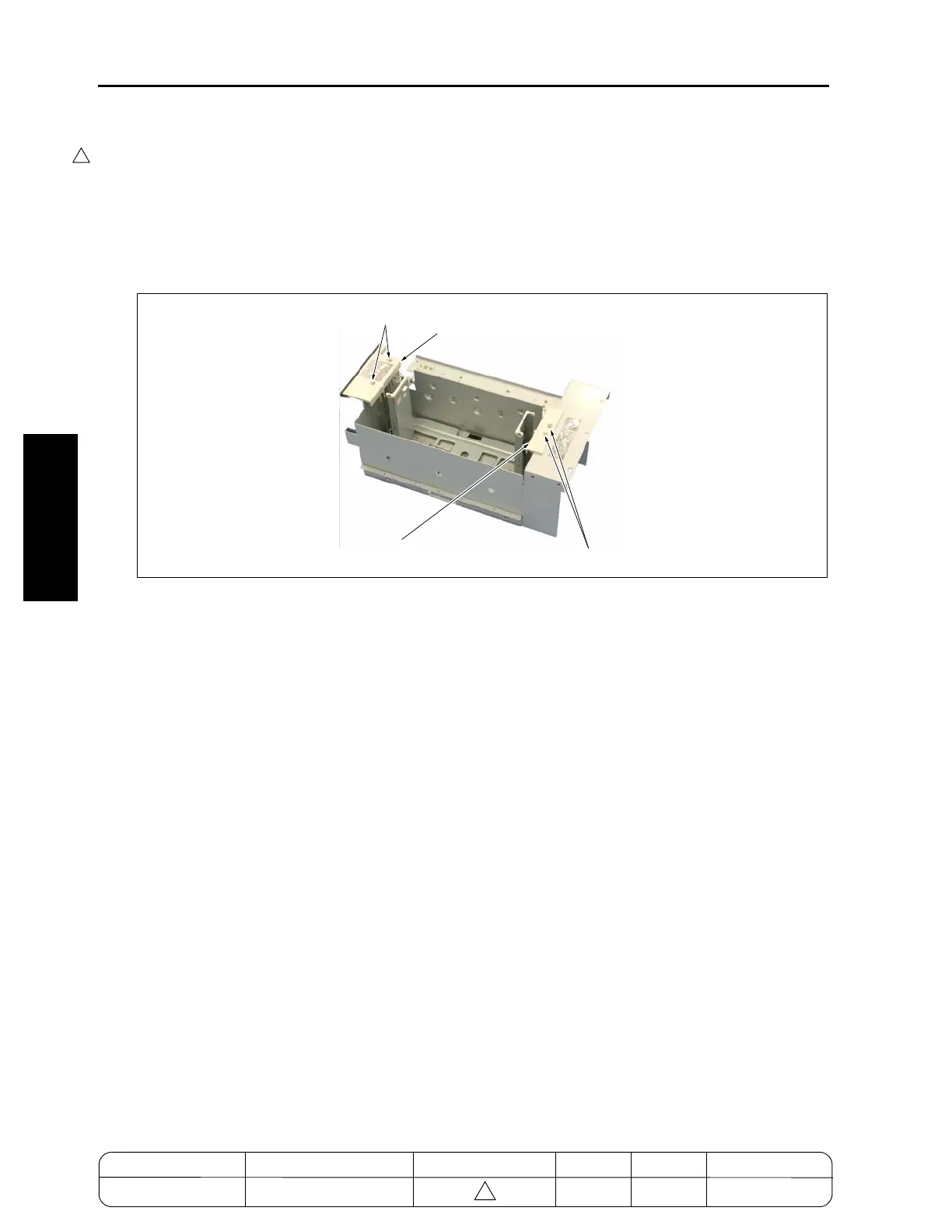

7272ma3016
Screws
Screws
Wire cover (rear)
Wire cover (front)
MODEL MANUAL REVISED EDITION DATE PAGE METHOD
SERVICE MANUAL Dec. 2003
7155/7165/7255/7272
3-J-12 ADDITION
4
4
