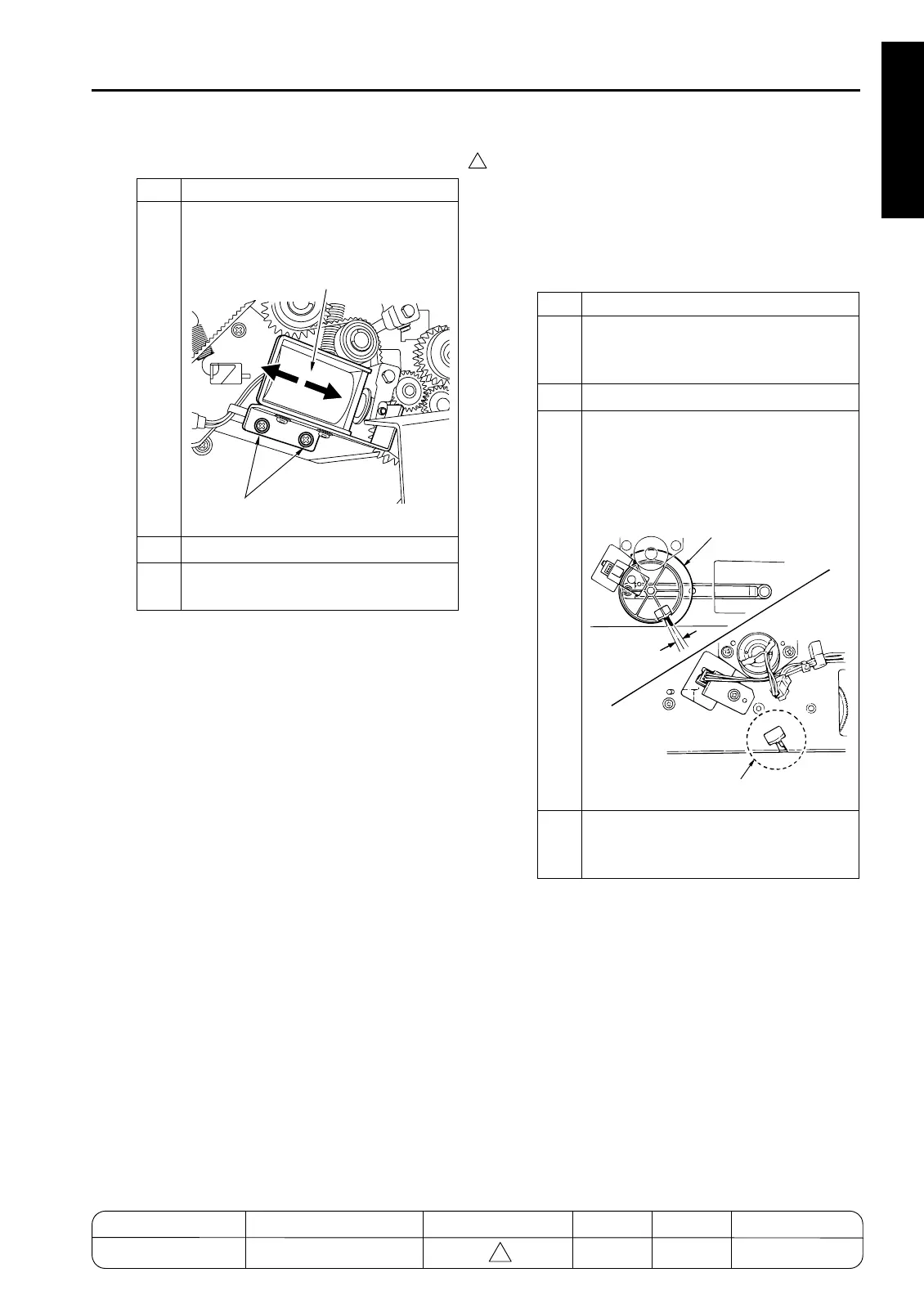

b. Adjustment
[39] FNS Adjusting the Shift Position
(FS-111)
1. Tool
• Screwdriver (Phillips)
2. Adjustment method
a. Preparation
Step Operation
1
Loosen the 2 set screws holding the
solenoid in place, and move the solenoid
as necessary to adjust.
2
Retighten the screws.
3
Reassemble in the opposite sequence
to removal.
7272fs1031
Screws
Solenoid
Step Operation
1
Remove the following parts.
• Rear cover
• Top cover
2
Switch the power OFF to ON to OFF.
3
With the M2 (roller shift) OFF (home
position), check that the actuator on
PS18 (roller shift HP) is correctly aligned
with the cutout on the shift-unit mounting
plate.
4
If the actuator is not correctly aligned
with the cutout, carry out adjustment as
described below.
7272fs1032
Actuator
Cutout on Mounting Plate
To Next Page
