PARTS LAYOUT DRAWING
5 ELECTRIC PARTS LIST
PARTS LAYOUT DRAWING

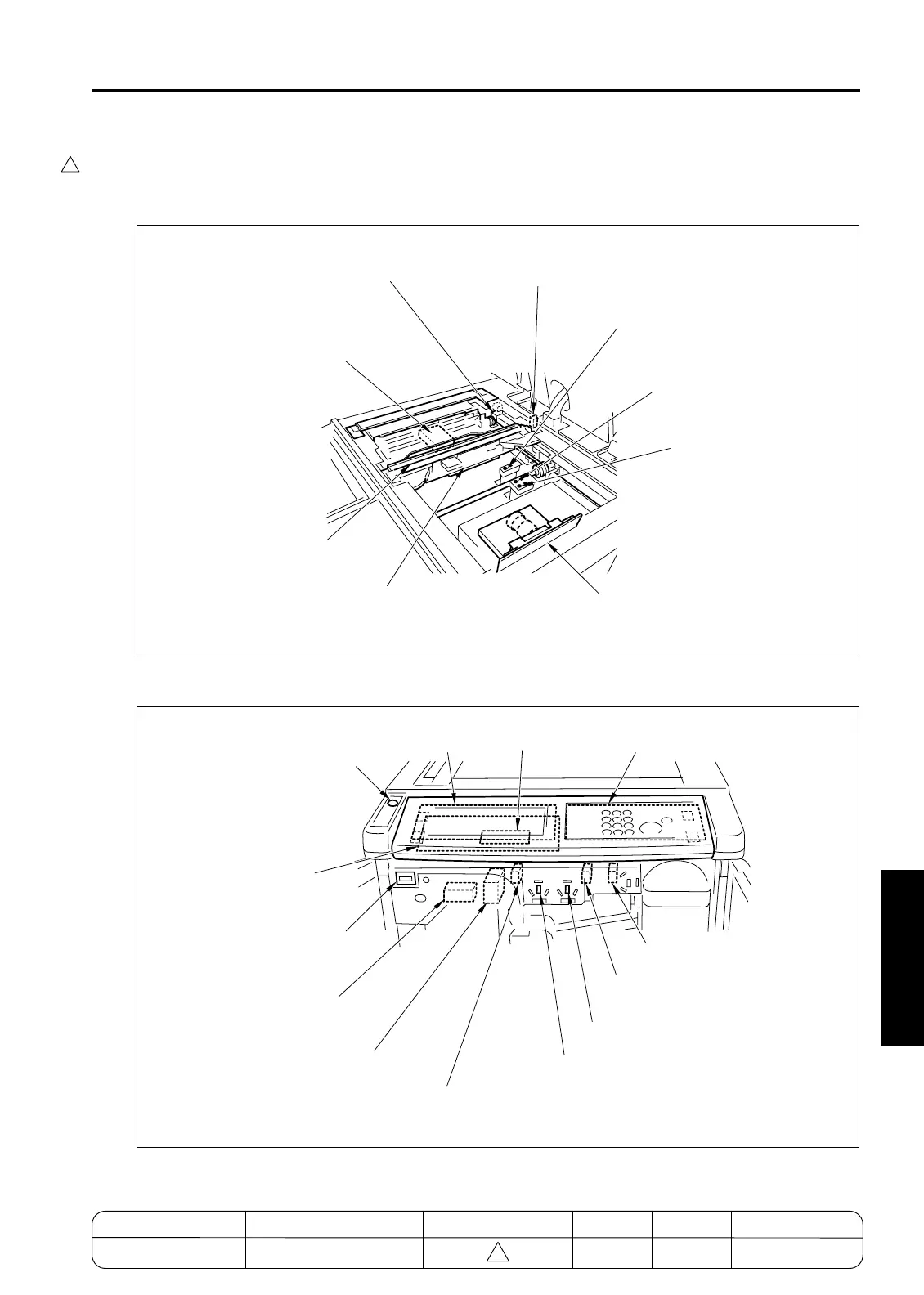

[1] 7155/7165/7255/7272 Parts Layout Drawing
1. Read Section
2. Operation Section
FM9
Scanner cooling fan
PS61
Scanner HP PS
PS51
APS timing PS
PS65
APS sensor/3
ADB
A/D converter board
L1 INVB
L1 converter
L1
Exposure lamp
PS63
APS sensor/1
PS64
APS sensor/2
SW2
Sub power switch
LCD
indicator board
OB INVB
OB inverter
OB1
Operation board/1
PS40
Toner supply door
open / close PS
MS2
Interlock MS/L
PS39
Front door open / close PS/L
FM5
Cleaner cooling fan
SD2
Web SD
C (T)
Total counter
PAKB
Panel key board
PS38
Front door open / close PS/R
MS1
Interlock MS/R
5-1
4
MODEL MANUAL REVISED EDITION DATE PAGE METHOD
SERVICE MANUAL Dec. 2003
7155/7165/7255/7272
5-1 REPLACEMENT
4
