ADU
2-N-13
2 UNIT EXPLANATION

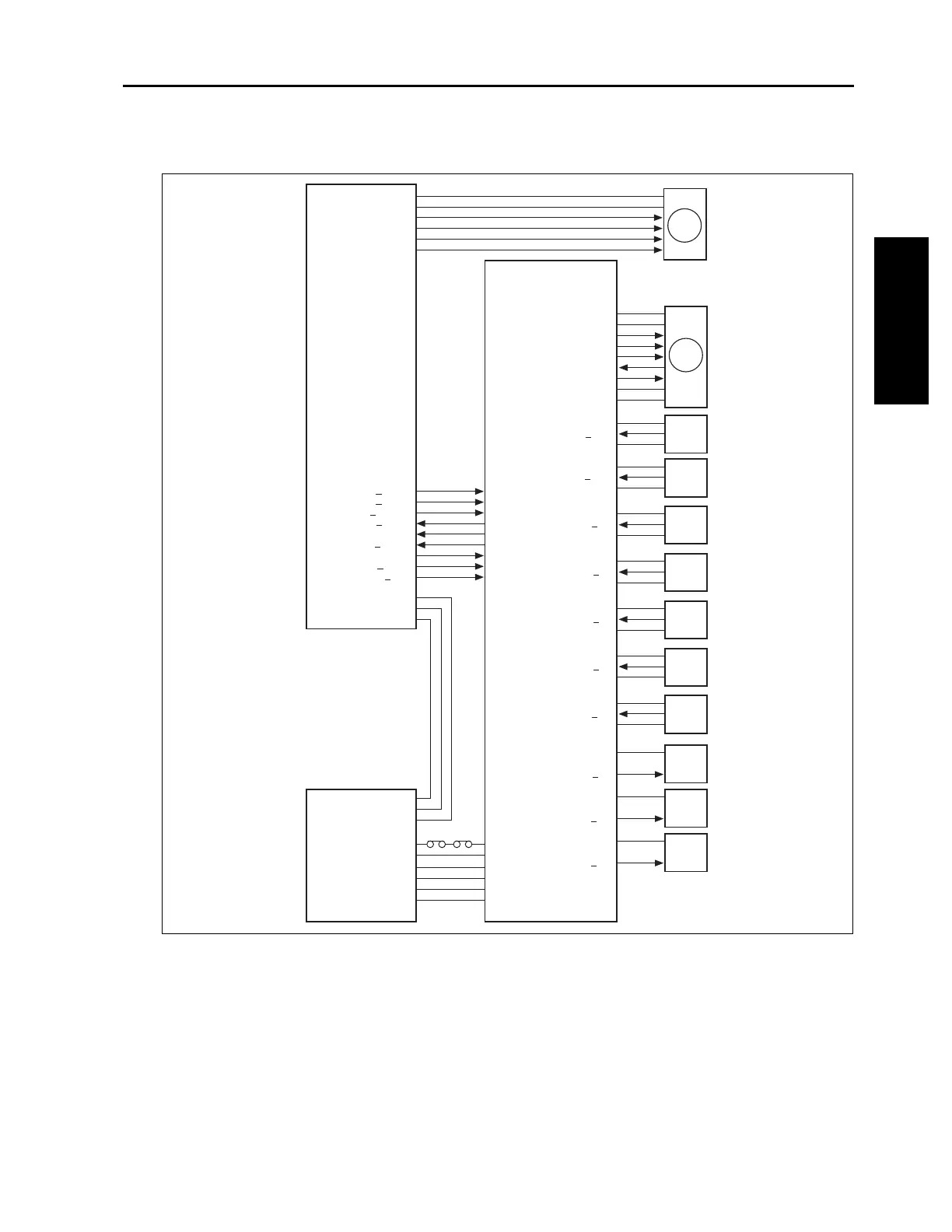

[6] ADU Paper Conveyance/Feed Control
The paper fed from the ADU paper reversal sec-
tion is fed by transmitting the drive force of M5
(conveyance) to ADU conveyance rollers 1 to 4.
Paper is then fed to the second paper feed sec-
tion by the drive force of M6 (loop roller). In the
ADU conveyance section, pre-loop control is per-
formed to correct paper skew forcibly. To perform
this control, MC2 (ADU deceleration) and MC13
(ADU conveyance) are provided. Related signals
are PS41 (ADU conveyance/1), PS45 (ADU
paper reverse), PS46 (reverse/exit), PS48 (ADU
paper conveyance/2), PS49 (ADU deceleration),
and PS50 (ADU pre-registration). SD9 (ADU
lock) is provided to lock the handle of the ADU.
ADUDB
M5
M6
24V
24V
A
/A
B
/B
MC24V
LOCK SD
5V2
ADUEXIT PS
S.GND
PRCB
IO DTXD
IO DCLK
ADU LATCH
IO UCLK
REQ1
IO URXD
ACK1
ERR OUT1
2NDM CLK
PS50
SD9
MC24V
ADUCR MC
MC13
MC24V
ADUDN MC
MC2
5V2
ADUDN PS
S.GND
PS49
5V2
ADUCR PS
S.GND
PS48
5V2
HD PS
S.GND
5V2
REV PS
S.GND
PS47
5V2
ADU REV
S.GND
PS46
PS45
5V2
ADU JAM
S.GND
PS41
DCPS
24V1
5V2
S.GND
P.GND
5V2
24V1
S.GND
24V2
P.GND
MS1
MS2
+5V
PGND
START/STOP
CLK
CW/CCW
LD
H/L
PGND
+24V
