Konica Minolta 7155 User Manual

PARTS LAYOUT DRAWING
5 ELECTRIC PARTS LIST
4

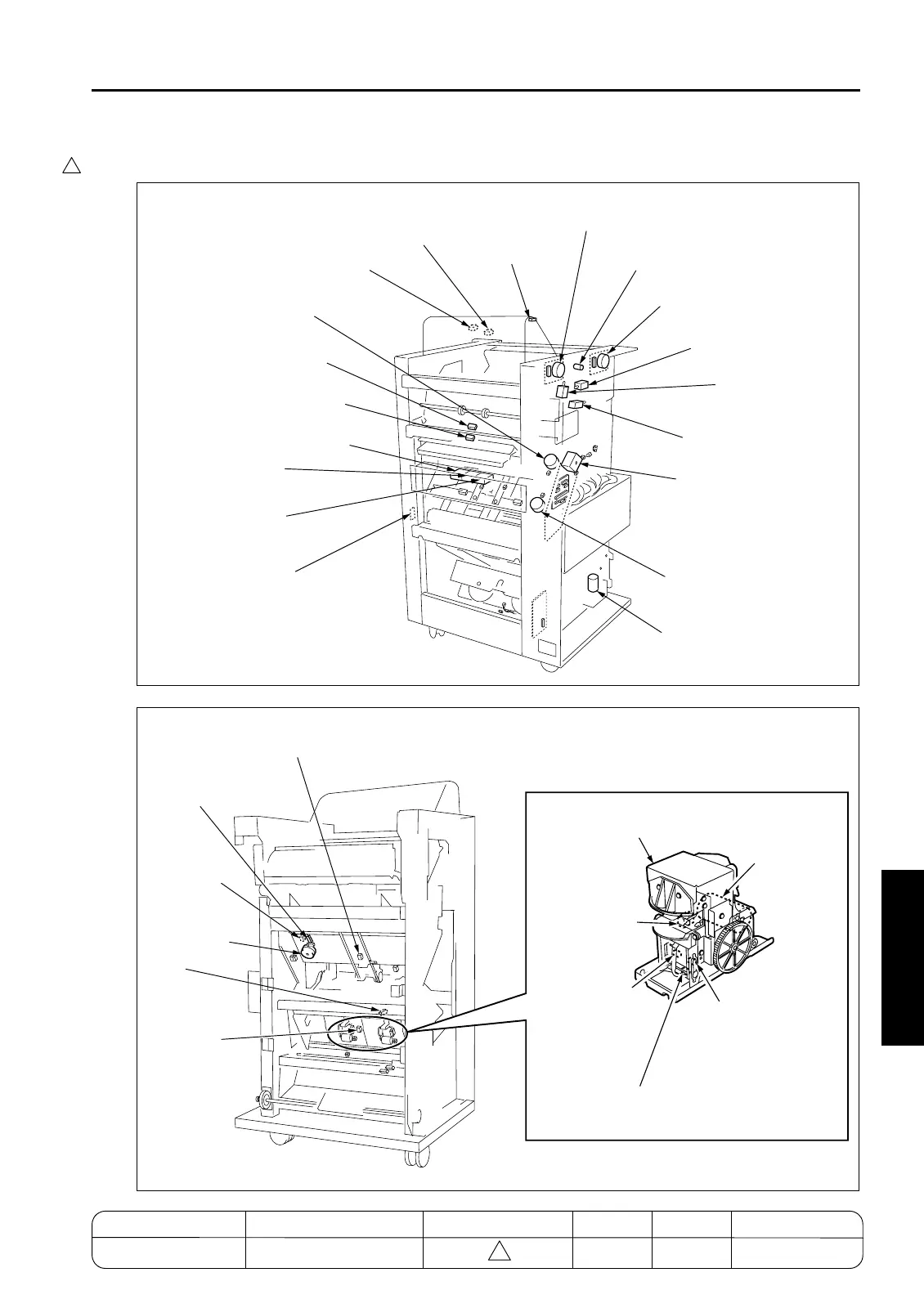

[8] FS-111 Parts Layout Drawing
7272fs5022
M3
Tray up/down motor
M4
Stapler rotation motor
M13
Stacker entrance motor
SD5
By-pass solenoid
SD2
Sub-tray paper exit
solenoid
SD1
Gate solenoid
M7
Paper exit-roller motor
M8
Paper exit-opening motor
M1
FNS conveyance motor
PS207
Paper exit-cover
open/close
detection PS
MS1
Interlock
FM3
Cooling FAN 3
FM2
Cooling FAN 2
FM1
Cooling FAN 1
PS1
Sub-tray paper
exit PS
M11
Stapler-movement motor
PS4
FIN entrance passage PS
PS13
Entrance paper detection PS
PS50
Sub-tray full PS
7272fs5023
M5
Alignment-plate/
upper motor
PS9
Paper exit-
belt HP PS
PS8
Alignment-plate/
upper HP PS
PS20
Stacker no-paper detection PS
PS11
Stapler-
movement
HP PS
PS14
Stapler-
rotation
HP PS
M24
Stapler motor/F
M22
Stapler motor/R
Stapler (F, R)
PS37
Staple detection
PS/F
PS40
Staple detection
PS/R
PS36
Cartridge detection
PS/F
PS39
Cartridge detection
PS/R
PS38
Stapler ready PS/F
PS41
Stapler ready PS/R
PS34
Stapler HP PS/F
PS31
Stapler HP PS/R
MODEL MANUAL REVISED EDITION DATE PAGE METHOD
SERVICE MANUAL Dec. 2003
7155/7165/7255/7272
5-15-2 ADDITION
4
