ADU UNIT
3-N-6
3 DIS./ASSEMBLY
[5] Removing and Reinstalling the
Second Paper Feed Unit
Warning:
The interlock which is turned OFF when
the front right or left door opens or closes
should never be turned ON forcibly with
the ADU stand drawn out.
Caution:
Be sure the power cord has been
unplugged from the wall outlet.
a. Procedure
(1) Draw out the ADU stand from the main body.
(2) Detach the ADU cover.
(3) Disconnect the two relay connectors (CN420,
422), and disconnect the relay connector from
the wiring harness.
Caution: Each relay connector consists of two
male sides and one female side. Be
sure to remove only the male side
(shown below) of the connector.

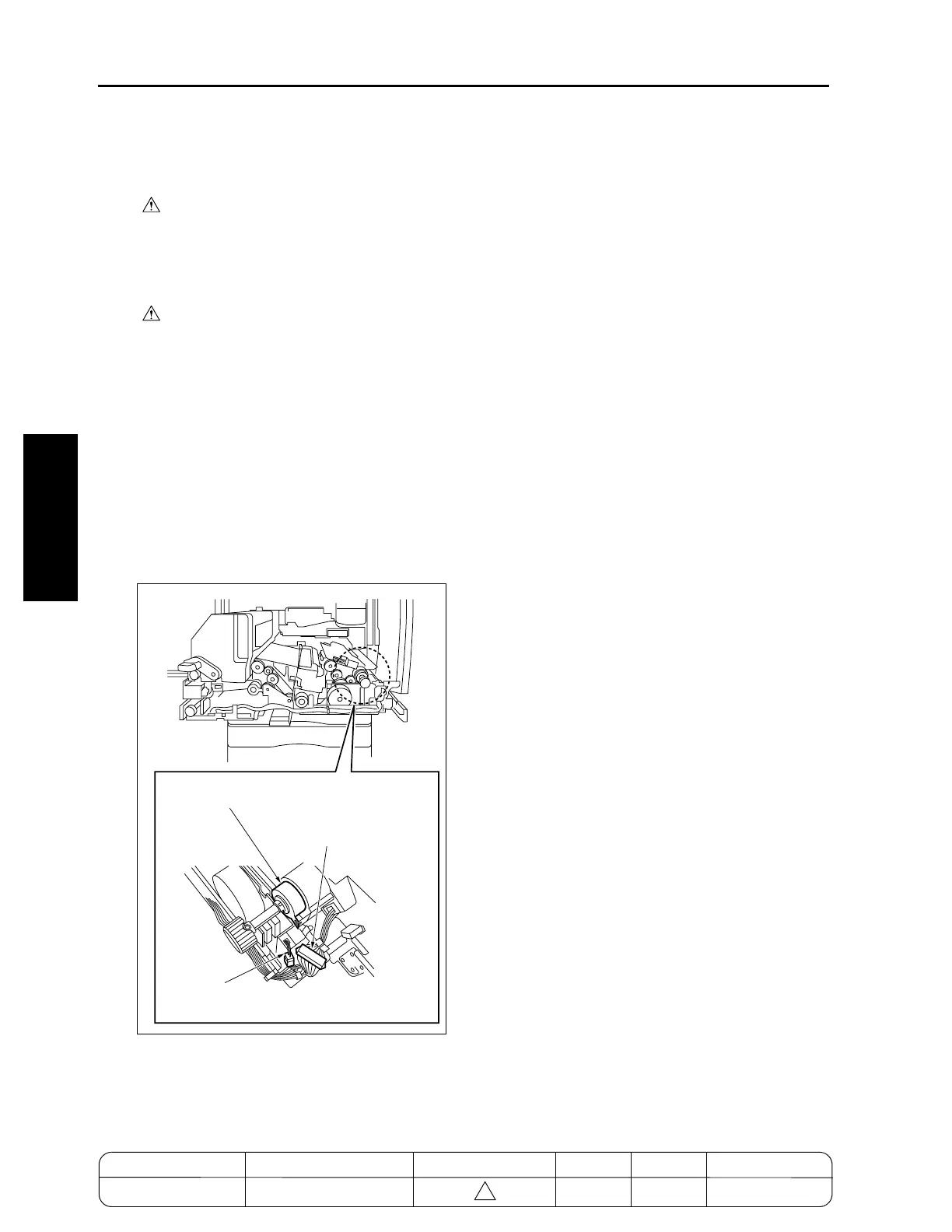

Registration MC (MC1)
Relay connector (CN422)
Relay connector (CN420)
MODEL MANUAL REVISED EDITION DATE PAGE METHOD
SERVICE MANUAL Dec. 2003
7155/7165/7255/7272
3-N-3-1 ADDITION
4
To Next Page
