ADU UNIT
3-N-1
3 DIS./ASSEMBLY
ADU UNIT

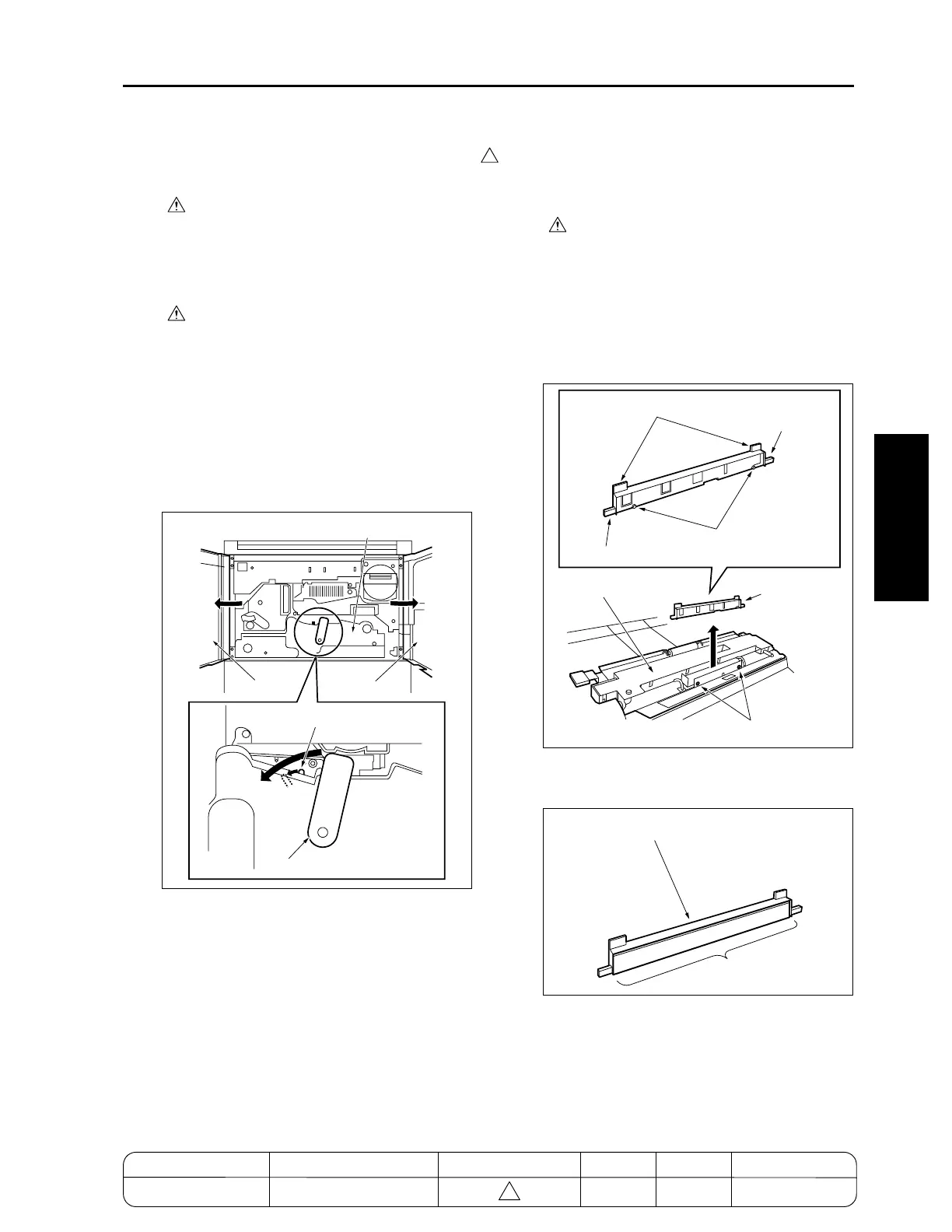

[1] Drawing Out and Reinstalling the
ADU Stand
Warning:
The interlock which is turned OFF when
the front right or left door opens or closes
should never be turned ON forcibly with
the ADU stand drawn out.
Caution:
Be sure the power cord has been
unplugged from the wall outlet.
a. Procedure
(1) Open the front right and left doors.
(2) With the solenoid release lever on the ADU stand
pushed to the left, turn down the ADU drawing
lever to the left.
(3) Grip the ADU stand drawing lever and draw out
the ADU stand.
(4) To reinstall the ADU stand, push in the ADU
stand and then turn the ADU stand drawing lever
upright.
[2] Cleaning the Paper Dust Removing
Brush
In the case of the 7155/7165
Caution:
Be sure the power cord has been
unplugged from the wall outlet.
a. Procedure
(1) Draw out the ADU stand from the main body.
(2) Release the left and right lock levers, lift the
brush handles by the handles to remove the
paper dust removing brush.
(3) Using a blower brush, clean the paper dust
removing brush.
(4) Reinstall the above parts following the removal
steps in reverse.
Caution: When installing, align the projection
on the paper dust removing brush with
the positioning hole on the second
paper feed unit.
ADU stand
Left door
Right door
Solenoid release lever
ADU stand drawing lever
Positioning holes
Brush handles
Lock lever
Projections
Lock lever
Second paper feed unit
Paper dust
removing
brush
Paper dust removing brush
Cleaning area
4
MODEL MANUAL REVISED EDITION DATE PAGE METHOD
SERVICE MANUAL Dec. 2003
7155/7165/7255/7272
3-N-1 REPLACEMENT
4
