1 OUTLINE

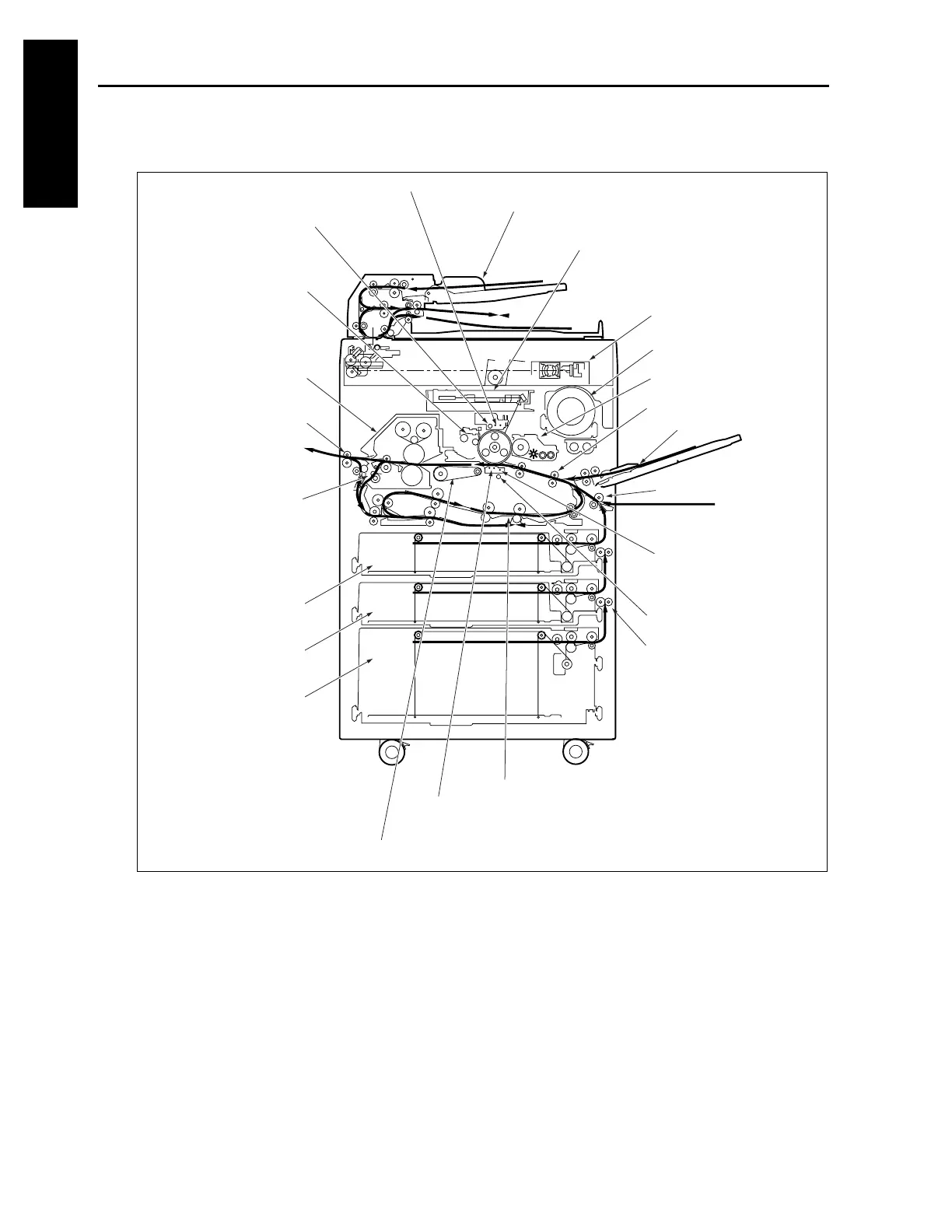

CENTRAL CROSS-SECTIONAL VIEW
In the case of the 7155/7165
Charging corona section
Image write section
Cleaning section
PCL
TSL
Toner supply section
Fixing section
Developing section
Image read section
RADF(DF-316)
Second paper feed section
Paper exit section
Bypass tray
Paper reverse exit section
Loop roller
Transfer corona section
Tray 1
Tray 2
Tray 3
Vertical conveyance section
ADU
Paper conveyance section
Separation corona section
