TIMING CHART
5 ELECTRIC PARTS LIST
4

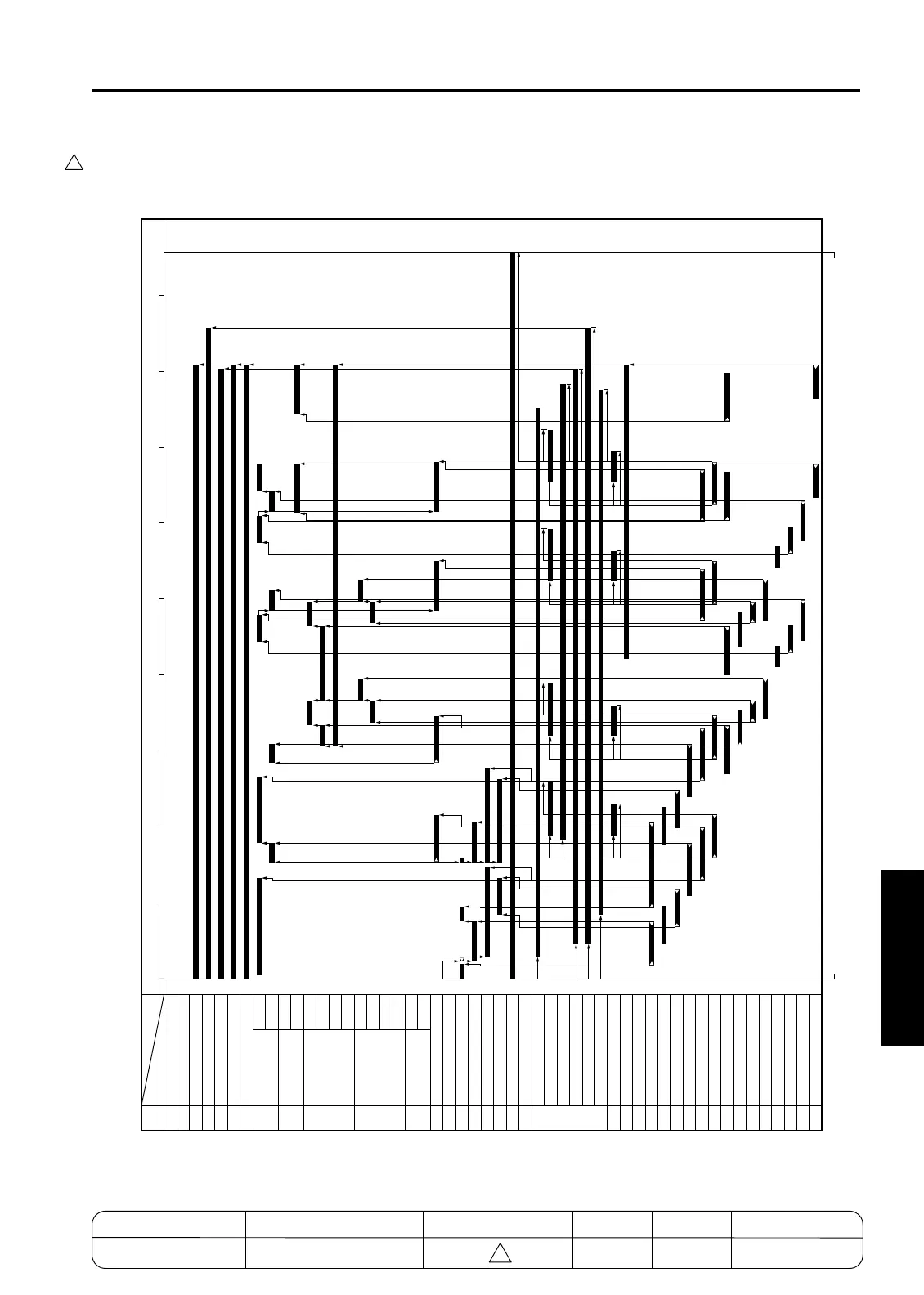

[4] 7272 Timing Chart (2)
A4, life size, 1-2 mode, Tray1, 2 sets
MODEL MANUAL REVISED EDITION DATE PAGE METHOD
SERVICE MANUAL Dec. 2003
7155/7165/7255/7272
5-49-2 ADDITION
4
7272fs5020
M3
H
L
H
L
F
R
M1 M2 M4 M5 M6
PS1
PS36
M7 M8 M9
MC1 MC2 MC3 MC4
MC15 MC16
PCL SD1 SD7
HV
H
L
PS44
PS5 PS6
PS43 PS30 PS42 PS46 PS45 PS48 PS49 PS50 PS37
0 1 2 3 4 6 7 8 95
(sec)
START button ON Stop print
H
L
F
M11
F
R R
Items
Time (sec)
Symbol
Developing motor Paper feed motor Drum motor Fixing motor Conveyance motor Loop roller motor Paper feed PS/1 Loop PS Paper exit motor Reverse/exit motor ADU reverse motor Registration MC ADU deceleration MC Paper feed MC/1 Pre-registration MC/1 Horizontal conveyance MC/L Horizontal conveyance MC/R Pre-charging exposure lamp Separation claw SD Reverse gate SD Charge Transfer Separation Developing bias Paper guide plate Toner guide roller Registration PS Horizontal conveyance PS/L Horizontal conveyance PS/R Leading edge PS Fixing exit PS Paper reverse PS Reversed/exit PS6 ADU paper reverse PS ADU paper conveyance PS/2 ADU deceleration PS ADU pre-registration PS Paper exit PS Scanner motor
