EXTERNAL SECTION
3-A-4
3 DIS./ASSEMBLY
[3] Removing and Reinstalling the
External Covers
Caution:
Be sure the power cord has been
unplugged from the wall outlet.
a. Procedure

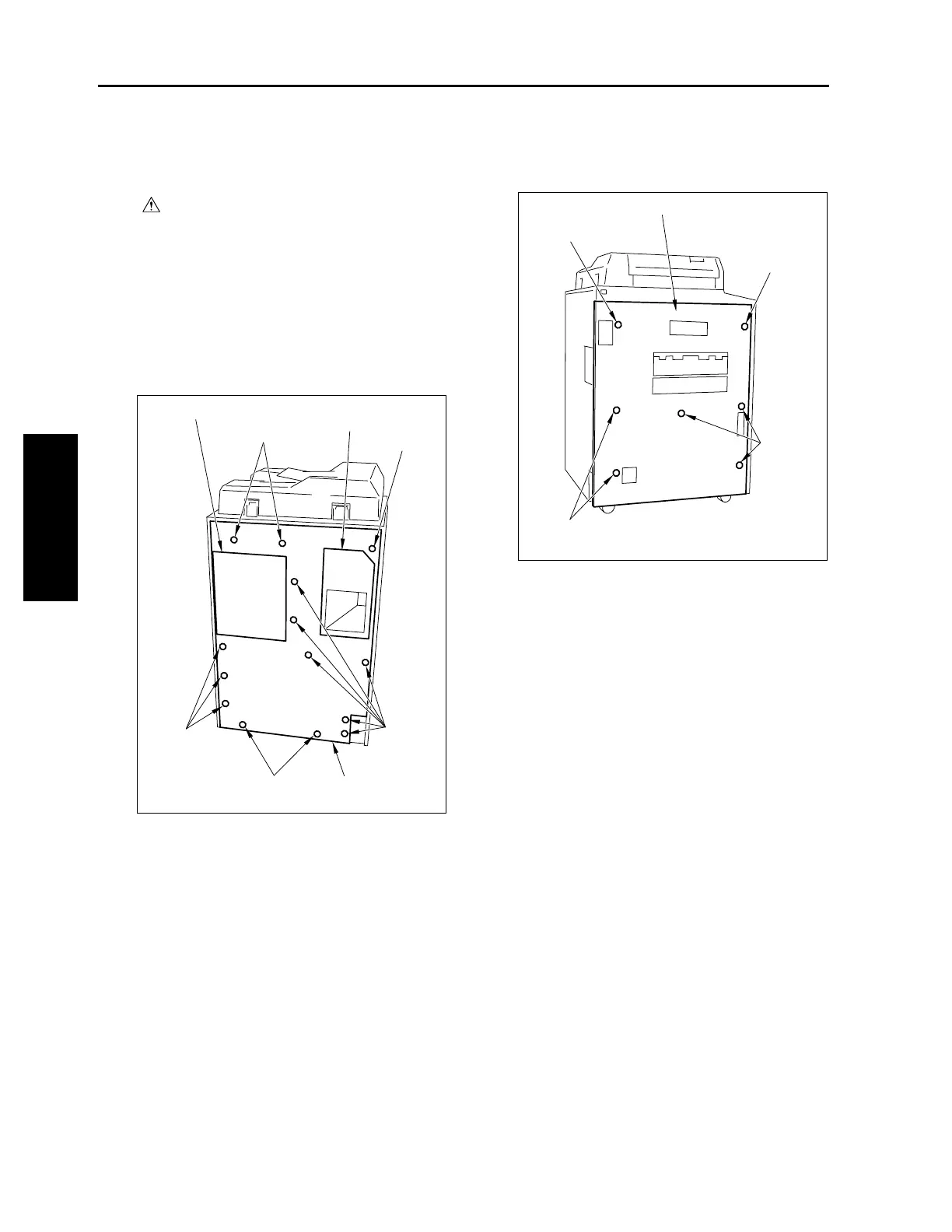

(1) Remove fourteen screws to detach the rear
cover.
Caution: The ozone filter cover and the option
cover detach together with the rear
cover.
(2) Remove seven screws to detach the left side
cover.
Option cover
Screws
Screws
Screws
Screw
Screws
Ozone filter cover
Rear cover
Screw
Screws
Screws
Screw
Left side cover
